Installation Time
(approx) 2 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Lowering Kits for your Sierra 1500
Belltech Performance Lowering Kit with Height Adjustable Front Coil-Overs; 2 to 4-Inch Front / 6-Inch Rear (19-21 4WD Sierra 1500 w/ 5.80-Foot Short Box)Find parts that fit my vehicle
Item S541887
Our Price
$2,253.00 kit
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Advanced Performance
- Improved Handling
- Enhanced Style
- Front Height Adjustment Of -2” To -4”
- Rear Lowering Of -6”
- Sturdy Drop Spindle Set Retains Factory Suspension Geometry
- High-Strength Ductile Iron Construction
- Powder-Coated Finish
- Fine-Tuned Threaded Dampers With 2.4” Damper Body
- 35mm Independent Rebound And Compression Valves
- External Threads And Durable Spring Perch For Height Adjustment From -1” To -3”
- Large Main Spring And Smaller Helper Spring Made Of Cold-Formed Tensile Steel
- Progressive Rate Polymer Open-Cell Bump Stop Included
- OEM Top Mounts Utilized For Simplified Installation
- Rear Street Performance 2” Shocks With Factory Preset Damping
- Flip Kit And C-Notch Included For Rear Lowering
- High-Quality Bolt-On Components In Flip Kit
- Maximum Frame Rigidity And Axle Clearance With C-Notch Kit
- Reduced Body Roll And Lowered Center Of Gravity
- Easy Installation
- Not Compatible With Mono-Leaf Suspension
- Fits 19-21 4WD Sierra 1500 w/ 5.80-Foot Short Box
| Brand | Belltech |
| Lowering Kit Includes Shocks | Shocks Included |
| Lowering Kit Estimated Drop | 4.0F / 6.0R |
Description
Performance Handling Upgrade. The Belltech Street Performance Coilover Kit is engineered to significantly improve the handling and style of your truck. By replacing the original suspension with height-adjustable front coilovers and rear shock absorbers, this kit delivers enhanced ride quality and a lowered stance, boosting both appearance and driving performance.
Construction and Appearance. Crafted from high-strength ductile iron and cold-formed tensile steel, the components offer excellent durability and long service life. All metal parts feature a powder-coated finish to resist rust and wear. The coilovers incorporate precision-engineered dampers with large diameter bodies and independent rebound and compression valves to ensure consistent suspension performance.
Installation. The kit installs easily using OEM top mounts and includes bolt-on hardware with engineered drop spindles that maintain factory suspension geometry—no drilling required.
Application. Designed to fit the 19-21 4WD Sierra 1500 with a 5.80-foot short box, this kit is not compatible with mono-leaf suspension setups.
Belltech 1041SPC
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

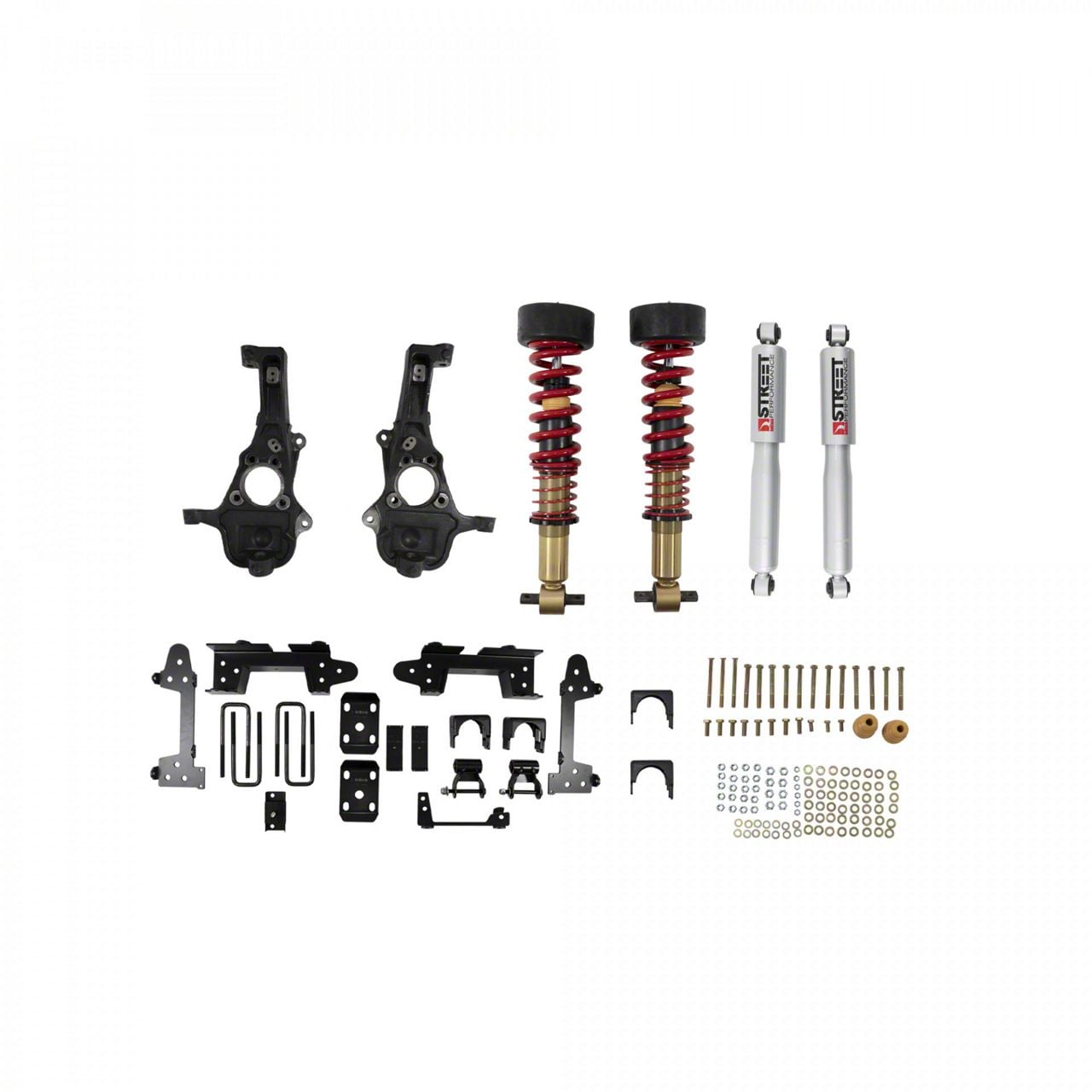

What's in the Box
- (2) Two-Inch Drop Spindles
- (2) Front Street Performance Adjustable Coilovers
- Axle Saddles, U-bolts, Plates
- C-Section
- Transmission mount
- Crossmember Notch
- Shackles
- Grade 8 Hardware
- Installation Instructions
- Rear Street Performance Shocks
4.6
Reviews of Belltech Suspension Products (405)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 2.7L I4 - 19, 20, 21
- 3.0L I6 Duramax - 20, 21
- 4.3L V6 - 19, 20, 21
- 5.3L V8 - 19, 20, 21
- 6.2L V8 - 19, 20, 21
