BDS 3.50-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks (19-23 4WD Ranger w/ Factory Cast Aluminum Knuckles)Find parts that fit my vehicle

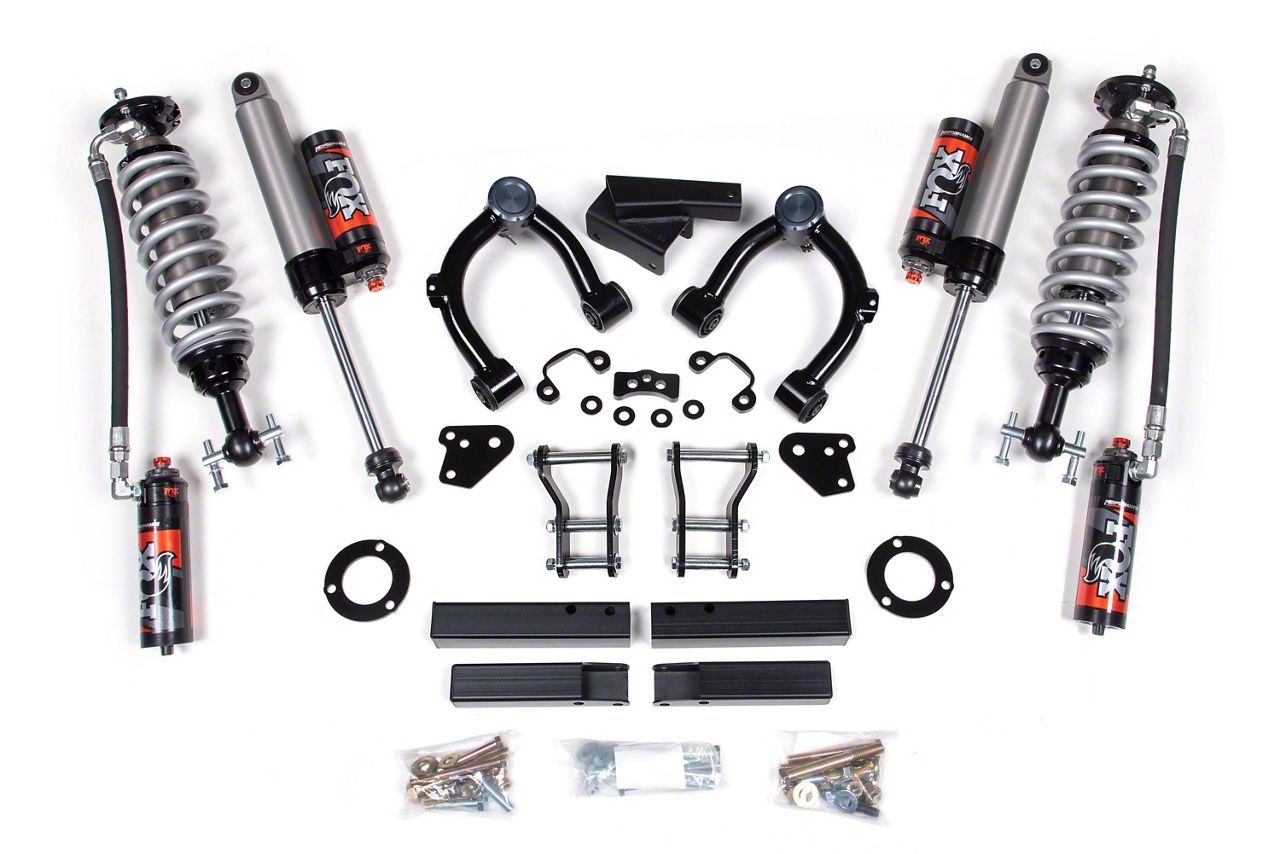

Name: BDS 3.50-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks (19-23 4WD Ranger w/ Factory Cast Aluminum Knuckles)
Brand: BDS
SKU: FR58305
Price: 5284.80 USD
Availability: InStock

Item FR58305

Our Price

-0% $5,284.80 Was $5,284.80

Military, Medical & First Responders $264.24 Available in AT Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A, Specs & Installation

Features & Specs

3.5 Inch Front Lift Height
Coil-Over Front Lift Method
1.5 Inch Outer Diameter By .120 Wall Thickness Tubular Upper Control Arms
Includes Performance Upper Control Arms With Indexed Ball Joint Cup For Additional Down Travel And Camber Adjustment
Maintenance-Free Frame Mounts With Durometer-Specific Rubber Bushings
Greaseable Ball Joints On Control Arms
Top Mounted Strut Spacers To Provide Lift
Differential Relocation Brackets To Correct CV Axle Angle And Allow Factory Skid Plate Use
Heavy Duty Steering Knuckles To Correct Steering Geometry And Maintain ESC Compatibility
Rear Lift Blocks And U-Bolts For Rear Lift Height Of 1.5 Inches
Custom-Tuned FOX 2.5 Rear Shocks Included With DSC Dual Speed Compression Adjuster
Rear Heavy Duty Lift Shackles
Recommended Tires 285/65R18 And 305/55R20 With Proper Wheel Backspace
Cast Aluminum Factory Knuckles Required
Excludes Tremor Models And Cast Steel Knuckle Factory Configurations
Does Not Fit Trucks Equipped With Cast Steel Steering Knuckles
Fits 19-23 4WD Ranger w/ Factory Cast Aluminum Knuckles

Brand

BDS

Lift Height

3.50 Inch

Lift Kit Type

Coilover Lift

Lift Kit Max Tire Size

33 Inch

Brand of Shocks

Fox

Rear Lift Type

Spacer

Shock Style

Reservoir

Description

Performance Suspension Upgrade. The BDS 3.50-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks significantly enhances ground clearance and off-road capability for the Ford Ranger. Designed to provide increased suspension travel and superior terrain absorption, this kit improves vehicle control on rugged landscapes while maintaining comfortable on-road handling.

Construction and Appearance. The kit features high-strength tubular upper control arms constructed from 1.5-inch outer diameter, .120-inch wall thickness steel, powder coated for durability and corrosion resistance. FOX rear shocks use 2.5-inch extruded aluminum bodies with hard chrome plated shafts. The kit also includes heavy-duty steel components such as steering knuckles and strut spacers finished with durable coatings.

Installation. This moderate difficulty installation requires specialty tools including a 35mm axle nut socket and air hammer, with some drilling and cutting recommended. Comprehensive installation guides are provided to assist in proper setup.

Warranty. The FOX 2.5 Performance Elite shocks included come with a 1-year manufacturer’s warranty, ensuring reliable performance and serviceability.

Application. Specifically engineered to fit 2019-2023 Ford Ranger 4WD models equipped with factory cast aluminum knuckles. This kit does not fit Tremor models or trucks with cast steel steering knuckles.

BDS BDS1587FPE
