Find Transmission & Transfer Case for your Ram 2500

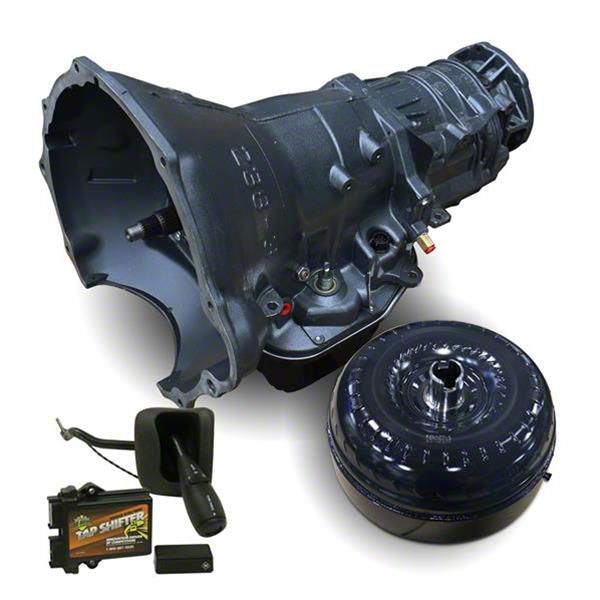

BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft, ProForce Converter and Tapshifter; $2500 Core Charge Included (05-07 4WD 5.9L RAM 2500)Find parts that fit my vehicle
Item HR29266
Our Price
$8,974.95 kit
Military, Medical & First Responders
$448.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Upgraded Valvebody _x000D_
- Upgraded Governor Solenoid _x000D_
- Upgraded Governor Pressure Transducer (47RE/48RE) With Twice The Burst Pressure Than Stock _x000D_
- Increased Line Pressure To 190-200psi _x000D_
- No Shuttle Shifting Problems _x000D_
- Modified Manual Valve For Lube In All Positions _x000D_
- Stock Thrust Bushings Replaced With Roller Torrington Bearings _x000D_
- Clutch Count: Direct 6 _x000D_
- Clutch Count: Forward 5 _x000D_
- Clutch Count: OD 6 _x000D_
- Clutch Count: OD Direct 10 _x000D_
- High Temp/Energy Raybestos Band _x000D_
- Billet Band Lever _x000D_
- Billet Band Strut _x000D_
- Drilled Intermediate Shaft For Increased Lubrication _x000D_
- Rigid Aluminum Heavy Duty Transmission Pan With 2qt Extra Oil Capacity _x000D_
- Pan Heat-Dissipating Fins To Keep Temperature Down _x000D_
- Magnetic Drain Plug _x000D_
- Increase The Durability Of Your Drivetrain _x000D_
- Auxiliary Full Flow Filter Kit For Extra Protection _x000D_
- Cooler Line Case Saver Included _x000D_
- Every Transmission Is Tested On A Dyno _x000D_
- Not Warranted For Race Or Sled Pull Use _x000D_
- Torque Converter With Enhanced Stall For Street/Towing Applications _x000D_
- Torque Multiplying Cast Aluminum Stators _x000D_
- Lower RPM Response Than The Stock Converter _x000D_
- More Efficient Operation _x000D_
- Less Heat And Better Fuel Economy _x000D_
- Stamp-Forged Steel Front Cover _x000D_
- Furnace-Brazed Fins _x000D_
- Up To Triple The Amount Of Lock-Up Clutch Material _x000D_
- Fits 05-07 4WD 5.9L RAM 2500 _x000D_
Description
Complete Transmission Package. The BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft, ProForce Converter and Tapshifter; $2500 Core Charge Included is a fully matched and dyno-tested set designed for ultimate performance and durability in demanding diesel truck applications. It is engineered to handle the power and torque of upgraded diesel engines while providing reliable street and towing functionality.
_x000D__x000D_Construction and Appearance. This transmission features upgraded internal components including an upgraded valve body, upgraded governor solenoid, upgraded governor pressure transducer with twice the burst pressure of stock (47RE/48RE), and increased line pressure to 190-200psi. It has a modified manual valve for lubrication in all positions, roller Torrington bearings replacing stock thrust bushings, and clutch counts of Direct 6, Forward 5, OD 6, and OD Direct 10. Additional upgrades include a high temperature Energy Raybestos band, billet band lever, billet band strut, a drilled intermediate shaft for increased lubrication, and a rigid aluminum heavy duty transmission pan with 2-quart extra oil capacity. The pan incorporates heat-dissipating fins to reduce temperature and a magnetic drain plug for enhanced maintenance. Also included is an auxiliary full flow filter kit for extra protection and a cooler line case saver. Every transmission is tested on a dyno to ensure quality and performance.
_x000D__x000D_The torque converter features enhanced stall characteristics optimized for street and towing applications, torque multiplying cast aluminum stators, lower RPM response than stock converters, and more efficient operation resulting in less heat generation and better fuel economy. Its construction includes a stamp-forged steel front cover and furnace-brazed fins, and it contains up to triple the amount of lock-up clutch material for increased durability.
_x000D__x000D_Installation. Installation requires moderate mechanical skill and about 7.5 hours to complete, including sensor swaps and cooler flush. No drilling or major modifications are needed, allowing for straightforward fitting to the specified vehicle.
_x000D__x000D_Warranty. This product is backed by a 36-month or 150,000-mile parts warranty and a 12-month or 24,000-mile labor warranty, providing long-term protection for your investment.
_x000D_Application. Engineered specifically to fit 05-07 4WD 5.9L RAM 2500 trucks, ensuring compatibility and optimal performance.
BD Power 1064234SST
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Transmission and Converter Kit
4.7
Reviews of BD Power Drivetrain Products (5)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 2500
- 5.9L I6 - 05, 06, 07
