Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details

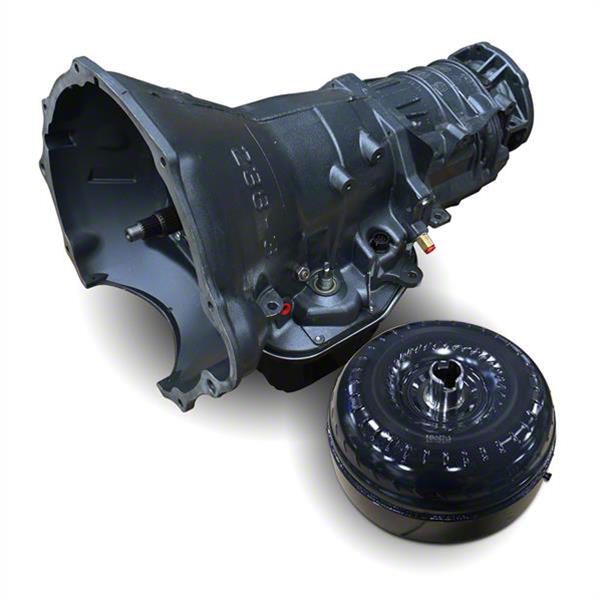

BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft and ProForce Converter; $2500 Core Charge Included (05-07 4WD 5.9L RAM 2500)Find parts that fit my vehicle
Item HR29265
Our Price
$7,894.95 kit
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Upgraded Valvebody _x000D_
- Upgraded Governor Solenoid _x000D_
- Upgraded Governor Pressure Transducer With Twice The Burst Pressure Than Stock _x000D_
- Increased Line Pressure To 190-200 PSI _x000D_
- No Shuttle Shifting Problems _x000D_
- Modified Manual Valve For Lube In All Positions _x000D_
- Stock Thrust Bushings Replaced With Roller Torrington Bearings _x000D_
- Clutch Count Direct 6 _x000D_
- Clutch Count Forward 5 _x000D_
- Clutch Count Overdrive 6 _x000D_
- Clutch Count Overdrive Direct 10 _x000D_
- High Temp/Energy Raybestos Band _x000D_
- Available With Billet Input Shaft _x000D_
- Billet Big Fine Spline Input Shaft _x000D_
- Drilled Intermediate Shaft For Increased Lubrication _x000D_
- Rigid Aluminum Heavy Duty Transmission Pan Adding 2 Quarts Extra Oil Capacity _x000D_
- Pan Heat-Dissipating Fins To Keep Temperature Down _x000D_
- Magnetic Drain Plug _x000D_
- Auxiliary Full Flow Filter Kit For Extra Protection _x000D_
- Cooler Line Case Saver Included _x000D_
- Tested On A Dyno _x000D_
- ProForce 3D Torque Converter With Triple Disc And HD Springs To Absorb Shock _x000D_
- Stamp Forged One-Piece Cover Eliminating Warpage From Clutch Heat _x000D_
- Self-Centering Trapezoid Teeth Design To Increase Contact And Decrease Wear And Chatter _x000D_
- Thrust Bearings (Not Plastic Thrust Washers) _x000D_
- Riveted Piston For Alignment And To Eliminate Vibration Or Embrittlement _x000D_
- Cast Stator Design Maximizes Torque _x000D_
- New Sprag Components For Long Term Durability _x000D_
- Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency _x000D_
- Reduced Weight By 12 Pounds Compared To Competitors _x000D_
- ProForce Torque Converter With Enhanced Stall For Street/Towing Applications _x000D_
- Torque Multiplying Cast Aluminum Stators _x000D_
- Lower RPM Response Than Stock Converter _x000D_
- More Efficient Operation Resulting In Less Heat And Better Fuel Economy _x000D_
- Stamp-Forged Steel Front Cover _x000D_
- Furnace-Brazed Fins _x000D_
- Fits 05-07 4WD 5.9L RAM 2500 _x000D_
Description
High-Performance Transmission Package. The BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft and ProForce Converter includes a $2500 core charge and is engineered for enhanced durability and performance in demanding towing and street driving conditions. This matched transmission and torque converter set provides reliable operation and extended drivetrain longevity under high torque loads.
_x000D__x000D_Construction and Appearance. The transmission incorporates upgraded components such as a billet input shaft, roller Torrington bearings, and a rigid aluminum heavy duty pan with heat-dissipating fins, all finished with a durable, corrosion-resistant surface. The ProForce torque converter features a stamp-forged one-piece cover and furnace-brazed fins to optimize strength and cooling, while reducing weight compared to similar products.
_x000D__x000D_Installation. Installation requires moderate mechanical skill, including swapping sensors and performing a cooler flush. The process generally takes approximately 7 hours and 30 minutes, with no drilling necessary.
_x000D__x000D_Warranty. This product includes a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty.
_x000D__x000D_Application. This transmission and converter package is specifically designed to fit the 2005 to 2007 4WD 5.9L RAM 2500 model, tailored to meet the vehicle’s unique drivetrain requirements without exceptions.
BD Power 1064234SS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Transmission and Converter Package
- Mounting Implements
4.7
Reviews of BD Power Drivetrain Products (5)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 2500
- 5.9L I6 - 05, 06, 07
