Find for your Ram 2500

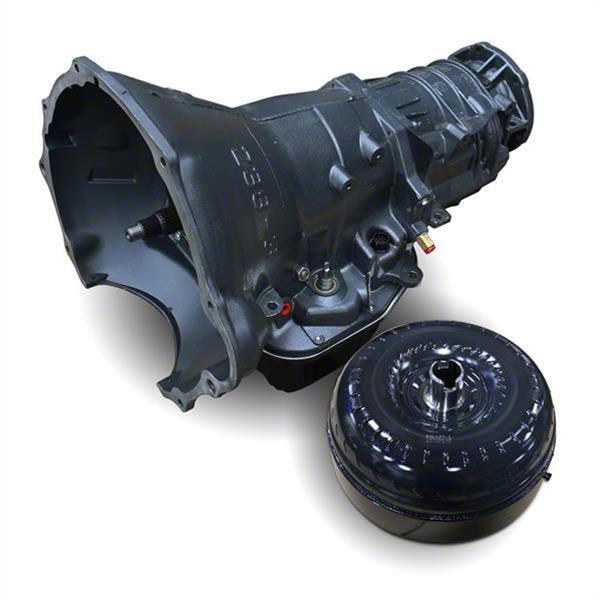

BD Power 48RE Transmission and Converter Package with Stage 5 Billet Input Shaft and ProForce 3D Converter; $2500 Core Charge Included (05-07 4WD 5.9L RAM 2500)Find parts that fit my vehicle

Item HR29261
Product Image
5 Reviews of BD Power
Our Price

$9,054.95 kit

Military, Medical & First Responders $452.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Upgraded Valvebody
      • Upgraded Governor Solenoid
      • Upgraded Governor Pressure Transducer (47RE/48RE) - Twice The Burst Pressure of Stock
      • Increased Line Pressure to 190-200psi
      • No Shuttle Shifting Issues
      • Modified Manual Valve for Lubrication in All Positions
      • Stock Thrust Bushings Replaced with Roller Torrington Bearings
      • Clutch Count: Direct 6
      • Clutch Count: Forward 5
      • Clutch Count: Overdrive (OD) 6
      • Clutch Count: OD Direct 10
      • High Temperature/Energy Raybestos Band
      • Billet Band Lever
      • Billet Band Strut
      • Billet Input Shaft to Handle Rapid Throttle Snap and High Horsepower
      • Billet Big Fine Spline Input Shaft
      • Drilled Intermediate Shaft for Increased Lubrication
      • Rigid Aluminum Heavy Duty Transmission Pan
      • Pan Adds 2 Quarts Extra Oil Capacity
      • Pan Heat-Dissipating Fins Keep Temperature Down
      • Magnetic Drain Plug
      • Enhances Drivetrain Durability
      • Auxiliary Full Flow Filter Kit for Additional Protection
      • Cooler Line Case Saver Included with Every Transmission
      • Every Transmission is Dyno-Tested
      • Package Not Warranted for Race or Sled Pull Use
      • Torque Converter Features Triple Disc
      • Enhanced Stall for Street and Towing Applications
      • Heavy Duty Springs Absorb Engagement Shock
      • Stamp Forged 1-Piece Cover Eliminates Warpage from Clutch Heat
      • Taller Cover Design Allows More Frequent Rebuilding
      • Trapezoid Teeth Design with Engineered Tighter Tolerances
      • Self-Centering Trapezoid Teeth Increase Contact, Reduce Wear and Chatter
      • Thrust Bearings Replace Plastic Thrust Washers
      • Riveted Piston Ensures Alignment and Eliminates Vibration or Embrittlement from Welding
      • Cast Stator Design Maximizes Torque
      • New Sprag Components for Long-Term Durability
      • Furnaced Brazed Turbine Fins Improve Fluid Coupling Efficiency
      • Reduced Overall Weight by 12 lbs Compared to Competitors
      • Fits 2005-2007 4WD 5.9L RAM 2500

      Description

      Powerful Transmission Package. The BD Power 48RE Transmission and Converter Package with Stage 5 Billet Input Shaft and ProForce 3D Converter; $2500 Core Charge Included is engineered to provide superior performance and durability for demanding towing and street applications. This matched transmission and converter set is dyno-tested together to ensure smooth operation, higher line pressure, and enhanced torque capacity.

      Construction and Appearance. Crafted with high-quality materials including billet aluminum components and a heavy-duty rigid aluminum transmission pan with heat-dissipating fins, this package boasts a robust design. The pan's finish is clean and functional, focusing on durability and temperature control, complemented by a magnetic drain plug and an auxiliary full-flow filter kit for additional protection.

      Installation. Installation requires moderate mechanical skill, taking approximately 7 hours and 30 minutes including sensor swaps and cooler flush. No drilling or special modifications are needed for a direct fit replacement within the specified application.

      Warranty. This package includes a comprehensive parts warranty for 36 months or 150,000 miles and labor coverage for 12 months or 24,000 miles.

      Application. Designed specifically for 2005-2007 4WD 5.9L RAM 2500 models, ensuring optimal fitment and performance for this vehicle configuration.

      BD Power 1064234BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 5 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

      What's in the Box

      • (1) 48RE Transmission and Converter Package
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 2500

      • 5.9L I6 - 05, 06, 07
