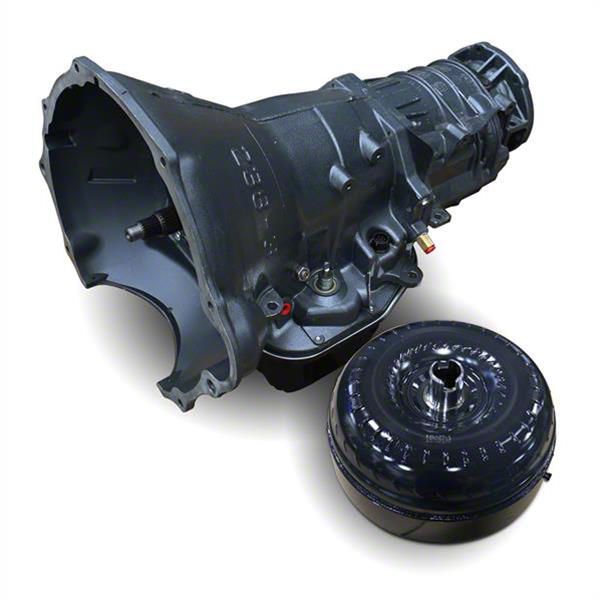

BD Power 48RE Transmission and Converter Package with Stage 5 Billet Input Shaft and ProForce 3D Converter; $2500 Core Charge Included (03-04 4WD 5.9L RAM 2500)Find parts that fit my vehicle
Item HR29248
Our Price
$9,054.95
Military, Medical & First Responders
$452.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Upgraded Valvebody _x000D_
- Upgraded Governor Solenoid _x000D_
- Upgraded Governor Pressure Transducer With Twice The Burst Pressure Of Stock _x000D_
- Increased Line Pressure To 190-200psi _x000D_
- No Shuttle Shifting Problems _x000D_
- Modified Manual Valve For Lube In All Positions _x000D_
- Stock Thrust Bushings Replaced With Roller Torrington Bearings _x000D_
- Direct Clutch Count Six _x000D_
- Forward Clutch Count Five _x000D_
- Overdrive Clutch Count Six _x000D_
- Overdrive Direct Clutch Count Ten _x000D_
- High Temp Energy Raybestos Band _x000D_
- Billet Band Lever _x000D_
- Billet Band Strut _x000D_
- Billet Input Shaft Designed To Withstand Rapid Throttle And High Horsepower _x000D_
- Billet Big Fine Spline Input Shaft _x000D_
- Drilled Intermediate Shaft For Increased Lubrication _x000D_
- Rigid Aluminum Heavy Duty Transmission Pan _x000D_
- Transmission Pan Adds Two Quarts Extra Oil Capacity _x000D_
- Pan Heat-Dissipating Fins Keep Temperature Down _x000D_
- Magnetic Drain Plug _x000D_
- Increased Durability Of Drivetrain _x000D_
- Auxiliary Full Flow Filter Kit For Extra Protection _x000D_
- Cooler Line Case Saver Included _x000D_
- Every Transmission Tested On Dyno _x000D_
- Not Warranted For Race Or Sled Pull Use _x000D_
- Triple Disc Torque Converter _x000D_
- Enhanced Stall For Street And Towing Applications _x000D_
- Heavy Duty Springs Absorb Shock Of Engagement _x000D_
- Stamp Forged One-Piece Cover Eliminates Warpage From Clutch Heat _x000D_
- Taller Cover Allows For More Frequent Rebuilds _x000D_
- Self-Centering Trapezoid Teeth Design Increases Contact And Decreases Wear And Chatter _x000D_
- Thrust Bearings Replacing Plastic Thrust Washers _x000D_
- Riveted Piston Ensures Alignment And Eliminates Vibration Or Embrittlement From Welding _x000D_
- Cast Stator Designs Maximize Torque _x000D_
- New Sprag Components Ensure Long Term Durability _x000D_
- Furnaced Brazed Turbine Fins Improve Fluid Coupling Efficiency _x000D_
- Reduced Overall Weight By Twelve Pounds Compared To Competitors _x000D_
- Fits 03-04 4WD 5.9L RAM 2500 _x000D_
Description
Enhanced Transmission Package. The BD Power 48RE Transmission and Converter Package features a Stage 5 Billet Input Shaft and ProForce 3D Converter. This matched set is dyno tested for ultimate performance and reliability, designed to handle high horsepower and torque demands. Ideal for towing, street, or track use where durability is critical.
_x000D__x000D_Construction and Appearance. The transmission includes a rigid aluminum heavy-duty pan with heat-dissipating fins and a magnetic drain plug, adding two quarts of extra oil capacity and helping maintain cooler operating temperatures. It incorporates billet components such as input shafts, band lever, and band strut for enhanced strength. The torque converter has a stamp-forged one-piece cover designed to prevent warpage from heat and uses high-grade materials to eliminate wear and vibration issues, finished with precision machining for optimal fit and long-lasting durability.
_x000D__x000D_Installation. Installation requires approximately 8 hours with moderate mechanical skill. It is designed as a direct bolt-in replacement for the specified vehicle application and requires no drilling modifications.
_x000D__x000D_Warranty. This package includes a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty.
_x000D__x000D_Application. Specifically engineered to fit 03-04 4WD 5.9L RAM 2500 models, ensuring compatibility and optimized performance with this exact vehicle and drivetrain configuration.
BD Power 1064194BM
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.7
Reviews of BD Power Drivetrain Products (5)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 2500
- 5.9L I6 - 03, 04
