Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

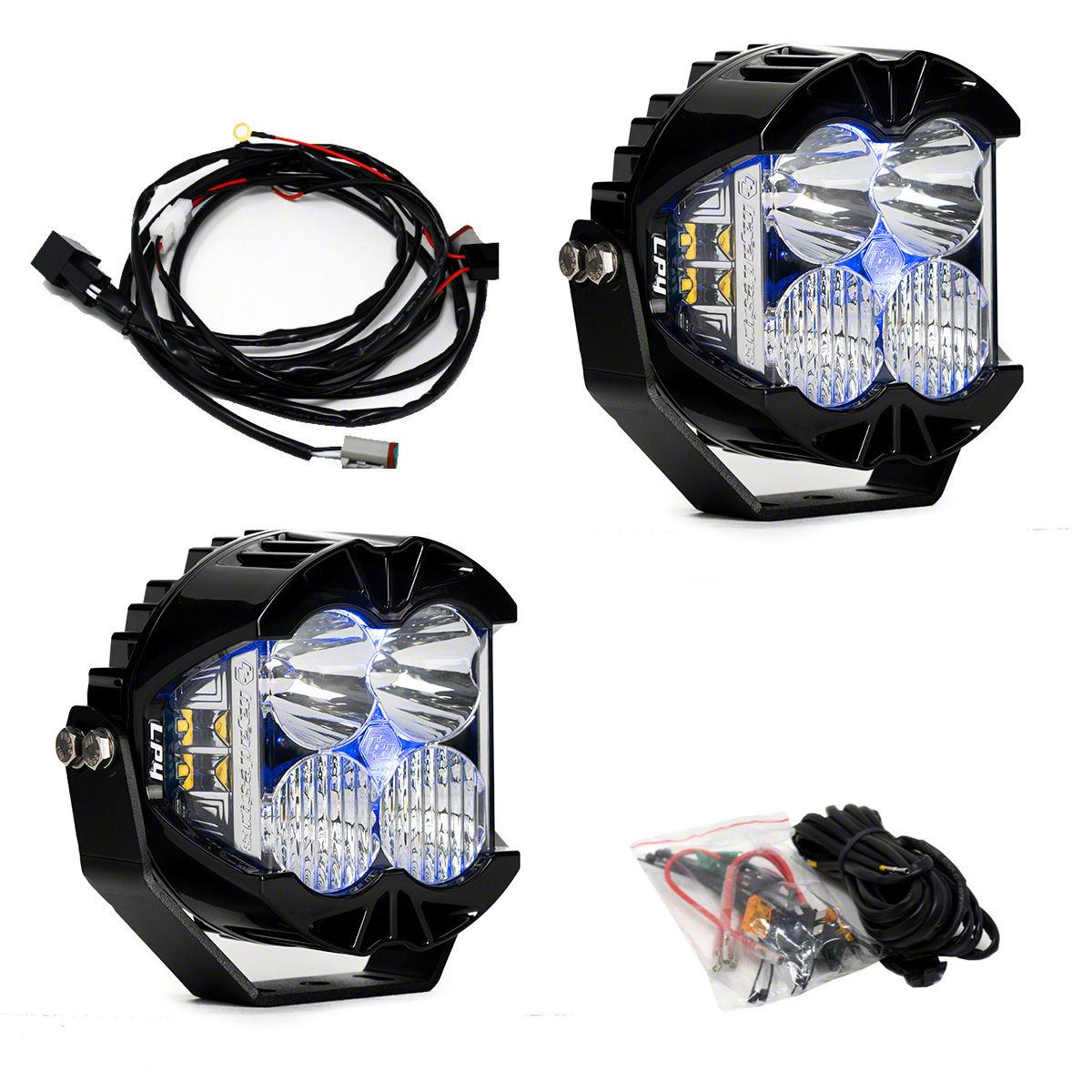

Baja Designs LP4 Pro LED Auxiliary Light Pods with Blue Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item FR28271
Our Price
$963.55 set
Military, Medical & First Responders
$48.18 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod Pair With Wiring Harness _x000D_
- Secondary Amperage Rating 1.000 Ampere _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology IPT _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.900 Watts _x000D_
- Wiring Harness Included Yes _x000D_
- Amperage Rating 5.500 Ampere _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 Ampere _x000D_
- Backlight Wattage 4.830 Watts _x000D_
- Beam Pattern Driving Combo _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8,857 Lumens _x000D_
- Description Driving Combo Clear Pair _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 2 _x000D_
- Lighting Modes Beam And Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Standards Compliance Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Up To 9 Feet And Pressure Washable _x000D_
- Depth 3.200 Inches _x000D_
- Height 5.100 Inches _x000D_
- Length 5.100 Inches _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Blue Backlight; Driving/Combo Beam; Clear deliver exceptional illumination with a total output of 8,857 lumens and a 200-degree light spread featuring Integrated Peripheral Technology (IPT). Designed for off-road enthusiasts, these lights improve trail visibility and provide enhanced peripheral vision in challenging conditions.
_x000D__x000D_Construction and Appearance. These LED pods feature a durable powder-coated cast aluminum housing with a hardcoated polycarbonate lens to resist impacts and environmental damage. Finished in black, the rugged design is complemented by stainless steel mounting hardware for reliable installation and long-lasting performance.
_x000D__x000D_Installation. The LP4 Pro pods are designed for straightforward installation, typically requiring no complex drilling thanks to included mounting hardware. The included vehicle-specific wiring harness simplifies electrical connections for a professional finish.
_x000D__x000D_Warranty. Backed by a limited lifetime warranty, the LP4 Pro lights provide peace of mind through long-term durability and coverage.
_x000D__x000D_Application. This product fits universally, with some adaptation potentially required to accommodate specific vehicle configurations.
Baja Designs 297815
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) LP4 Pro Led Light Pods
- (1) Splitter
- (2) Mounting Brackets
- Wiring Harness
- Installation Hardware
