Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item FR28268
Our Price

$875.95 pair

Military, Medical & First Responders $43.80 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology IPT
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal or Specific Universal
      • _x000D_
      • Wattage 75.900 W
      • _x000D_
      • Wiring Harness Included Yes
      • _x000D_
      • Amperage Rating 5.500 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.350 A
      • _x000D_
      • Backlight Wattage 4.830 W
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Driving/Combo Amber Pair
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Lens Color Amber
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 2
      • _x000D_
      • Lighting Modes Beam Day-Time Running Backlighting
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing
      • _x000D_
      • Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing
      • _x000D_
      • Standards Compliance Water Resistance IP69K Waterproof up to 9ft Pressure Washable
      • _x000D_
      • Depth 3.200 Inches
      • _x000D_
      • Height 5.100 Inches
      • _x000D_
      • Length 5.100 Inches
      • _x000D_
      • Weight 2.800 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam deliver outstanding illumination with a total output of 8,857 lumens and a 200-degree light spread. Designed for off-road and auxiliary vehicle lighting, these pods combine forward projecting and peripheral lighting to significantly enhance visibility and safety in demanding conditions.

      _x000D_

      Construction and Appearance. These lights feature a durable powder coat cast aluminum housing with a hardcoated polycarbonate lens for superior protection, finished in sleek black. The powder-coated bezel is engineered for durability and complements the light’s modern design, ensuring long-lasting performance against impact and environmental exposure.

      _x000D_

      Installation. Installation is straightforward with included stainless steel mounting hardware and wiring harness. Generally, no specialized tools or drilling are required, making it suitable for both professional installers and enthusiasts.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing assurance of quality and durability.

      _x000D_

      Application. Fits universal applications; some adaptation may be necessary for specific vehicle configurations or mounting locations.

      Baja Designs 297813

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

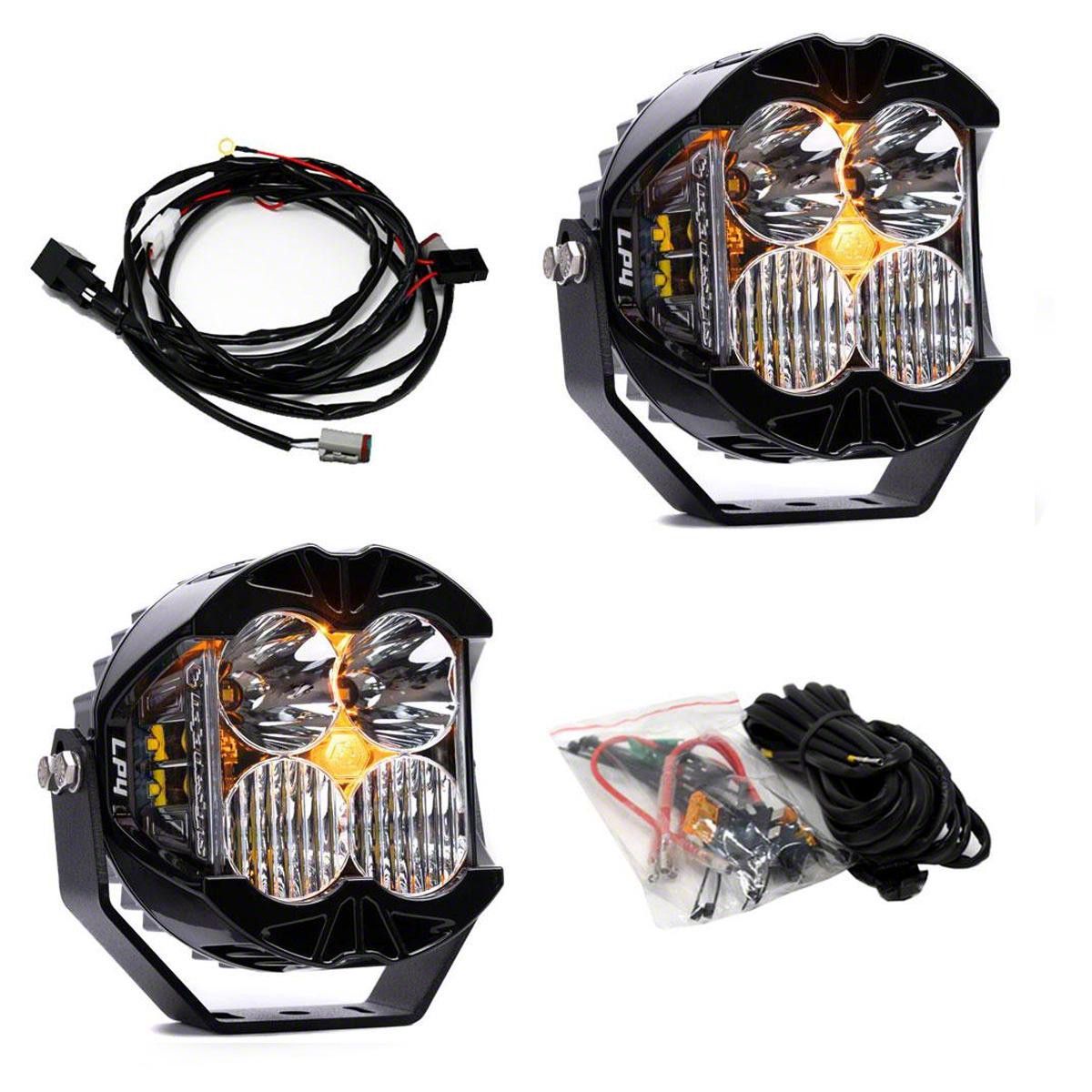

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack including:
        • (1) Center 3/8" bolt
        • (2) Longer 1/4"-20 bolts
        • Associated washers
        • Remaining 1/4"-20 hardware
      • (6) Bolts (for LP9 lens swap)
      • (4) Bolts (for LP6 & LP4 lens swap)
      • O-ring
      • Deustsch Connector (DT06-4S) mating connector (if creating own wiring harness)
      • (1) LP9 Pro Wire Harness (Part Number: 64-0172) - recommended for powering up to two lights
