Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)

Item FR28270
Product Image
3 Reviews
Our Price

$963.55 pair

Military, Medical & First Responders $48.18 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Built-In Overvoltage Protection
        • _x000D_
      • LP4 Pro LED Light Pod Pair with Wiring Harness Included
        • _x000D_
      • Secondary Brightness of 1,972 Lumens
        • _x000D_
      • Secondary Light Quantity of 4 LEDs
        • _x000D_
      • Secondary Lighting Technology is LED
        • _x000D_
      • Secondary Lighting Type is Integrated Peripheral Technology
        • _x000D_
      • Secondary Wattage of 15 Watts
        • _x000D_
      • DT06-4S Deutsch Terminal Connector
        • _x000D_
      • Mating Terminal Type
        • _x000D_
      • Universal Fit; Some Adaptation May Be Required
        • _x000D_
      • Total Wattage of 75.9 Watts
        • _x000D_
      • Primary Amperage Rating of 5.5 Amps
        • _x000D_
      • Average Rated Life of 49,930 Hours
        • _x000D_
      • Backlight Amperage Rating of 0.35 Amps
        • _x000D_
      • Backlight Wattage of 4.83 Watts
        • _x000D_
      • Spot Beam Pattern
        • _x000D_
      • Powder Coat Cast Aluminum Bezel Material
        • _x000D_
      • Brightness of 8,857 Lumens (6,885 Lumens Forward Facing; 1,972 Lumens Peripheral)
        • _x000D_
      • Description: Spot Beam, Clear Lens, Pair
        • _x000D_
      • Black Housing Color
        • _x000D_
      • Powder Coat Cast Aluminum Housing Material
        • _x000D_
      • Clear Lens Color
        • _x000D_
      • Hardcoated Polycarbonate Lens Material
        • _x000D_
      • 2 Light Quantity per Pair
        • _x000D_
      • Beam and Day-Time Running Backlighting Lighting Modes
        • _x000D_
      • LED Lighting Technology
        • _x000D_
      • Forward Projecting Lighting Type
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Stainless Steel Mounting Hardware Material
        • _x000D_
      • Exceeds MIL-STD-810G Durability Standards
        • _x000D_
      • IK10 Compliant Impact Resistance
        • _x000D_
      • IP69K Waterproof and Pressure Washable
        • _x000D_
      • Depth of 3.2 Inches
        • _x000D_
      • Height of 5.1 Inches
        • _x000D_
      • Length of 5.1 Inches
        • _x000D_
      • Weight of 2.8 Pounds
        • _x000D_

      Description

      LED OFF-ROAD LIGHTING. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Spot Beam; Clear provide exceptional lighting performance for off-road and auxiliary applications. With a total brightness of 8,857 lumens—6,885 lumens forward-facing and 1,972 lumens through integrated peripheral lighting—these pods improve visibility and safety in demanding conditions while offering customizable backlight options to enhance vehicle appearance.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. These light pods feature robust powder-coated cast aluminum housings with a black finish for durability and corrosion resistance. The lenses are made from hardcoated polycarbonate for impact resistance and longevity. Stainless steel mounting hardware ensures secure installation and corrosion resistance even in harsh environments.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with the included wiring harness and mounting hardware. Some adaptation may be required depending on the vehicle, with typically no drilling necessary for proper mounting.

      _x000D__x000D_

      WARRANTY. The product is backed by a limited lifetime warranty providing long-term purchase protection.

      _x000D__x000D_

      APPLICATION. Fits universal; some adaptation may be required.

      Baja Designs 297801

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

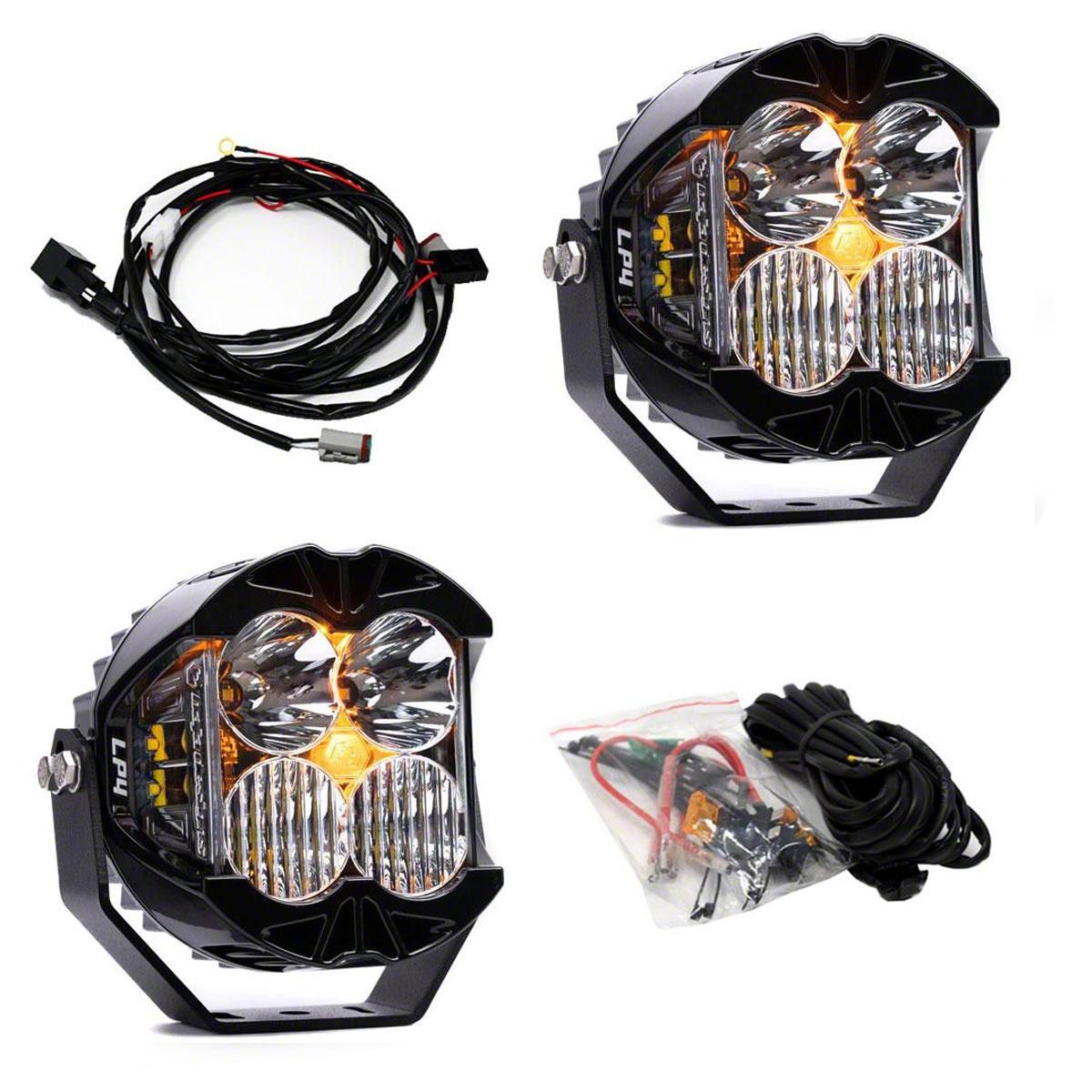

      • (2) LP4 Pro LED Light Pods
      • (1) Wiring Harness
      • Mounting Hardware
