Find LED Light Bars for your Ram 2500

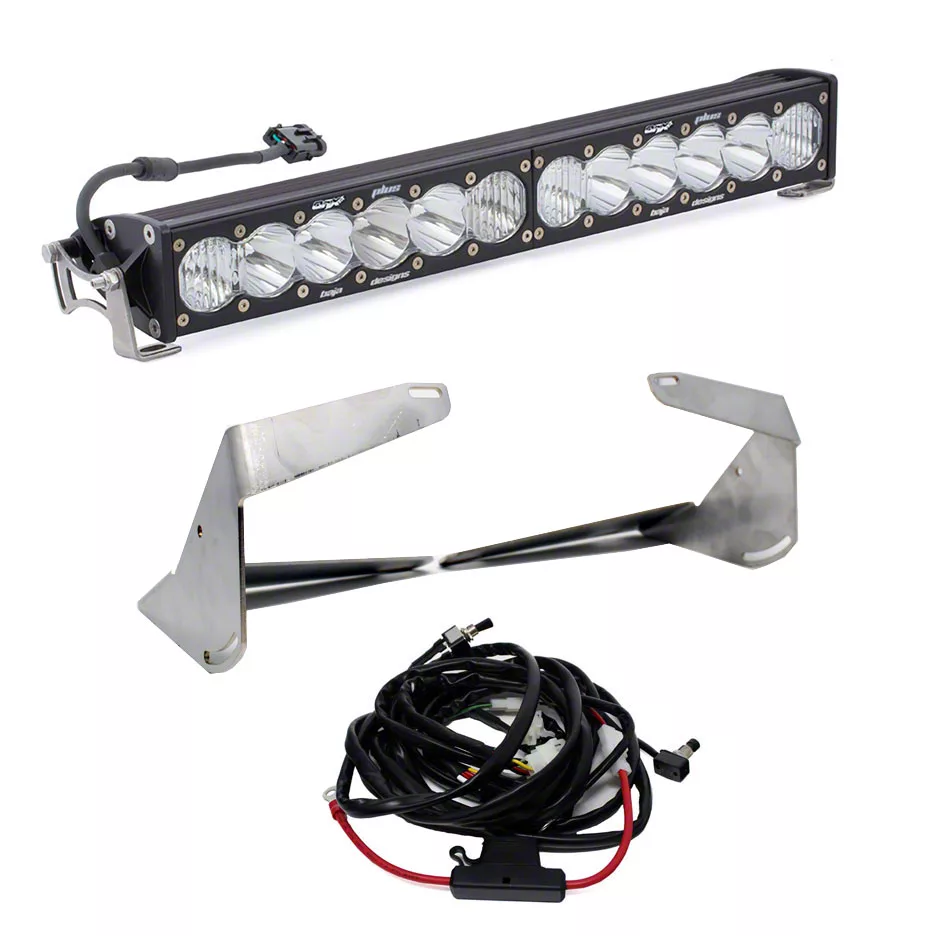

Baja Designs 20-Inch OnX6+ Bumper Light Kit (19-26 RAM 2500)Find parts that fit my vehicle

Item HR10777
Product Image
161 Reviews of Baja Designs
Our Price

$1,059.95 kit

Military, Medical & First Responders $53.00 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • OnX6+ 20-Inch Light Bar Clear Driving Combo
        • _x000D_
      • Mounting Brackets Provided
        • _x000D_
      • Includes Wiring Harness Model 640115 with Hi-Low Dongle
        • _x000D_
      • All Necessary Mounting Hardware Included, Made from Stainless Steel
        • _x000D_
      • Depth Measures 4.29 Inches
        • _x000D_
      • Height Measures 2.69 Inches
        • _x000D_
      • Length Measures 20 Inches
        • _x000D_
      • Weight Is 7.85 Pounds
        • _x000D_
      • Amperage Rating Is 16.6 Amps On High And 12.0 Amps On Low
        • _x000D_
      • Average Rated Life Is 49,930 Hours
        • _x000D_
      • Beam Pattern Is Driving/Combo
        • _x000D_
      • Bezel Material Is Billet Machined Aluminum
        • _x000D_
      • Brightness Is 24,920 Lumens On High And 18,460 Lumens On Low
        • _x000D_
      • Housing Color Is Black
        • _x000D_
      • Housing Material Is Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Is Clear
        • _x000D_
      • Lens Material Is Hardcoated Polycarbonate
        • _x000D_
      • Includes One Light Quantity
        • _x000D_
      • Light Quantity Consists Of 12 LEDs
        • _x000D_
      • LED Lighting Technology
        • _x000D_
      • Forward Projecting Lighting Type
        • _x000D_
      • Built-In Overvoltage Protection
        • _x000D_
      • Wattage Rated At 216 Watts On High And 160 Watts On Low
        • _x000D_
      • Universal Product Type
        • _x000D_
      • Meets Or Exceeds MIL-STD810G Durability Standards
        • _x000D_
      • IK10 Compliant For Impact Resistance
        • _x000D_
      • IP69K Rated For Water Resistance And Pressure Washability
        • _x000D_
      • Fits 2019-2026 RAM 2500
        • _x000D_

      Description

      HIGH-PERFORMANCE LIGHTING. The Baja Designs 20-Inch OnX6+ Bumper Light Kit delivers superior illumination for nighttime driving and off-road adventures. This light bar features a combination beam pattern ideal for both distance and peripheral lighting, enhancing road visibility without compromising your vehicle’s aesthetics or functionality.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Crafted from aircraft-grade aluminum with a military-spec hard anodized finish, this light bar offers exceptional durability and resistance against harsh conditions. The clear polycarbonate lens is hardcoated to protect against impact and abrasion. The bezel is machined from billet aluminum, combining a sleek and robust appearance with functional strength.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward and designed for a clean, secure fit without drilling or modifying the vehicle structure. The kit includes all necessary mounting hardware and wiring harness for an easy, hassle-free setup.

      _x000D__x000D_

      WARRANTY. This product is backed by a lifetime limited warranty, providing long-term confidence in quality and performance. APPLICATION. Specifically engineered to fit RAM 2500 models from 2019 through 2026, ensuring seamless integration without compatibility issues.

      Baja Designs 448031

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Ram OnX6/S8 20” Lower Grille Kit
      • (2) Brackets
      • (2) ¼” Bolts with Washers
      • (2) ¼” Washers
      • (2) ¼” Nuts
      • (1) Light
      • Hardware for mounting light and brackets
      • Zip ties
      • Switch
      • Wiring harness with battery leads and relay
