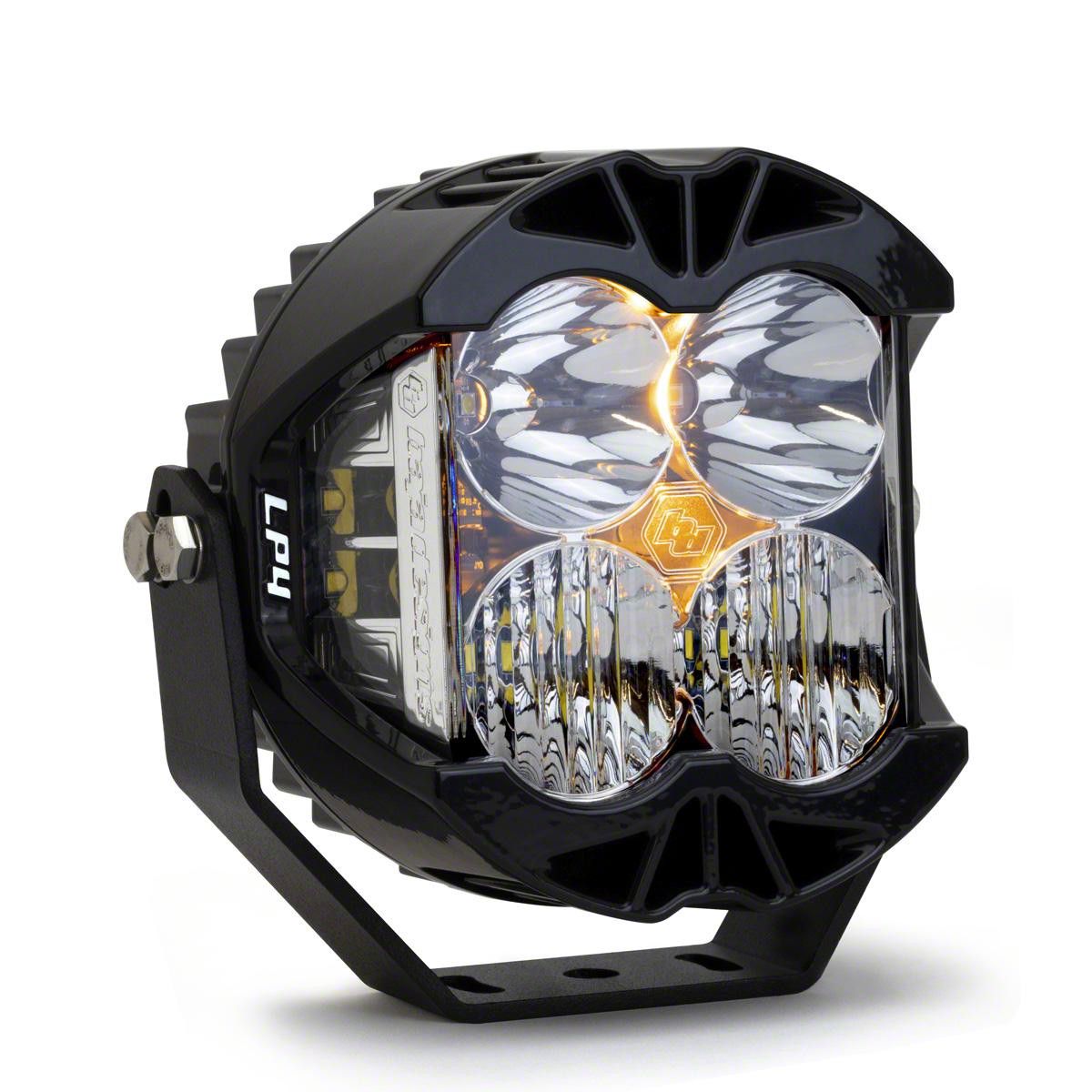

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item DD8362
Our Price
$481.75 each
Military, Medical & First Responders
$24.09 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 Amps _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology IPT _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.9 Watts _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.5 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.35 Amps _x000D_
- Backlight Wattage 4.83 Watts _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Standards Compliance Water Resistance IP69K Waterproof Up To 9ft & Pressure Washable _x000D_
- Depth 3.2 Inches _x000D_
- Height 5.1 Inches _x000D_
- Length 5.1 Inches _x000D_
- Weight 2.8 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
Premium Auxiliary Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear delivers powerful illumination with 8,857 raw lumens output and a focused spot beam pattern designed to enhance night visibility in off-road and auxiliary applications. It is engineered for users seeking high performance, durable lighting with customizable backlight options suitable for vehicle shows and photography.
_x000D__x000D_Construction and Appearance. Crafted from powder-coated cast aluminum housing and a hardcoated polycarbonate lens, this light pod is built for rugged durability and resistance to mechanical impact, waterproof to IP69K standards. The black housing offers a sleek, professional finish optimized for both function and style under demanding conditions.
_x000D__x000D_Installation. This light pod includes stainless steel mounting hardware for secure attachment and uses a DT06-4S Deutsch mating connector for wiring. Installation is straightforward, generally requiring no complex modifications or drilling, suitable for professional or experienced DIY installers.
_x000D__x000D_Warranty. It is backed by a lifetime limited warranty providing peace of mind for long-term use.
_x000D__x000D_Application. Fits universally across vehicles with some adaptation likely required for specific mounts and wiring integration.
Baja Designs 290001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
