2023-2026
2015-2022
Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Light Bars & Off-Road Lighting for your Colorado

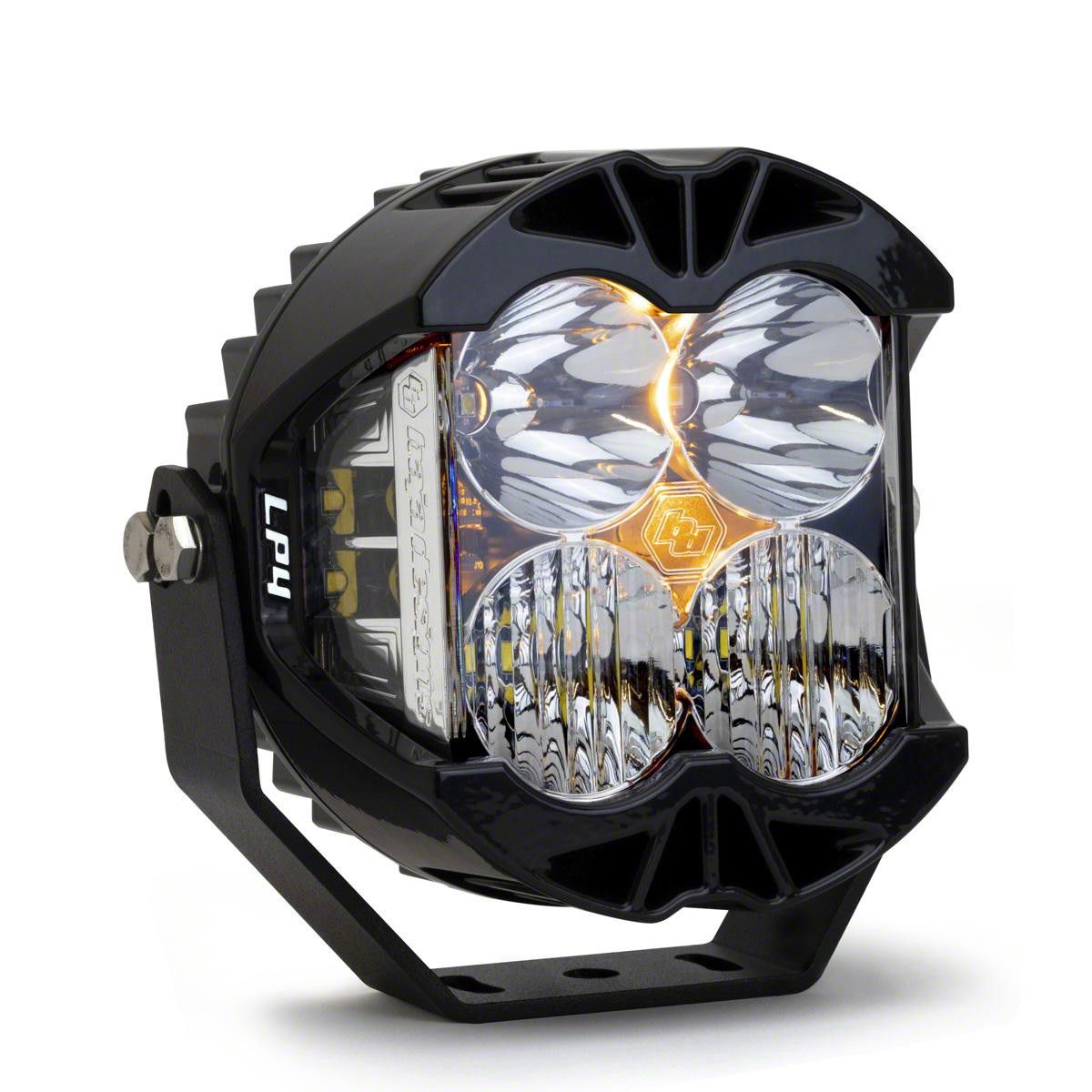

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item CY9576
Our Price
$481.75 each
Military, Medical & First Responders
$24.09 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.9 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.5 A _x000D_
- Average Rated Life 49930 Hours _x000D_
- Backlight Amperage Rating 0.35 A _x000D_
- Backlight Wattage 4.83 W _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G _x000D_
- Standards Compliance Impact Resistance IK10 Compliant _x000D_
- Standards Compliance Water Resistance IP69K _x000D_
- Depth 3.2 Inches _x000D_
- Height 5.1 Inches _x000D_
- Length 5.1 Inches _x000D_
- Weight 2.8 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
Exceptional LED Performance. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear is a compact, high-output lighting solution designed to enhance visibility in off-road and nighttime driving conditions. This light pod provides a powerful, focused beam supplemented by peripheral lighting to illuminate a broad field of view, making it essential for safe and effective trail navigation or auxiliary lighting needs.
_x000D__x000D_Construction and Appearance. Constructed with powder-coated cast aluminum housing and a hardcoated polycarbonate lens, this light pod offers durability and resistance to impact and corrosion. Its black finish provides a sleek, modern look while the use of stainless steel mounting hardware ensures secure installation and longevity under rugged conditions.
_x000D__x000D_Installation. Installation of this light pod is relatively straightforward, requiring basic mounting and wiring skills. No drilling is required for mounting hardware installation, simplifying the setup process for most users.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing assurance of its quality and durability over extended use.
_x000D__x000D_Application. Fits universal applications with some adaptation likely needed depending on the mounting location and vehicle specifics.
Baja Designs 290001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
