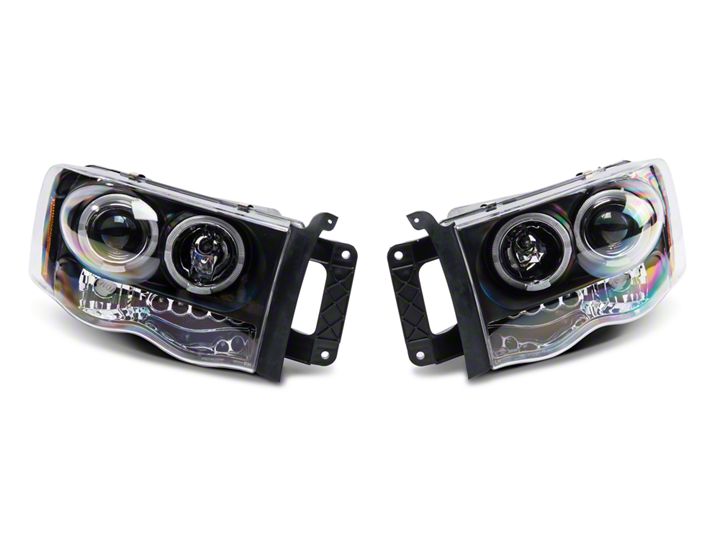

How to Install Axial Black Dual LED Halo Projector Headlights on your Ram

Installation Time

1 hours

Tools Required
  • Phillips Screwdriver
  • Pocket Flat Tip Screwdriver
  • ¼” Drive Ratchet
  • ¼” Drive Extensions (6 to 10 inches)
  • 10mm Socket
  • Handy Remover
  • Wire Stripper
  • Wire Crimper
American Muscle
Shop Parts in this Guide

1. There are three 10 mm bolts and a clip that needs to be remove


2. Remove the clip first


3. Then remove the two 10 mm bolts from the headlight


4. Gently pull the headlight out slightly enough to see the back of the headlight and disconnect all the connectors from the headlight. After disconnected, then remove the headlight


5. Connect all the connectors before you install the headlight Please see the “Halo and L.E.D installation instructions” If your headlights don’t have HALO or L.E.D. You can skip that step


6. Install the headlight and install the three 10mm bolts


7. Install the clip to fasten the headlight


8. Please repeat the picture order from 1 to 7 for the opposite side


9. The installation is now complete
