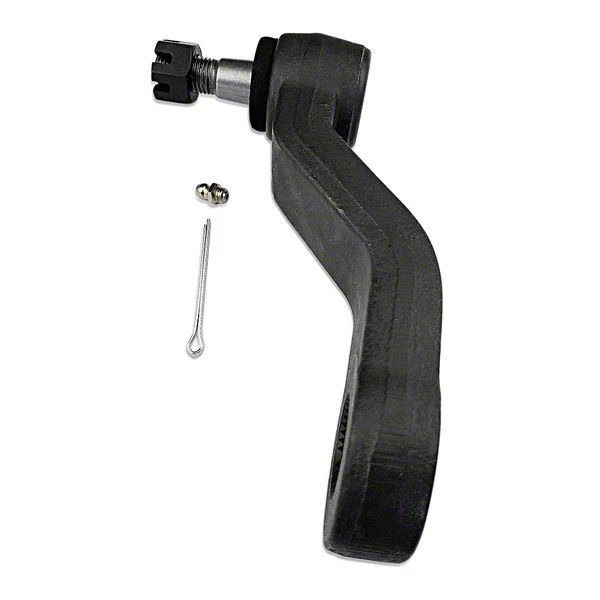

Apex Chassis Pitman Arm; 3-Groove (01-10 Silverado 3500 HD)

What It Fits:
Cadillac Escalade (2002-2006) 2WD or 4WD
Chevrolet Avalanche 2500 (2002-2006) 2WD or 4WD
Chevrolet Express 2500 (2003-2016) 2WD
Chevrolet Express 3500 (2003-2016) 2WD
Chevrolet Express 4500 (2009-2015) 2WD
Chevrolet Silverado 1500 (2001-2006) 2WD or 4WD
Chevrolet Silverado 1500 Classic (2007) 2WD or 4WD
Chevrolet Silverado 1500 HD (2001-2006) 2WD or 4WD
Chevrolet Silverado 1500 HD Classic (2007) 2WD or 4WD
Chevrolet Silverado 2500 (1999-2004) 2WD or 4WD
Chevrolet Silverado 2500 HD (2001-2010) 2WD or 4WD
Chevrolet Silverado 2500 HD Classic (2007) 2WD or 4WD
Chevrolet Silverado 3500 (2001-2006) 2WD or 4WD
Chevrolet Silverado 3500 Classic (2007) 2WD or 4WD
Chevrolet Silverado 3500 HD (2007-2010) 2WD or 4WD
Chevrolet Suburban (2000-2013) 2WD or 4WD
Chevrolet Express 2500 (2003-2021) 2WD
Chevrolet Express 3500 (2003-2021) 2WD
Chevrolet Express 4500 (2003-2021) 2WD
GMC Savana 2500 (2003-2021) 2WD
GMC Savana 3500 (2003-2021) 2WD
GMC Savana 4500 (2009-2021) 2WD
GMC Sierra 1500 (1999-2006) 2WD or 4WD
GMC Sierra 1500 Classic (2007) 2WD or 4WD
GMC Sierra 1500 HD (2001-2006) 2WD or 4WD
GMC Sierra 1500 HD Classic (2007) 2WD or 4WD
GMC Sierra 2500 (1999-2004) 2WD or 4WD
GMC Sierra 2500 HD (2001-2010) 2WD or 4WD
GMC Sierra 2500 HD Classic (2007) 2WD or 4WD
GMC Sierra 3500 Classic (2007) 2WD or 4WD
GMC Sierra 3500 HD (2007-2010) 2WD or 4WD
GMC Yukon XL 2500 (2001-2013) 2WD or 4WD
Hummer H2 (2003-2009) 2WD or 4WD
The Special Sauce:
HOUSING
SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
Rugged Metal to Metal Bearing
HARDWARE
Grade 8 - Class 10.9 Hardware: Superior tensile strength.
Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
Greaseable: Because it should be.
Pre-Greased: Just in case you forget, we have you covered.
Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
Zerk Fittings : Included for every application.
Where It Fits:
Vehicle Position: Front
Quantity per Vehicle: 1
Moog Interchange: K6654
XRF Interchange: K6654
