Air Lift LoadLifter 5000 Ultimate Air Spring Kit (24-26 Silverado 2500 HD ZR2)

Find parts that fit my vehicle Item HS71277
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Adjustable Air Springs From 5-100 Psi, With Up To 5,000 Lbs. Of Leveling Capacity
    • Kit Levels Vehicle When Towing Or Hauling For A Safe, Comfortable Ride
    • Helps To Eliminate Vehicle Sag And Bottoming Out While Towing And Hauling
    • Easy To Install Kit With Included Instructions
    • Underframe Kit Designed To Work With Most In-Bed Hitches
    • No Drilling Into The Frame Is Required
    • Internal Jounce Bumper Absorbs Shock And Can Be Safely Run With Zero Psi
    • Air Spring Cradles Allow Vehicle To Maintain Full Suspension Extension
    • Features Limited Lifetime Warranty With A 60-Day Ride Satisfaction Guarantee
    • Fits 2024-2026 Silverado 2500 HD ZR2

    Description

    The LoadLifter 5000 Ultimate load support kit with Air Spring Cradles offers up to 5,000 lbs. of load-leveling capacity to help eliminate squat, trailer sway, and body roll. Backed by a limited lifetime warranty. The included Air Spring Cradles allow the air springs to detach from the lower bracket for full suspension extension, ideal for overlanding and off-roading. Features: Adjustable air springs from 5-100 PSI, with up to 5,000 lbs. of leveling capacity*, The kit levels your vehicle when towing or hauling for a safe, comfortable ride, Helps to eliminate vehicle sag and bottoming out while towing and hauling, Easy to install kit with included instructions, Underframe kit designed to work with most in-bed hitches, No drilling into the frame is required, Internal jounce bumper absorbs shock and can be safely run with zero PSI, Air Spring Cradles allow the vehicle to maintain full suspension extension, Features Air Lift's limited lifetime warranty, with a 60-day ride satisfaction guarantee. *Do not exceed the vehicle’s gross vehicle weight rating (GVWR). The Air Lift LoadLifter 5000 Ultimate offers up to 5,000 lbs. of load-leveling capacity and features an internal jounce bumper to help absorb road shock and minimize bottoming out. These tough, durable air springs are fully adjustable from 5-100 PSI for a stable, level ride loaded or unloaded. Weight: 39.6lb, Width: 17in, Depth: 12in, Height: 10in, replacement part no: 84297, drilling required: No, application type: Rear Kit

    Air Lift 88408

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

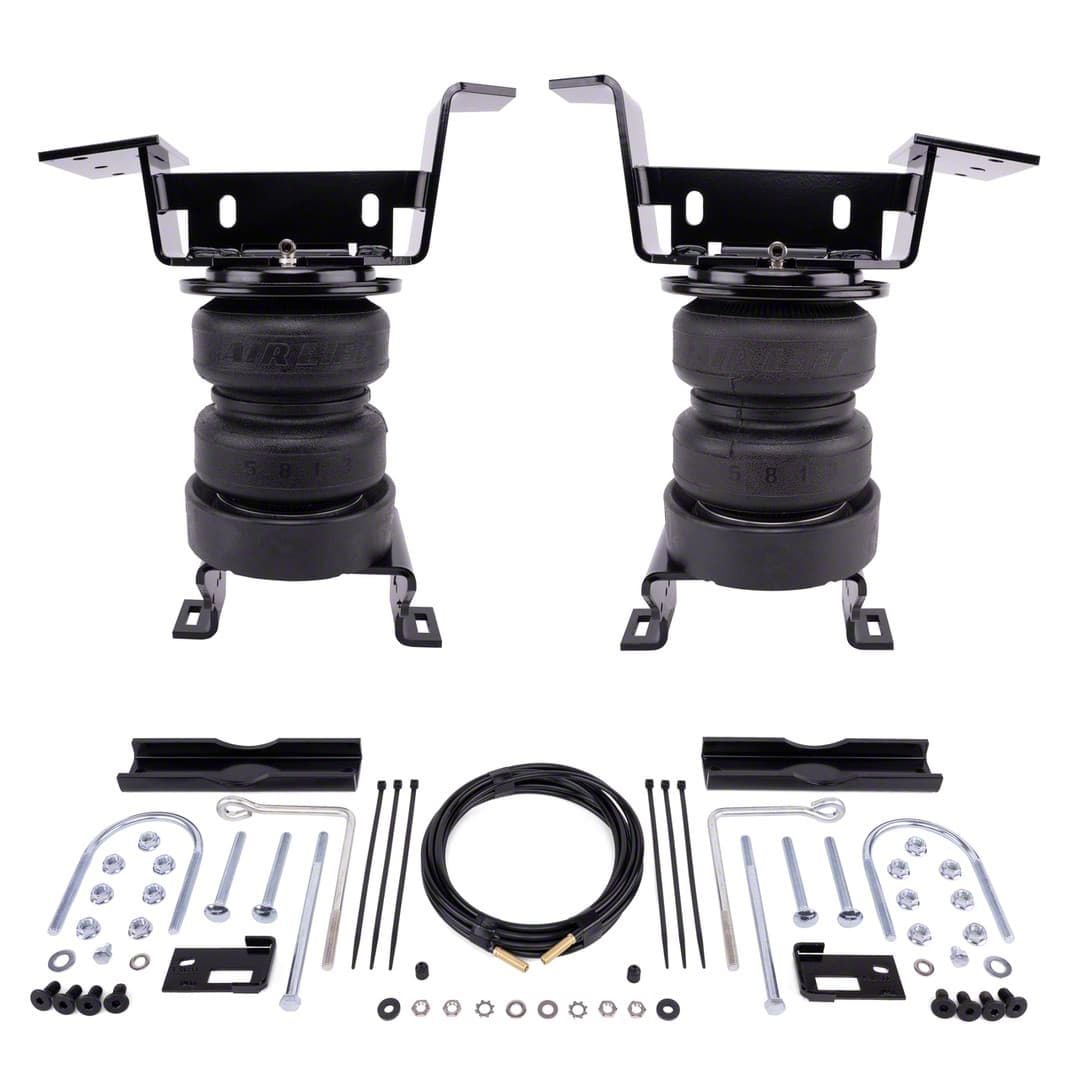

    What's in the Box

    • (2) Clamp bar (A), Part# 01851
    • (2) Lever bracket (B), Part# 00702
    • (1) Upper bracket, right hand side (C), Part# 07808
    • (1) Upper bracket, left hand side (D), Part# 07902
    • (2) Roll plate (E), Part# 11967
    • (1) Air spring (F), Part# 58496
    • (2) Air Spring cradle kit (G), Part# 52500
    • (2) 90-degree Swivel air fitting (H), Part# 21848
    • (4) 3/8-24 X 3/4" Flat head socket cap screw (I), Part# 17215
    • (2) L-bolt (J), Part# 11323
    • (1) Left hand brake line bracket (K), Part# 11315
    • (1) Right hand brake line bracket (L), Part# 11320
    • (2) 3/8-16 U-bolt (M), Part# 11771
    • (4) 3/8-16 X 3/12" Carriage bolt (N), Part# 17142
    • (2) M8-125 X 10 Hex cap screw (O), Part# 17449
    • (2) 3/8-16 X 1/2" Hex cap screw (P), Part# 17586
    • (10) 3/8-16 Serrated flange lock nut (Q), Part# 18422
    • (2) M8 Flat washer (R), Part# 18501
    • (6) 3/8" Flat washer (S), Part# 18444
    • (4) 3/8-16 Nylon lock nut (T), Part# 10455
    • (1) Heat shield kit (U), Part# 24395
    • (1) Airline assembly (AA), Part# 20086
    • (6) Zip ties (BB), Part# 10466
    • (2) 5/16" Lock washer (CC), Part# 18411
    • (2) Rubber washer (DO), Part# 21234
    • (2) M8 Flat washer (EE), Part# 18501
    • (4) 5/16" Hex nut (FF), Part# 21233
    • (2) Valve cap (GG), Part# 21230

    Tech Specs

    4.9

    Customer Reviews (11)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My Silverado 2500

    • 6.6L V8 - 24, 25, 26
    • 6.6L V8 Duramax - 24, 25, 26
