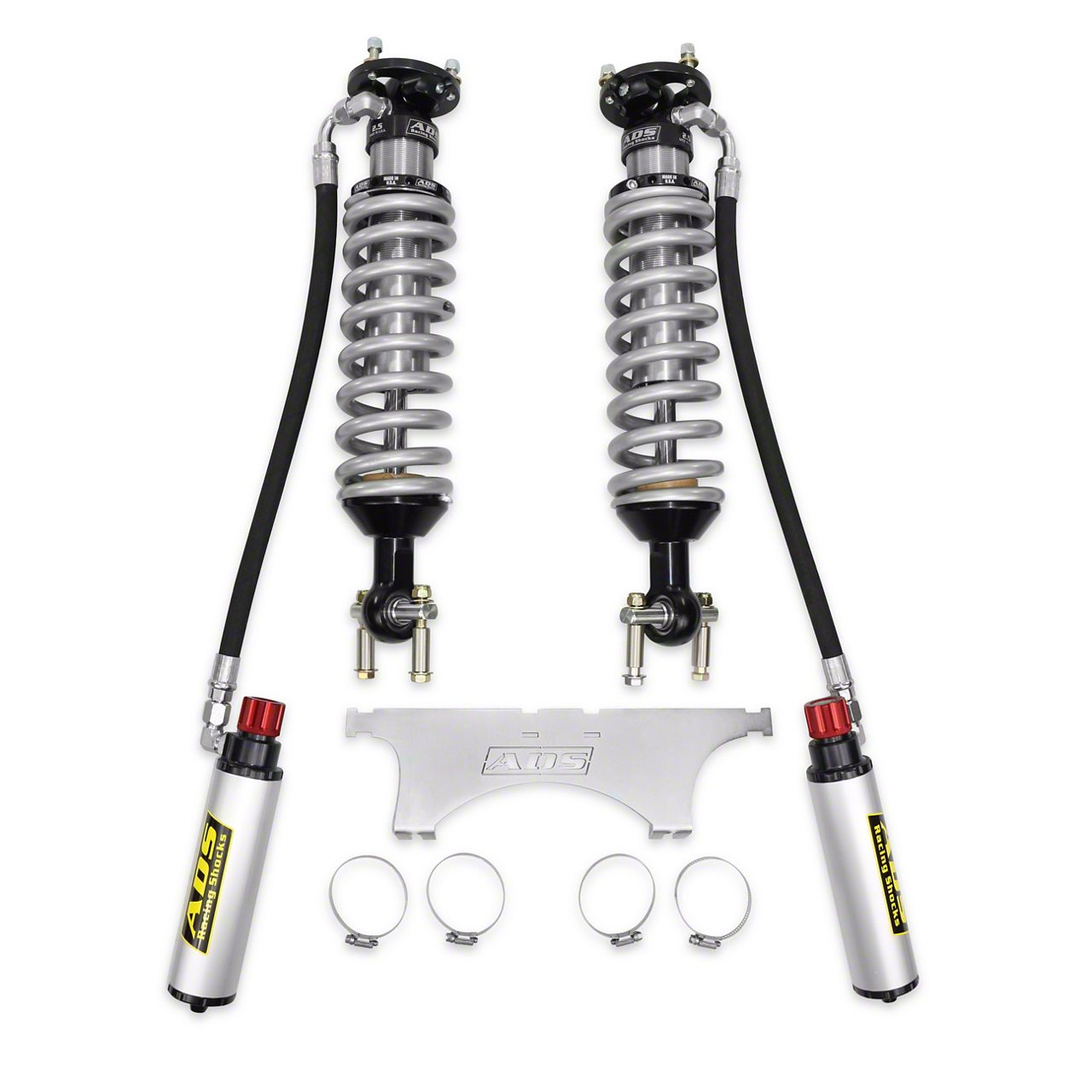

ADS Racing Shocks Direct Fit Race Front Coil-Overs with Remote Reservoir and Compression Adjuster (19-23 Ranger)Find parts that fit my vehicle

Item FR20675
Product Image
$0.00
1 Reviews of ADS Racing Shocks Suspension
Our Price

$2,766.95

Military, Medical & First Responders $138.35 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Active Or Passive Suspension Passive
        • _x000D_
      • Adjustable Compression Yes
        • _x000D_
      • Adjustable Rebound Yes
        • _x000D_
      • Adjustable Reservoir Yes
        • _x000D_
      • Adjustable Ride Height Yes
        • _x000D_
      • Body Diameter 2.5 In
        • _x000D_
      • Body Finish Electric Zinc Plated W/ Ceramic Coat
        • _x000D_
      • Body Material Steel
        • _x000D_
      • Boot Included No
        • _x000D_
      • Category Suspension
        • _x000D_
      • Collapsed Length 17.507 In
        • _x000D_
      • Drivetrain 2wd/4wd
        • _x000D_
      • Emission Code 6
        • _x000D_
      • Extended Length 22.526 In
        • _x000D_
      • Gas Charged Yes
        • _x000D_
      • Grade Type Performance
        • _x000D_
      • Hose Length 24 In
        • _x000D_
      • Hose Material Rubber
        • _x000D_
      • Hose Outer Diameter 0.875 In
        • _x000D_
      • Includes Bump Stop Yes
        • _x000D_
      • Internal Construction Type Mono Tube
        • _x000D_
      • Internal Rebound Bumper No
        • _x000D_
      • Internal Rebound Spring No
        • _x000D_
      • Lift Range 1-2.5 In
        • _x000D_
      • Lower Mount Type T-Bar
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Part Type Suspension Shock Absorber
        • _x000D_
      • Position Front
        • _x000D_
      • Quantity Sold As A Pair
        • _x000D_
      • Requires Uca Yes
        • _x000D_
      • Reservoir Diameter 2.5 In
        • _x000D_
      • Reservoir Finish Anodized
        • _x000D_
      • Reservoir Length 8 In
        • _x000D_
      • Reservoir Material 6061 Aluminum
        • _x000D_
      • Reservoir Type Remote
        • _x000D_
      • Shaft Diameter 0.875 In
        • _x000D_
      • Shaft Material Hard-Chrome Plated Steel
        • _x000D_
      • Shock Travel Extended Travel
        • _x000D_
      • Spring Color Silver
        • _x000D_
      • Spring Finish Powdercoated
        • _x000D_
      • Spring Included Yes
        • _x000D_
      • Spring Material Steel
        • _x000D_
      • Spring Rate 600 Ppi
        • _x000D_
      • Stroke 5 In
        • _x000D_
      • Sub Category Shocks And Struts
        • _x000D_
      • Travel Length 5.019 In
        • _x000D_
      • Type Coilover
        • _x000D_
      • Upper Mount Type Mounting Plate
        • _x000D_
      • Valving Type Progressive
        • _x000D_
      • Weight 62 Lb
        • _x000D_
      • Fits 19-23 Ranger Aftermarket Upper Control Arms Required Provides 1-3 Inch Front Lift
        • _x000D_

      Description

      Advanced Off-Road Suspension. The ADS Racing Shocks Direct Fit Race Front Coil-Overs with Remote Reservoir and Compression Adjuster are precision-engineered to elevate your vehicle’s off-road capabilities. These coilovers offer adjustable ride height and compression to optimize handling and comfort on rugged terrains.

      _x000D__x000D_

      Durable Construction. Crafted from high-quality steel with an electric zinc plating and ceramic coat finish, these coilovers resist corrosion and wear. The anodized aluminum reservoir, hard-chrome plated shafts, and powder-coated steel springs ensure long-lasting performance and a premium appearance.

      _x000D__x000D_

      Easy Installation. Designed as a direct fit with included mounting hardware, installation is straightforward without requiring drilling. However, aftermarket upper control arms are necessary to accommodate the 1-3 inch front lift these coilovers provide.

      _x000D__x000D_

      Application. Specifically designed to fit 2019-2023 Ford Rangers, delivering enhanced front suspension performance and adjustability.

      ADS Racing Shocks 250-19RNF-A00
