Zone Offroad 6.50-Inch Suspension Lift Kit with Shocks (14-18 4WD Sierra 1500, Excluding Denali)

Item S502030
Zone Offroad 6.50-Inch Suspension Lift Kit with Shocks (14-18 4WD Sierra 1500, Excluding Denali)
Verify parts fit and get product recommendations.
Sierra 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Our Price


FREE Shipping + $199.00 Oversized Item Fee Market Price $1,366.84 You Save 12% ($157.25) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • 6.5-Inch Lift with Strut Spacers
      • Ductile Iron, CNC Machined Steering Knuckles
      • Durable Solid Cast Iron Blocks
      • Multi-Point Differential Mounting System
      • Fits the Factory Strut on Your 4WD
      • Allows for 17-Inch Wheels
      • Works with Stabilitrak System
      • Limited Lifetime Warranty
      • Options of Nitro or Hydro Shocks
      • Fits 2014-2018 4WD GMC Sierras, Excluding Denali Models


      Lift it High. If your 2014 to 2018 GMC Sierra needs a lift for aesthetic purposes or to spend more time off-road, adding a Zone Offroad 6.5-Inch Suspension Lift Kit with Shocks works with your factory design to give your 4WD pickup a massive lift. The system is designed to accommodate the new power steering design as well as your pickup's Stabilitrak System.

      You Already Have What You Need. The suspension lift uses 6.5-inch strut spacers from solid cast iron to get the height, and a heavy duty crossmember for a clean finish. Once installed, the cross members button it up and keep the truck driving straight and keep the ride strong. The multi-point differential mounting system guarantees comfort with crisp drive line angles.

      Hydro or Nitro Shocks. Zone Offroad offers this suspension lift kit with a choice of Hydro or Nitro Shocks. The Hydro Shocks features a twin tube hydraulic design with a progressive 10 stage velocity sensitive valving that provides an increase in the fluid capacity, while cutting down the internal temperatures to ensure a smooth and comfortable ride on and off road. The Nitro Shocks are also a twin tube design, but it is charged by nitrogen gas with a 10 stage velocity sensitive full displaced valving to provide a better valving range when compressing and extending during travel to give your Sierra a more responsive feel and control on and off road.

      Installation. Installing the lift kit with shocks requires mechanical skill as installation is a difficult task. The kit itself has all the bushings, spacers, washers, extensions, and bolts you need to get a factory-like fit. The tools you need include a welder, 36mm axle socket, grinder with sanding disc, and reciprocating saw.

      Application. The Zone Offroad 6.5-Inch Suspension Lift Kit with Shocks fits your 2014 to 2018 4WD GMC Sierra 1500s, excluding Denali models, equipped with stock cast steel, cast aluminum or stamped steel control arms. Please select your preferred shock option along with your proper control arm fitment from the options above.

      Please Note. This Suspension Kit is not compatible on Denali's equipped with the MagneRide Suspension.

      Shop All 6 to 8 Inch Truck Lift Kits

      Shop All Truck Parts And Accessories

      Shop All Truck Lift Kits



      Zone Offroad C25N


      CA Residents: WARNING: Cancer and Reproductive Harm -

      Installation & What's in the Box

      Installation Info

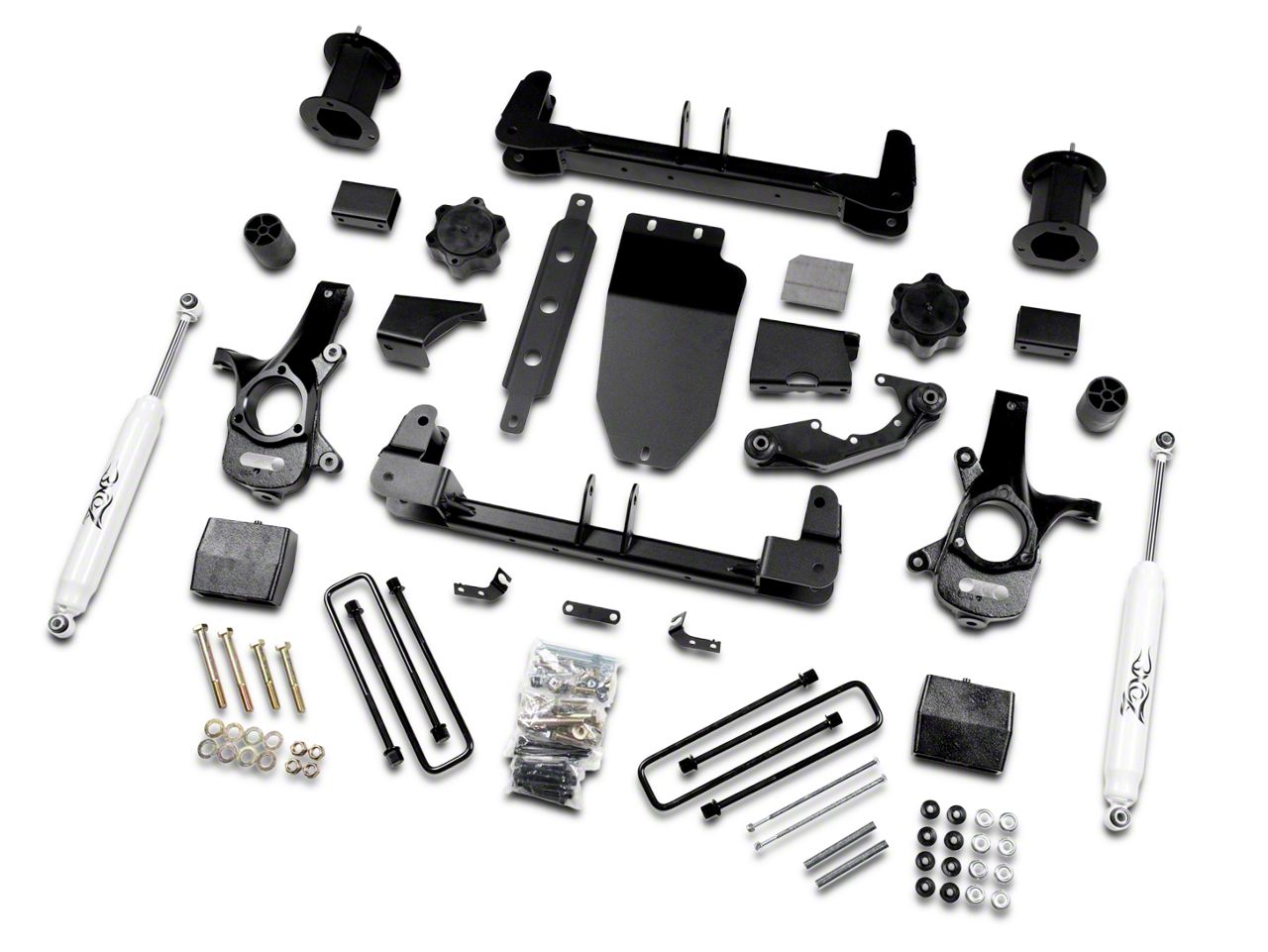

      What's in the Box

      • (1) Control Arm Pocket Plate
      • (1) Skid Plate
      • (2) Crossmember Bars: Front and Rear
      • (2) 4-inch Lift Blocks
      • (4) Cast Iron Blocks
      • (4) Steering Knuckles
      • (4) Brake Line Brackets
      • (4) Shocks
      • Installation Hardware


      Customer Reviews (48)

        Questions & Answers

        10 More Questions

        Will It Fit My Sierra 1500

        • 4.3L V6 - 14, 15, 16, 17, 18
        • 5.3L V8 - 14, 15, 16, 17, 18
        • 6.2L V8 - 14, 15, 16, 17, 18

        Not Compatible on Denalis with MagneRide Suspension
