Wilwood AERO6 Front Big Brake Kit with Drilled and Slotted Rotors; Black Calipers (99-18 Sierra 1500)

Item S510384
Product Image
Wilwood AERO6 Front Big Brake Kit with Drilled and Slotted Rotors; Black Calipers (99-18 Sierra 1500)
Verify parts fit and get product recommendations.
Sierra 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
2 Reviews
Our Price

$2,364.99 (kit)

FREE Shipping Market Price $2,719.74 You Save 13% ($354.75) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Designed for Heavy-Duty Stopping Power
      • Developed for Street and Track Applications
      • Uses AERO6 6-Piston Calipers
      • Features an Aluminum Alloy Billet Build
      • Coated With a Black Powder Finish
      • Includes SRP Drilled and Slotted Rotors
      • Made From Spec-37 Iron
      • Comes With Smartpad BP-10 Brake Pads
      • Engineered for Minimal Dust Production
      • Bolt-On Installation
      • Front Brake Kit
      • Fits All 1999-2018 GMC Sierra 1500 Models

      Description

      Stop at an Instant. If you’re looking for a cost-effective but high-performance braking system for your Sierra, then this Black Wilwood AERO6 Front Big Brake Kit with Drilled and Slotted Rotors are the perfect option for you. Utilizing 6-piston calipers, BP-10 brake pads and drilled and slotted rotors, this front brake kit will give you instant stopping power like no other. With a quick nudge on the brake pedal, this front brake kit will bring your Sierra to an immediate stop.

      AERO6 6-Piston Calipers. This Wilwood Front Big Brake Kit comes with high-grade AERO6 calipers built with an aluminum alloy billet and stainless steel pistons. A stress-flow forging technique helps eliminate stress and interruptions to the caliper’s internal grain structure for improved braking power. Wilwood then coats these calipers with a black powder finish for superior corrosion protection.

      SRP Drilled and Slotted Rotors. Wilwood’s SRP drilled and slotted rotors are manufactured from Spec-37 iron engineered to withstand harsh driving conditions. The drilled holes and vents help facilitate cooling, while the slots eliminate any trace of dust and gas to help prevent brake fade. Completing these rotors is a black electro-coat finish engineered to inhibit the formation of rust and corrosion.

      Smartpad BP-10 Brake Pads. Wilwood uses Smartpad BP-10 brake pads designed for high-performance street and track racing. The BP-10 compound allows for light to medium braking when driving over dirt tracks and features a low to medium wear rate. What’s more, this unique compound improves friction and lowers the dust produced compared to your Sierra’s factory pads.

      Bolt-On Installation. This Wilwood Front Big Brake Kit is designed for a direct bolt-on installation process. As a result, no drilling, cutting, or welding is required for this installation. Note that this big brake kit will not work with aluminum spindles.

      Front Brake Kit. This Wilwood Front Big Brake Kit comes with high-grade aluminum calipers, Spec-37 iron rotors, BP-10 brake pads, as well as the necessary hardware for installation.

      Brake Line Kit Required. This Wilwood Front Big Brake Kit will not work with your Sierra’s factory brake lines. A separate brake line kit must be used in order to properly install this brake kit.

      Application. This Black Wilwood AERO6 Front Big Brake Kit with Drilled and Slotted Rotors will fit all 1999-2018 GMC Sierra 1500 models.

      Application Note. A wheel with a minimum diameter of 18 inches is required for this Wilwood AERO6 Front Big Brake Kit.

      Shop All Truck Parts And Accessories

      Shop All Truck Big Brake Kits

      Shop All Truck Brakes

      Fitment:

      Wilwood 140-9789-D

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

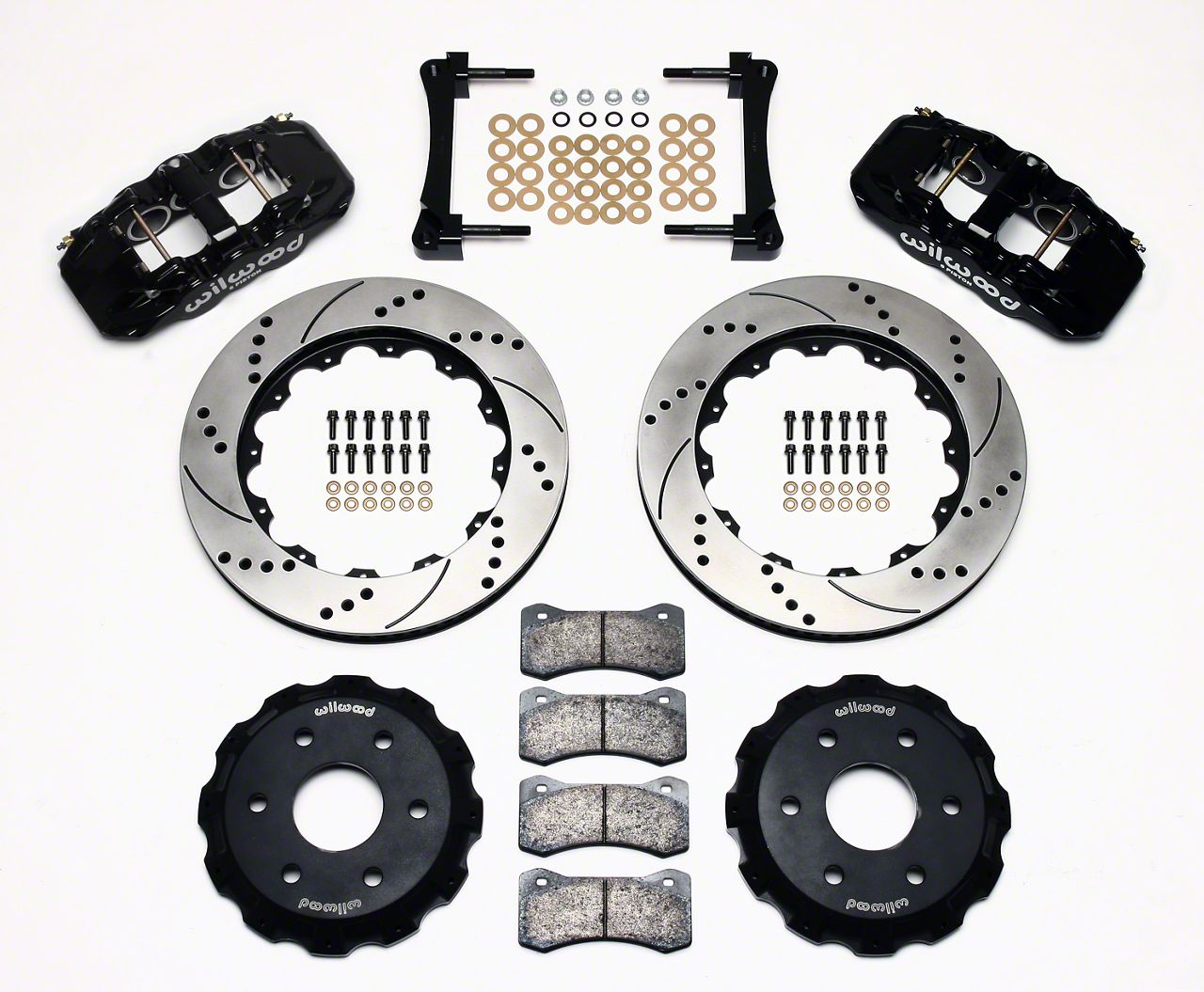

      What's in the Box

      • (1) Driver Side Front Rotor
      • (1) Passenger Side Front Rotor
      • (1) Driver Side Front Caliper
      • (1) Passenger Side Front Caliper
      • (2) Caliper Mounting Brackets
      • (1) Pad, BP-10 Compound, Axle Set
      • (16) 0.029-Inch Thick Shims
      • (16) 0.016-Inch Thick Shims
      • (2) 6 x 5.50-Inch Hats, 0.813-Inch Offset, 12 x 9.19-Inch Bolt Circle
      • (24) 0.265 ID x 0.500 OD x 0.63-Inch Washers
      • (24) 0.25-28 x 0.75 Long, 12 Point Bolts
      • (4) 0.437-20, Self-Locking, 12 Point Nuts
      • (4) 0.453 ID x 0.750 OD x 0.63-Inch Washers
      • (4) 0.437-14 x 0.437-20 x 3.375 Long Studs
