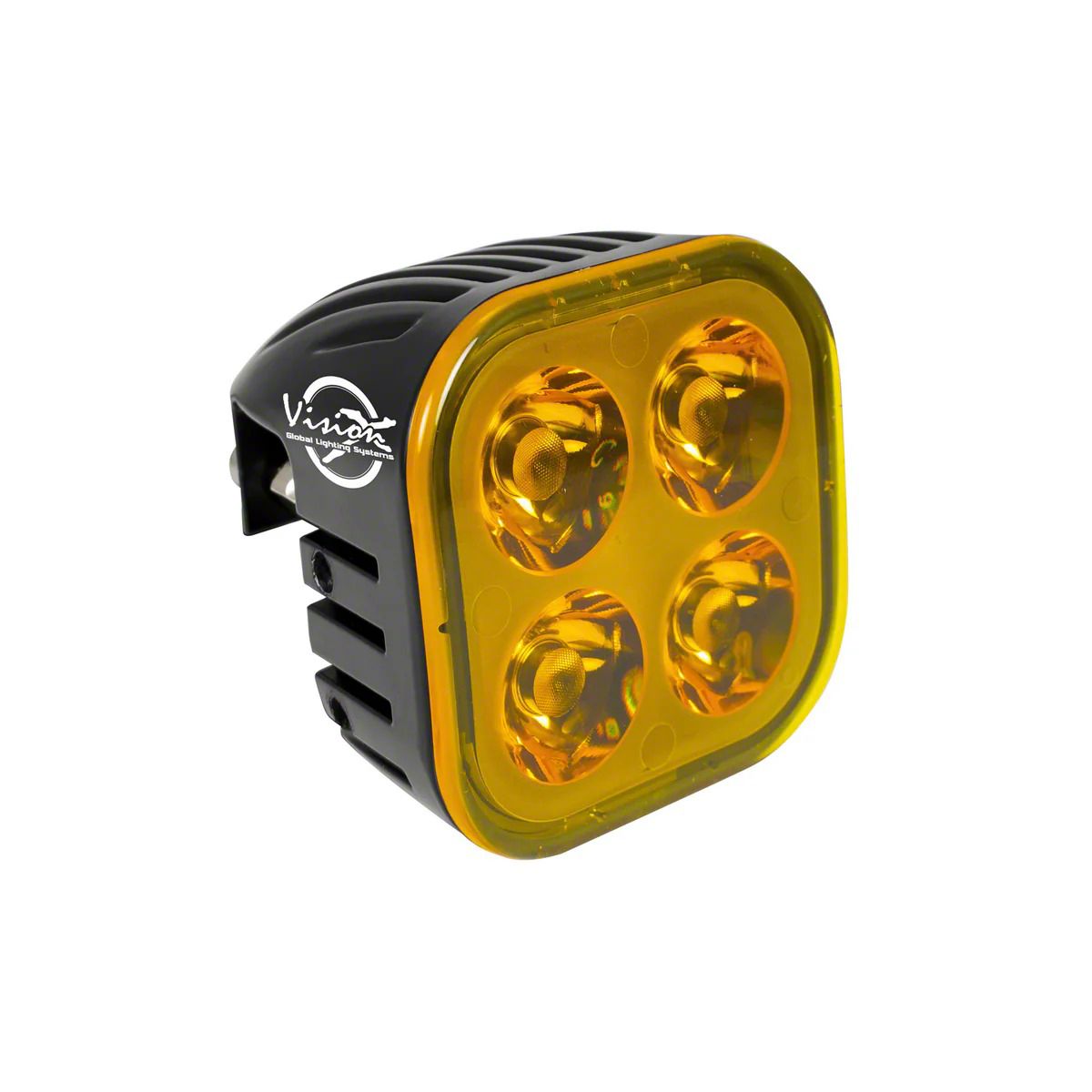

Vision X Unite Series LED Module Pod; Blackout Amber; Spot Beam (Universal; Some Adaptation May Be Required)

Item S596049
Product Image
AmericanTrucks no longer carries the Vision X Unite Series LED Module Pod; Blackout Amber; Spot Beam (Universal; Some Adaptation May Be Required). Please check out 1999-2006 GMC Sierra Lights for an updated selection.
61 Reviews of Vision X
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

      _x000D_
    • Single Module Only; Mounting Rail And Wiring Not Included
      • _x000D_
    • Modular LED Light Bar System With Customizable Configuration
      • _x000D_
    • Quick-Connect Mounting Rail Available In Straight Lengths From 6 Inches To 50 Inches
      • _x000D_
    • Build Your Own Custom Light Bar With Slide-On, Interchangeable Modules
      • _x000D_
    • 4-LED Advanced Optic Design Per Module With 12 Different Styles
      • _x000D_
    • Multiple LED Colors And Beam Patterns Including Spot, Flood, And Elliptical
      • _x000D_
    • Compact Dimensions Of 2.76 Inches Length, Width, And Height
      • _x000D_
    • Input Voltage Range From 9 To 32 Volts DC
      • _x000D_
    • Power Consumption Of Approximately 1.67 Amps
      • _x000D_
    • White LED Modules Provide 20 Watts And 2,112 Lumens
      • _x000D_
    • Amber LED Modules Provide 12 Watts And 510 Lumens
      • _x000D_
    • Selective Yellow And Amber Lens Options Provide 20 Watts And 2,112 Lumens
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    MODULAR LED LIGHT. The Vision X Unite Series LED Module Pod; Blackout Amber; Spot Beam is a versatile component designed for constructing custom LED light bars. It allows users to select desired modules to create tailored lighting solutions for various automotive and off-road applications. This modular design supports both white and amber LEDs with selectable beam patterns, providing optimal lighting performance based on specific needs.

    _x000D_

    CONSTRUCTION AND APPEARANCE. Each module features a compact design measuring 2.76 inches in length, width, and height, housing four advanced optic LEDs. The housing is finished in a blackout color, offering a sleek, low-profile aesthetic suitable for rugged environments. The lens options include amber and selective yellow, enhancing both function and style.

    _x000D_

    INSTALLATION. Installation requires mounting to a compatible quick-connect rail system, which is not included with the module. The process is straightforward, involving sliding the module onto the rail; minimal drilling or complex steps are necessary when using the matching rail system.

    _x000D_

    WARRANTY. The product includes a manufacturer-backed warranty for peace of mind (exact details available from the supplier).

    _x000D_

    APPLICATION. Designed for universal fitment with some adaptation required, this module pod is compatible with a wide range of vehicles and lighting setups, enabling customization to meet diverse off-road and automotive lighting demands.
