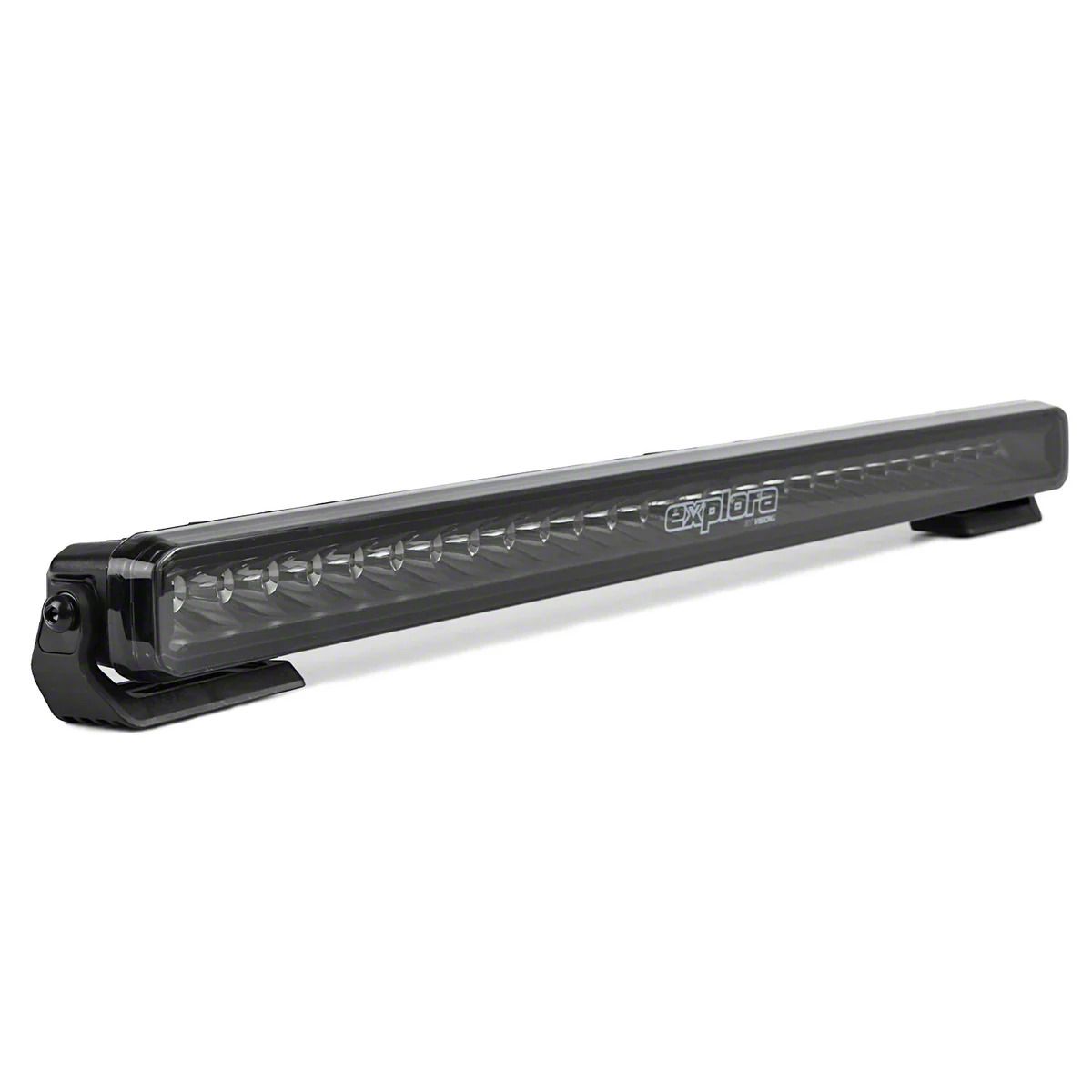

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item S596397
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Explora Series Lights Are Purpose-Built to Deliver Modern Styling on a Fully Customizable Platform, Providing Everyday Drivers with Unmatched Versatility at an Affordable Price
      • Switchback Dual-Color DRLs, Multi-Color Lens Options, and Multi-Color Trim Rings Offer Unlimited Customization Options Guaranteed to Complement Your Build
      • Powerful Beam Performance with an Internal Mosfet Relay System for Simplified Installation
      • Available in 10, 20, and 30 Inch Lengths, Offered in Both Single and Double Row Profiles
      • Next-Generation Circuit Design Features a 2-Position DRL Capable of Operating in White, Amber, or Switch-Back Mode
      • Switch-Back DRL Flashes Synchronously with the Factory Turn Signal
      • Interchangeable Snap-On Lens Covers Available in Yellow, Clear, Smoke, or Black-Out Finishes
      • Silicone Trim Rings Available in Red, Orange, Yellow, Green, Blue, and Pink for Personalized Styling
      • X-Drive LEDs Deliver 9,500 Lumens of Light Output
      • Ultra-Reflective Honeycomb-Style Optic Housing Eight High-Output CREE XTE LEDs for a Powerful Driving Beam
      • Dual-Color DRL Switchable Between Crisp White and Amber to Match OEM Marker Lights
      • Swappable Lens System Includes a Smoked Lens, Replaceable with Clear or Selective Yellow Options
      • Custom Colored Rubber Trim Rings Fully Surround the Outer Lens for a Distinct Look
      • Modular Wiring Harness with Internal Relay Allows Operation via Trigger Wire or Universal Switch
      • Power Consumption: 140 Watts at 11.67 Amps
      • Raw Light Output: 9,500 Lumens
      • Beam Distance: 1,771 Feet (540 Meters)
      • Beam Width: 197 Feet (60 Meters)
      • 3-Pin DT Connector
      • Color Temperature: 6000K
      • Operating Voltage Range: 9 to 32 Volts DC
      • Pod Size: 30.50 Inches Long by 2.52 Inches Deep
      • Pod Weight: 4.5 Pounds
      • IP68 and IP69K Rated for Waterproof Submersion and High-Pressure Spray Resistance
      • EMC Compliance: CISPR 25, CE, and UKCA Certified
      • Includes One Light Bar, One Smoked Lens Cover, Black Zinc Mounting Hardware, and Single-Light Modular Wiring Harness
      • Universal Fit; Some Adaptation May Be Required

      Description

      Advanced LED Light Bar. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL and Flood/Spot Combo Beam is engineered to provide powerful, versatile lighting for both off-road and everyday driving. It enhances visibility with customizable light output, including white and amber daylight running lights (DRL) that synchronize with your vehicle's turn signals. This light bar is ideal for users seeking a modern, efficient, and stylish lighting upgrade that improves safety and vehicle aesthetics.

      Construction and Appearance. Constructed from durable materials and featuring a high-quality black zinc finish on the mounting hardware, this light bar includes an ultra-reflective honeycomb-style optic housing eight CREE XTE LEDs. The modular design has swappable snap-on lens covers offered in several colors, along with customizable silicone trim rings to create a personalized look. The light bar is rated IP68 and IP69K, providing resistance to water immersion and high-pressure sprays.

      Installation. Installation is straightforward with an internal mosfet relay that eliminates the need for external relays. Wiring can be completed with a modular harness that supports operation via either a trigger wire or universal switch. Minimal modification or drilling is typically required, making installation accessible for both automotive enthusiasts and professionals.

      Warranty. This product comes with a limited lifetime warranty covering defects in materials and workmanship.

      Application. Designed for universal fitment; some adaptation may be necessary to ensure compatibility with specific vehicles.

      Vision X EX-LB28S
