Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details

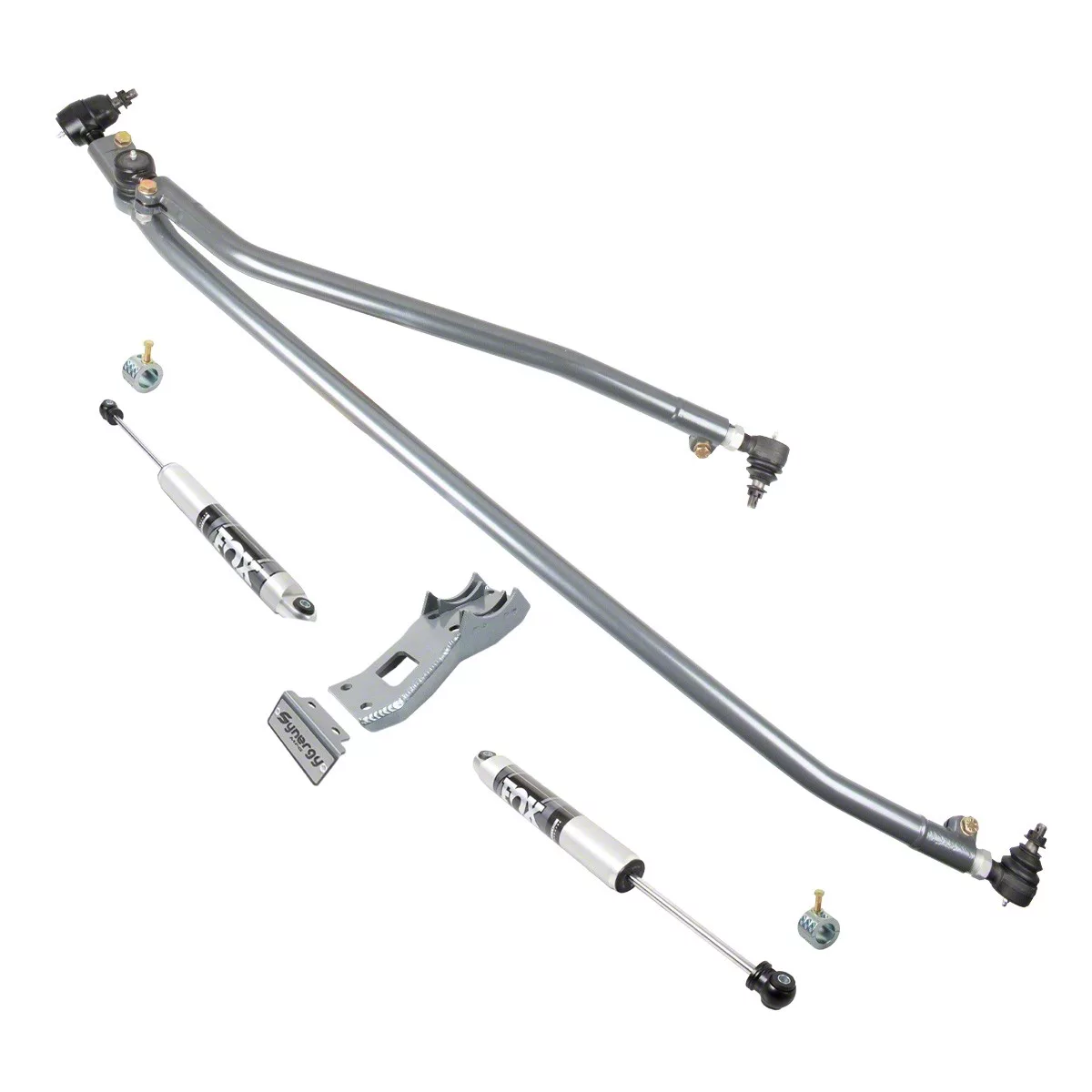

Synergy Manufacturing HD Steering Kit with Dual Steering Stabilizer Brackets (03-12 4WD RAM 3500)Find parts that fit my vehicle
Item SHR49171
Our Price
$1,940.00 kit
Military, Medical & First Responders
$97.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Heavy Duty Drag Link Is Precision Bent To Clear Factory Axle Brackets And Is Compatible From Stock To 4" Lifted Vehicles
- Vehicles Over 4" Of Lift Will Require A Drop Pitman Arm For Compatibility
- Heat Treated Tie Rod Is Over 200% Stronger Than OEM And Formed Post Heat Treating For Superior Strength
- Engineered For Maximum Articulation, The Heavy Duty Tie Rod Is Bent To Clear Sway Bar Mounts, Differential Cover, And Steering Pitman Arm
- Heavy Duty Tie Rod Ends Are Larger, Stronger, And More Durable Than Stock And Include Grease Fittings And Dust Boots With Retaining Rings For Easy Maintenance
- Single Plane Tie Rod Ends Eliminate Unwanted Drag Link Or Tie Rod Movement And Prevent The Dead Spot When Changing Direction
- Kit Is Fully Adjustable While Installed In The Vehicle, Thanks To Double Adjuster Sleeve And Pinch Bolt Assembly
- Drag Link And Tie Rod Are Fully Sealed From The Elements Thanks To Forged Pinch Bolt Housings And Complete Welded Assembly
- Provides 2" Of Additional Ground Clearance From Stock While Adding Critical Strength
- Fabricated Clamp Designed To Retain The Factory Stabilizer, Fox Stabilizers, Or Other Aftermarket Stabilizers With 1/2" Mounting Bolts
- Pinch Bolt Design Eliminates Jam Nuts, Preventing Loosening And Alignment Creep
- Drag Link Is Precision Bent From 1.5" X .250 Wall USA Made DOM
- Tie Rod Is Engineered And Bent From 1.5" X .188 Wall Heat Treated 4130 Chromoly
- Two Stage Abrasion Resistant Powder Coat Finish For Maximum Durability And Corrosion Resistance
- Metal On Metal, Fully Greaseable Tie Rod Ends Include 4140 Steel Shank, 1018 Steel Bearing Housing, And Heavy Duty Nitrile-Butadiene Rubber Boot With Retaining Spring
- Double Adjuster Sleeve And Pinch Bolt Assembly For Easy Alignment
- 100% Bolt On Components Assures Easy, Trouble Free Installation Using Basic Hand Tools
- Min Collapsed Length: Drag Link 35.375", Tie Rod 59.75"
- Max Extended Length: Drag Link 37.375", Tie Rod 62"
- Fits 03-12 4WD RAM 3500, Compatible With Ram 3500 4x4 Cab And Chassis Models Of Same Generation, Not Compatible With 4500/5500 Models, Early 2013 Model Uses T-Style Steering; Late 2013 Uses Crossover Steering
Description
Heavy Duty Steering Upgrade. The Synergy Manufacturing HD Steering Kit with Dual Steering Stabilizer Brackets is a comprehensive bolt-on steering system designed to dramatically enhance steering precision and durability for your Ram truck. It replaces the factory Y-style geometry with a modern T-style setup, eliminating excessive toe changes and bump steer issues often found in crossover conversions. This kit is ideal for daily drivers, heavy haulers, and off-road enthusiasts seeking improved control and reliability.
Construction and Appearance. Built in the USA, this kit features a precision bent drag link crafted from 1.5" x .250" DOM steel and a heat-treated 4130 chromoly tie rod formed from 1.5" x .188" tubing. Components are fully welded and sealed with forged pinch bolt housings and finished with a two-stage abrasion-resistant powder coat for superior corrosion resistance. The metal-on-metal tie rod ends incorporate 4140 and 1018 steel elements with heavy-duty rubber boots, grease fittings, and retaining springs for long-lasting performance and easy maintenance.
Installation. This steering kit offers 100% bolt-on installation using basic hand tools, requiring no drilling or reaming. The fully adjustable double adjuster sleeve and pinch bolt assembly facilitate easy alignment and precise setup.
Application. Designed specifically for 03-12 4WD RAM 3500 trucks, including compatible 4x4 Cab and Chassis models within the same generation. Note that the 2013 model year is a split production year; early models feature T-style steering geometry compatible with this kit, whereas late 2013 models use crossover steering and require a different part number. This kit is not compatible with 4500 or 5500 model trucks.
Synergy Manufacturing 8525-21
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Steering Kit
3.0
Customer Reviews (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 3500
- 5.7L V8 - 03, 04, 05, 06, 07, 08, 09, 11, 12
- 5.9L I6 - 03, 04, 05, 06, 07, 08
- 6.7L I6 - 07, 08, 09, 10, 11, 12
- 8.0L V10 - 03
