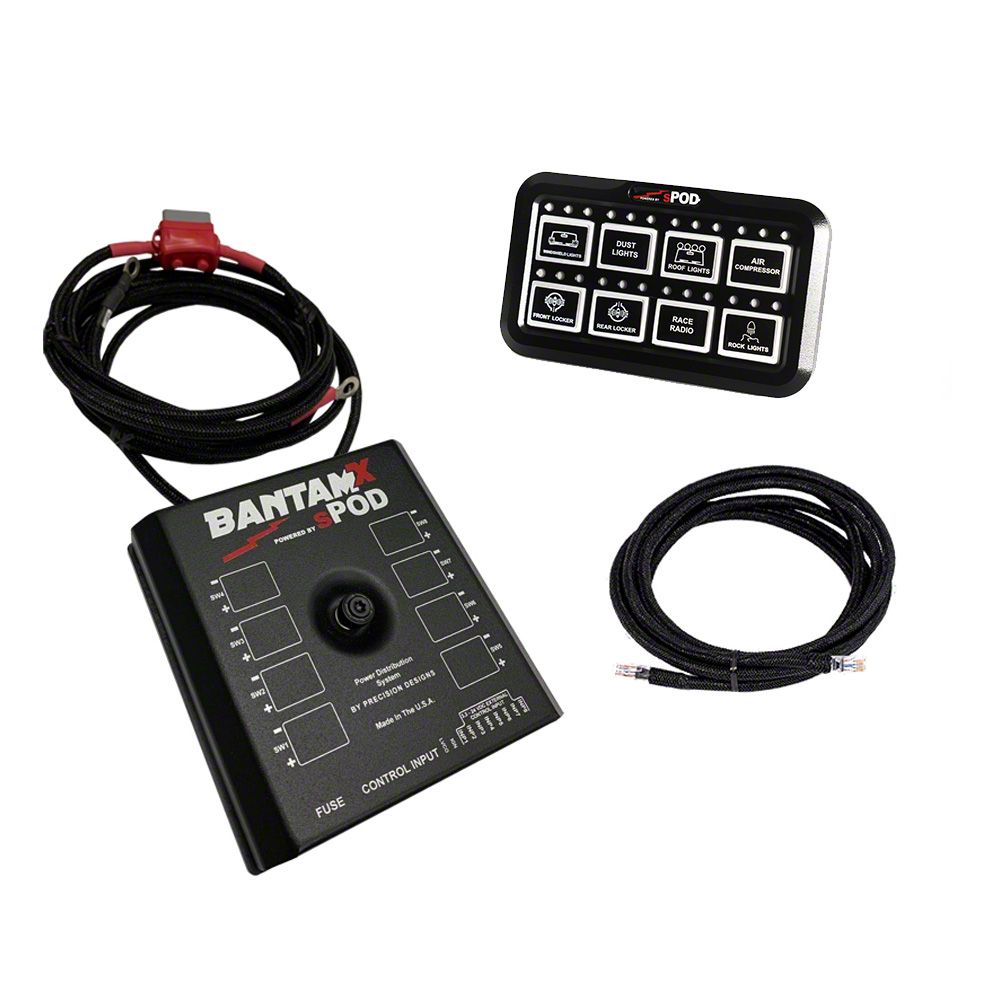

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)

Item GCY7509
Product Image
1 Reviews of sPOD
Our Price

$1,006.50

Military, Medical & First Responders $50.33 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Fully Programmable, Digital Controlled System
        • _x000D_
      • Eight Circuits Rated At 30 Amps At 12.5 VDC Per Circuit
        • _x000D_
      • 16-Position Terminal Block For Easy Accessory Attachment
        • _x000D_
      • Two Controller Ports (RJ45) For Ethernet Cables
        • _x000D_
      • Integrated Low Voltage Cutoff Battery Protection With Optional Override
        • _x000D_
      • One ATM Mini-Style Fuse For LVCO Protection And Reset
        • _x000D_
      • Failsafe Self-Healing Fault Protection System From 1.5 To 30 Amps
        • _x000D_
      • Current-Sensing MOSFETs Controlled By Microprocessor With No Fuses Or Relays
        • _x000D_
      • 100 Amp In-Line Fuse
        • _x000D_
      • Nylon Braided Battery Cables Of Hi-Strand Crosslinked Copper Wire With Silicone Jacket
        • _x000D_
      • Operates On 12VDC Or 24VDC
        • _x000D_
      • Eight-Position Input Terminal Block For Controlling Outputs
        • _x000D_
      • Built-In Bluetooth Capabilities For Remote Control
        • _x000D_
      • Protection Against Overheating, Over-Current, Shorts, Reverse Polarity, And Field Collapse
        • _x000D_
      • Optional Ignition Control And Safety Lock-Out For Switches One And Two
        • _x000D_
      • On-Demand Wireless Software Updates And Upgrades
        • _x000D_
      • Compact Footprint Allowing Endless Placement Options
        • _x000D_
      • Powder Coated Steel Base With Built-In Hardware And Silicone Gasket For Weatherproofing
        • _x000D_
      • Simple Thumb Screw Aluminum Lid With Silkscreened Outlines For Legend Placement
        • _x000D_
      • Universal And Vehicle Specific Mounting Options
        • _x000D_
      • HD Control Panel Encased In Powder Coated Black Aluminum Billet With Silicone Tactile Switches
        • _x000D_
      • HD Panel Equipped With RJ45 Jack And Bluetooth LE For Programming
        • _x000D_
      • Backlit Switches With Adjustable RGB Color And Intensity
        • _x000D_
      • Programmable Switch Functions Including Dimming, Strobe, Flash, Momentary, And Switch Linking
        • _x000D_
      • Supports External Controllers Such As Third Party Switches, Arduino, Raspberry Pi, And More
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is a highly versatile, fully programmable power control system designed to manage 12V or 24V DC electrical accessories efficiently. It simplifies complex wiring by consolidating control into one compact unit with an Ethernet connection to the cab, significantly reducing installation time and complexity. This system enhances vehicle electrical management, providing critical battery protection and customizable circuit control for a wide range of aftermarket accessories.

      _x000D__x000D_

      Construction and Appearance. Built on a powder coated steel base with an integrated silicone gasket, the unit offers excellent weatherproofing and durability. The aluminum billet machined HD control panel is powder coated black and features tactile silicone-encapsulated switches designed to withstand harsh environmental conditions. The nylon braided battery cables feature high-strand crosslinked copper with a silicone jacket for superior conductivity and flexibility.

      _x000D__x000D_

      Installation. Installation is user-friendly and requires no cutting or tapping into factory wiring, minimizing the need for drilling. The system's compact design and universal mounting options allow for flexible placement within the vehicle.

      _x000D__x000D_

      Warranty. This product comes with a standard manufacturer�s warranty covering defects in materials and workmanship.

      _x000D__x000D_

      Application. Fits universal applications with some adaptation required to accommodate specific vehicle configurations and mounting preferences.

      sPOD BXHDUNI36

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Reviews of sPOD Interior Products (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question
