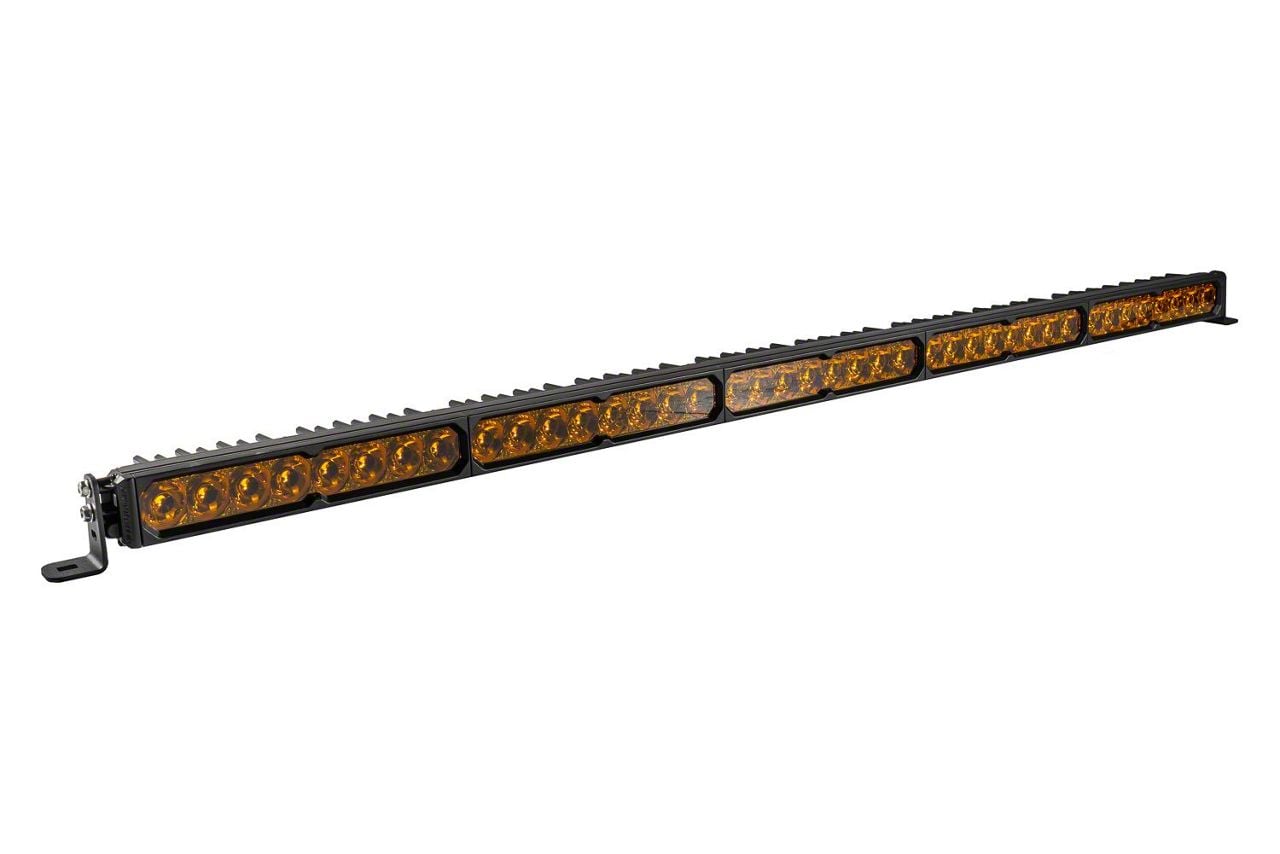

Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item S599920
Our Price
$999.95
Military, Medical & First Responders
$50.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 315,000 Cd To 835,000 Cd Depending On Optic And Power Level _x000D_
- Raw Output From 18,440 Lumens To 62,720 Lumens _x000D_
- Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage 9-30V; Current Draw Between 16.56 Amps To 23.05 Amps At 12.8V _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters _x000D_
- Deutsch DT-P Connector Input _x000D_
- Construction Includes Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink _x000D_
- Product Dimensions: 2.01 Inches Height, 51.63 Inches Width, 2.46 Inches Depth _x000D_
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set _x000D_
- Installation Time Approximately 30-60 Minutes Using Basic Toolset _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
HIGH-PERFORMANCE OFF-ROAD LIGHTING. The Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight and Yellow Spot beam delivers exceptional illumination designed for demanding off-road and automotive applications. Engineered with advanced optics and high-output LEDs, this light bar enhances visibility through fog, rain, and snow, improving safety and performance in inclement weather. Its focused spot beam provides excellent long-range visibility while minimizing glare.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted with a robust aluminum housing finished in an ASTM-standard powdercoat, this light bar emphasizes durability and corrosion resistance. The lens is made of polycarbonate material, housed in a fully encapsulated design engineered for an IP69K waterproof rating, ensuring reliable operation in extreme environments. Copper and aluminum PCBs combined with a passive heatsink cooling system support optimal thermal management.
_x000D__x000D_INSTALLATION. Installation requires basic tools and typically takes 30 to 60 minutes. The process involves mounting with the included universal bracket set, with some adaptation possible depending on the vehicle and mounting location; no complex drilling is generally necessary.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, providing assurance of long-term reliability and support from the manufacturer.
_x000D__x000D_APPLICATION. This light bar fits universally across a variety of vehicles and setups; however, some adaptation may be required to ensure proper fit and compatibility depending on specific applications or mounting configurations.
