Find LED Light Bars for your Sierra 1500

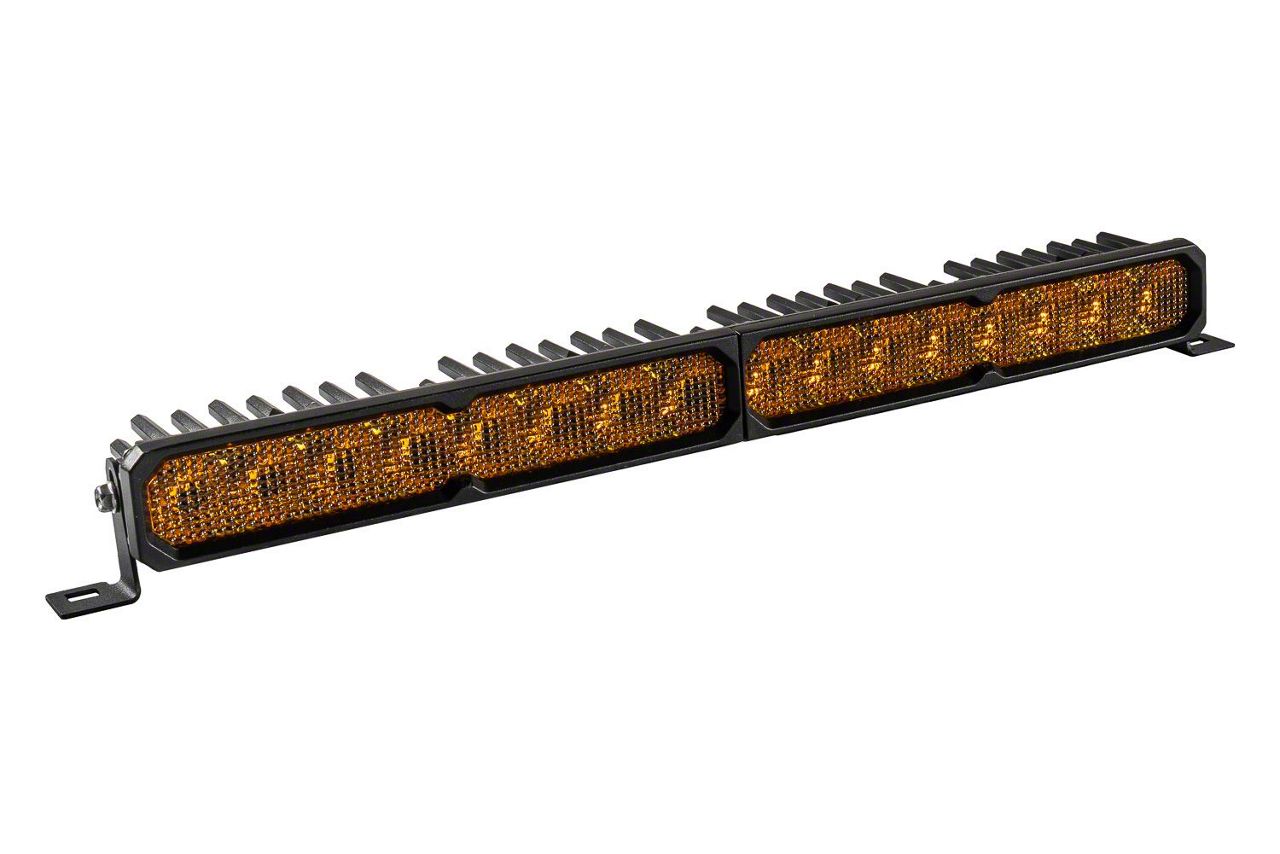

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item S599840
Our Price
$399.95
Military, Medical & First Responders
$20.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In USA With Globally Sourced Materials _x000D_
- Operating Voltage From 9 To 30V _x000D_
- Sport Power Level Draws 5.98 Amps At 12.8V _x000D_
- Pro Power Level Draws 8.20 Amps At 12.8V _x000D_
- LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade _x000D_
- Connector Type Is Deutsch DT Input _x000D_
- Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, And Stainless Steel Brackets _x000D_
- Cooling Method Is Passive Heatsink _x000D_
- Operating Temperature Range From -40C To 85C (-40F To 185F) _x000D_
- Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, And Spot 8°x8° _x000D_
- Raw Output Lumens Vary From 7,376 To 25,088 Depending On Power Level _x000D_
- Peak Beam Intensity Ranges From 4,000 To 336,000 Candela Based On Beam Pattern And Power _x000D_
- Fully Illuminated Amber Backlight Fills TIR Optic _x000D_
- Dimensions Are Approximately 2.01x20.24x2.37 Inches _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
Advanced LED Off-Road Lighting. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Flood is designed to deliver powerful, focused illumination for off-road and low visibility conditions. This light bar is ideal for improving visibility in inclement weather such as fog, rain, and snow by reducing glare and providing enhanced contrast with its 3000K yellow output. It is engineered to provide superior light projection for a variety of applications where reliable and intense lighting is essential.
_x000D_Construction and Appearance. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. It incorporates patented TIR optics to maximize light output efficiency and includes a fully illuminated amber backlight that offers a unique aesthetic and additional visibility. The high-quality materials used include an aluminum and copper PCB, polycarbonate lens, aluminum heatsink for passive cooling, and stainless steel mounting brackets, ensuring longevity and reliability even in extreme environments.
_x000D_Installation. Installation typically requires 30 to 60 minutes using basic tools, with no complex procedures necessary. The universal mounting brackets allow for flexible placement, although some adaptation may be required depending on the installation scenario.
_x000D_Warranty. This product is backed by a limited lifetime warranty to protect against defects in materials and workmanship.
_x000D_Application. Designed to fit universally; some adaptation may be required to accommodate specific mounting locations or vehicle configurations.
