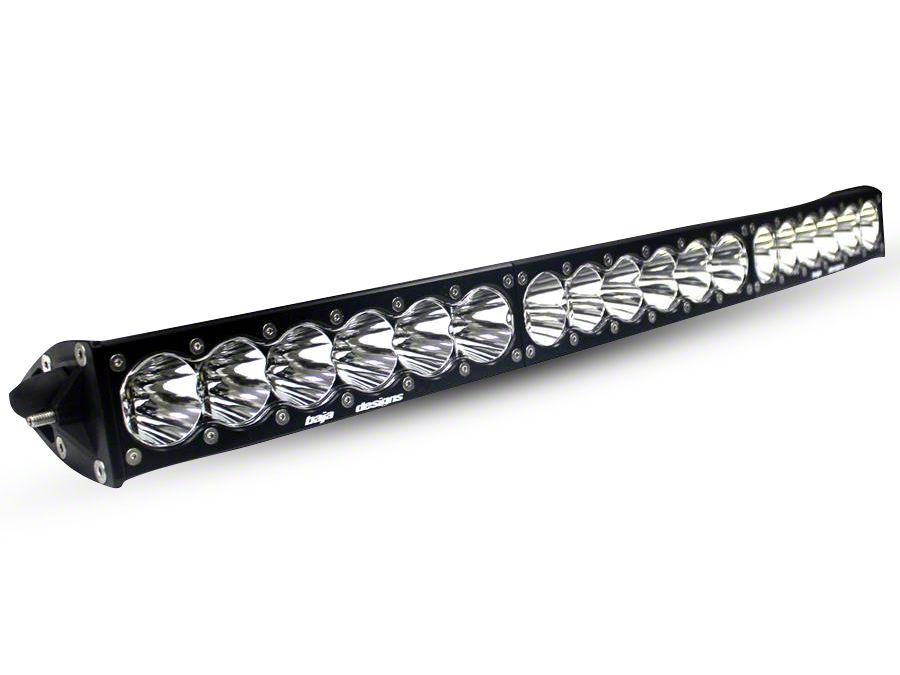

Baja Designs 30-Inch OnX6 Arc LED Light Bar; High Speed Spot Beam (Universal; Some Adaptation May Be Required)

Item S504538
Product Image
161 Reviews of Baja Designs
Our Price

$1,338.95 each

Military, Medical & First Responders $66.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Amperage Rating 21.7 A High 17.1 A Low
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Beam Pattern Spot
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 32,070 Lumens High 25,610 Lumens Low
        • _x000D_
      • Description Arc Spot Clear
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam Low Beam
        • _x000D_
      • Lighting Quantity 18
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6+ 30 Inch Arc LED Light Bar
        • _x000D_
      • Wattage 278 Watts High 222 Watts Low
        • _x000D_
      • Wiring Harness Description Hi-Low Dongle
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards And Compliance Exceeds Mil-Std810g IK10 Compliant IP69K
        • _x000D_
      • Fits Universal Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE SPOTLIGHT. The Baja Designs 30-Inch OnX6 Arc LED Light Bar with High-Speed Spot Beam combines advanced LED technology with a precision spot reflector for focused, long-distance illumination. This light bar significantly enhances visibility during nighttime off-road driving and work applications, providing clearer sightlines in challenging conditions.

      _x000D__x000D_

      PREMIUM CONSTRUCTION AND APPEARANCE. Constructed from aircraft-grade aluminum with a mil-spec hard anodize finish, the housing offers exceptional durability and resistance to corrosion. The billet machined aluminum bezel and hardcoated polycarbonate clear lens provide excellent protection while delivering a sleek black finish that complements rugged vehicle exteriors.

      _x000D__x000D_

      INSTALLATION. The light bar is designed for easy installation using included stainless steel mounting brackets. Depending on your vehicle and mounting location, minor drilling may be necessary.

      _x000D__x000D_

      WARRANTY. This product is backed by a limited lifetime warranty for reliable long-term performance and peace of mind.

      _x000D__x000D_

      APPLICATION. Suitable for universal vehicle mounting with some adaptation required. Note that the wiring harness is not included and must be purchased separately.

      Baja Designs 523001

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) 30” Arc Series LED Light Bar
      • (2) Mounting Brackets
      • Installation Instructions
