Find for your Ram 3500

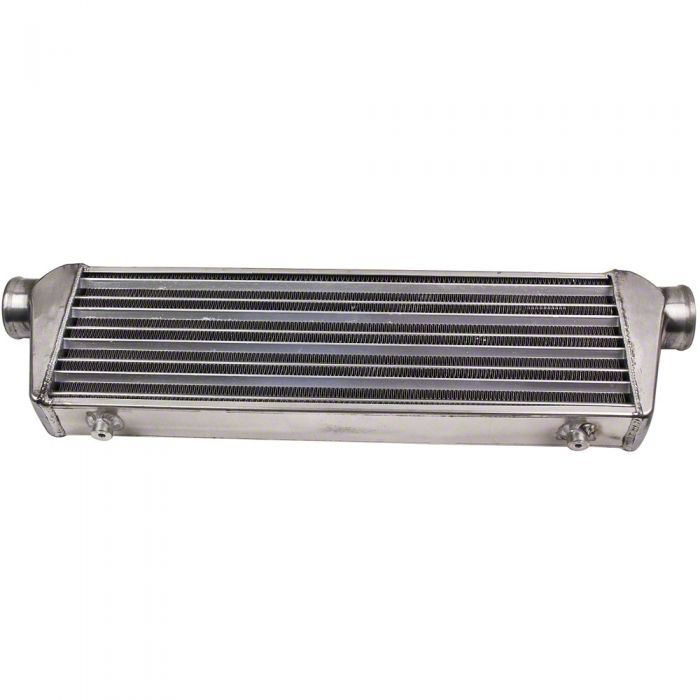

Front Mount Aluminum Intercooler; 27-Inch x 7-Inch x 2.50-Inch (Universal; Some Adaptation May Be Required)
Item SHR59879
Our Price
$139.99 each
Military, Medical & First Responders
$7.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Intercooler Exchange Device Used On Turbocharged And Supercharged Internal Combustion Engines To Improve Their Volumetric Efficiency By Increasing Intake Air Charge Density Through Nearly Isobaric Cooling _x000D_
- Removes Heat Of Compression Occurring When Pressure Is Raised Or Unit Mass Per Unit Volume Is Increased _x000D_
- Overall Size: 27" X 7" X 2.5" (690mm X 175mm X 64mm) _x000D_
- Core Size: 21" X 7" X 2.25" (550mm X 175mm X 57mm) _x000D_
- Inlet / Outlet Size: 2.5" _x000D_
- Compress Air Flow Rate Under 350 Cubic Feet / Min _x000D_
- Rated Up To 500 Max HP _x000D_
- Pressure Drop Ranges From 2 To 5 Psi At 35 Psi And 0.2 To 0.5 Psi At 15 Psi _x000D_
- Lightweight Design Constructed With T6061 Aluminum, Precision Tig Welded _x000D_
- Tube And Fin Design For Efficient Cooling _x000D_
- Extremely Strong One-Piece Cast Aluminum End Tanks Withstand High Boost Pressures _x000D_
- PSi Drop Under 0.2, Lower Than Typical Intercoolers _x000D_
- Max PSi Is 30 Up To 400HP _x000D_
- Quantity: 1 Piece _x000D_
- 100% Brand New Condition _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Intercooler. The Front Mount Aluminum Intercooler; 27-Inch x 7-Inch x 2.50-Inch is designed to efficiently cool the intake air charge in turbocharged and supercharged engines. By reducing air temperature, it increases air density and thus improves engine volumetric efficiency and performance, helping to sustain power output and prevent heat-induced power loss.
_x000D__x000D_Construction and Appearance. This intercooler is made from T6061 aluminum, featuring a tube and fin design for optimal airflow and cooling efficiency. The core and end tanks are precision TIG welded and crafted as a one-piece cast aluminum unit, providing high strength and durability. Its lightweight design aids in performance gains without significant weight penalty.
_x000D__x000D_Installation. Installation requires professional expertise due to the universal fitment nature of the product, with no instructions included. Some customization or adaptation may be necessary to fit specific vehicles, and drilling or modifications might be needed depending on the application.
_x000D__x000D_Warranty. This intercooler comes with a one-year warranty, assuring quality and reliability for the purchaser.
_x000D__x000D_Application. This intercooler is universal and designed to fit a wide range of vehicles but requires correct measurements and some adaptation to ensure proper fitment.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Aluminum Intercooler Unit
- (2) Welded End Tanks
- Instructional Manual
