RedRock TCX HD Front Bumper (19-24 RAM 1500, Excluding Rebel & TRX)
Item R190199
$0.00
2 Reviews
Our Price
$644.99 each
Coupon
Military, Medical & First Responders
Earn $64.50 in AT Cash Rewards. Get Verified
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- TCX HD Front Bumper with Splash Guard
- Heavy Duty Steel Plate and Tube Construction
- Textured Black Powder-Coated Finish
- Two 3-inch LED Cube Fog Lights Included
- Bolt-On Installation
- Installation Requires Modifying the Factory Fender Flares
- Fits 2019-2024 RAM 1500 Models, Excluding Rebel and TRX
| Brand | RedRock |
| Bumper Type | Full Width |
| Bumper Material | Steel |
| Bumper Finish | Black |
| Bumper Winch Mount | No Winch Mount |
| Bumper Fog Light Fitment | Aftermarket |
| Bumper Location | Front |
Description

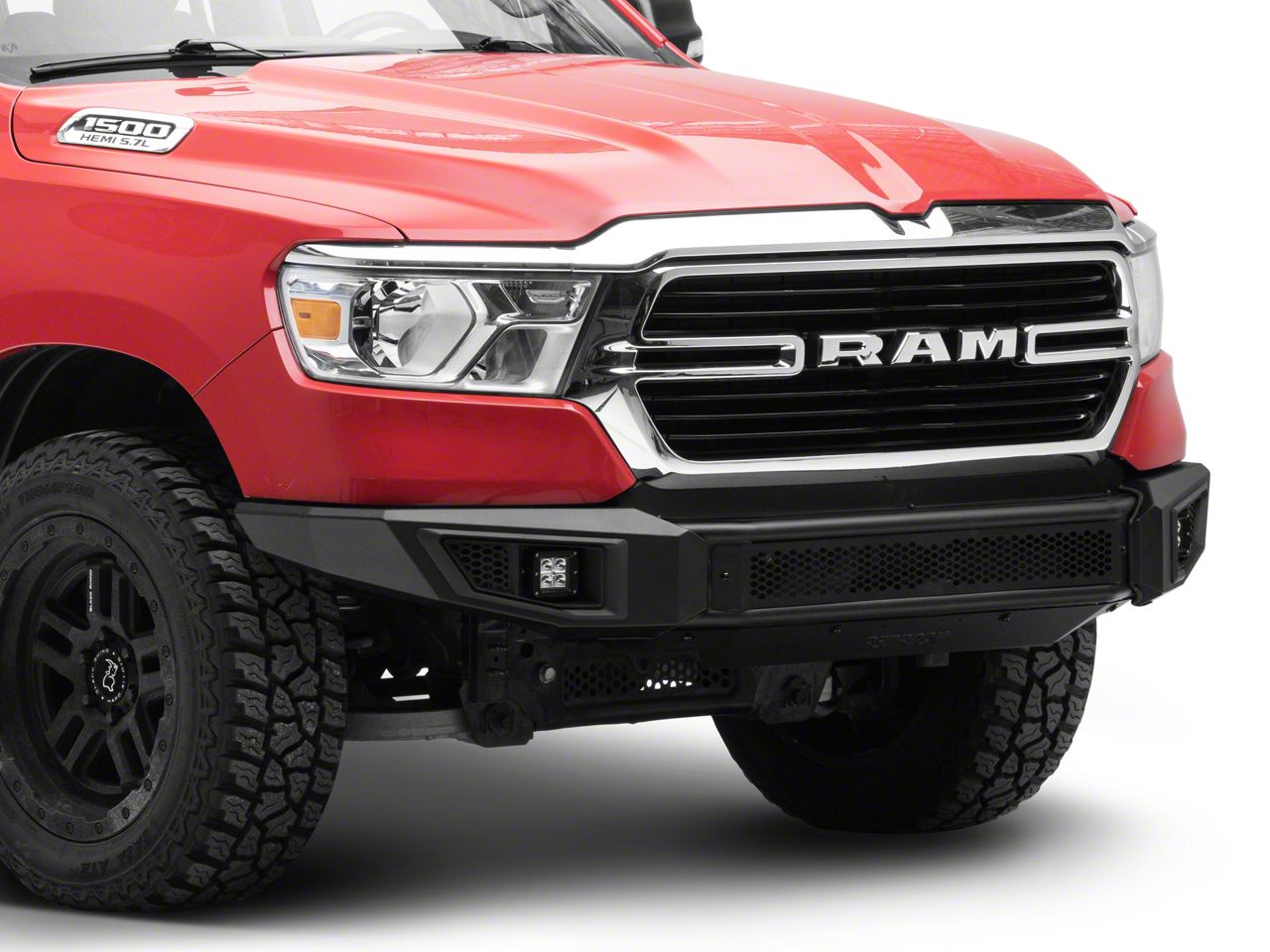

Rugged Styling. RedRock's TCX HD Front Bumper will give your 2019-2024 RAM 1500 a rugged off-road appearance with its classic tubular styling. Designed to replace the stock factory bumper, this heavy-duty TCX HD Front Bumper features a Splash Guard. RedRock's TCX HD Front Bumper will add additional front-end protection allowing you to confidently handle the bumps and bruises of off-road and daily driving.
LED Fog Lights. This Front Bumper includes (2) 3-inch square LED Fog Lights. These fog lights are equipped with 5 Watt CREE LEDs that are designed to provide intense 6000 K light. Each light is rated IP67 providing reliable waterproof performance, thanks to a tough aluminum housing, sealed with a polycarbonate lens.
Heavy-Duty Construction. RedRock manufactures their TCX HD Front Bumper to precise specifications from 5/32 inch thick mild steel plating and 2 x 0.120 inch tubing for superior strength and rigidity. RedRock then completes their Bumper in a two stage finish using epoxy pre-coating and high-grade textured black powder coating for long lasting durability.
Bolt-On Installation. RedRock engineered their Front Bumper to be a bolt-on replacement for the original stock bumper reusing the factory mounting points. Please note that installation requires modifying the factory fender flares. Installation can be completed in about two hours with just basic hand tools and the help of a friend.
Application. This TCX HD Front Bumper is designed to fit 2019-2024 RAM 1500 models, excluding Rebel and TRX.
RedRock R190199
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Bumper (main assembly)
- (1) Top Fill Panel
- (1) Splash Guard
- (1) License Plate Bracket
- (2) Square Plastic Plug
- (1) Right / Passenger Side Frame Bracket
- (1) Left / Driver Side Frame Bracket
- (2) LED Light “J” Shape Bracket
- (2) LED Cube Light — wire harness included (see cube light parts list)
- (1) Cube Light Wiring Harness (part of cube light kit)
- (4) Preinstalled insert nuts in bumper tabs (used when attaching splash guard)
- (4) 10mm x 30mm Hex Bolt (Use to Attach Wings to Bumper)
- (4) 10mm x 20mm x 2mm Flat Washer (Use to Attach Wings to Bumper)
- (4) 10mm Lock Washer (Use to Attach Wings to Bumper)
- (6) 12mm x 35mm Hex Bolt (Use to Attach Bumper and Brackets to the Vehicle)
- (12) 12mm x 32mm x 3mm Flat Washer (Use to Attach Bumper and Brackets to the Vehicle)
- (6) 12mm Lock Washer (Use to Attach Bumper and Brackets to the Vehicle)
- (6) 12mm Hex Nut (Use to Attach Bumper and Brackets to the Vehicle)
- (6) 10mm x 35mm Hex Bolt (Use to Attach Bumper and Brackets to the Vehicle)
- (12) 10mm x 27mm x 3mm Flat Washer (Use to Attach Bumper and Brackets to the Vehicle)
- (6) 10mm Lock Washer (Use to Attach Bumper and Brackets to the Vehicle)
- (6) 10mm Hex Nut (Use to Attach Bumper and Brackets to the Vehicle)
- (4) 8mm x 25mm Button Head Bolt (Use to Attach Splash Guard to the Bumper)
- (4) 8mm Lock Washer (Use to Attach Splash Guard to the Bumper)
- (4) 8mm x 24mm Flat Washer (Use to Attach Splash Guard to the Bumper)
- (2) 8mm x 16mm Hex Bolt (Use to Attach 30” LED Light Bar to the “J” Shape Brackets)
- (2) 8mm Lock Washer (Use to Attach 30” LED Light Bar to the “J” Shape Brackets)
- (2) 8mm x 24mm x 2mm Flat Washer (Use to Attach 30” LED Light Bar to the “J” Shape Brackets)
- (3) 6mm x 20mm Button Head Bolt (Use to Attach Top Filler Panel to the Bumper)
- (3) 6mm x 12mm x 1.6mm Flat Washer (top) (Use to Attach Top Filler Panel to the Bumper)
- (3) 6mm x 18mm x 1.6mm Flat Washer (bottom) (Use to Attach Top Filler Panel to the Bumper)
- (3) 6mm Nylon Lock Nut (Use to Attach Top Filler Panel to the Bumper)
- (2) 6mm x 20mm Button Head Bolt (Use to Attach License Plate Bracket to the Splash Guard)
- (4) 6mm x 18mm x 1.6mm Flat Washer (Use to Attach License Plate Bracket to the Splash Guard)
- (2) 6mm Nylon Lock Nut (Use to Attach License Plate Bracket to the Splash Guard)
- (2) Plastic plugs for license plate
- (2) Lights (Cube LED light kit parts)
- (1) Wiring Harness (Cube LED light kit parts)
- (2) 8mm Hex Bolt (Cube LED light kit parts)
- (2) 8mm Flat Washer (Cube LED light kit parts)
- (2) 8mm Hex Nut (Cube LED light kit parts)
5.0
Customer Reviews (2)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 1500
- 3.0L V6 EcoDiesel - 20, 21, 22, 23
- 3.6L V6 - 19, 20, 21, 22, 23, 24
- 5.7L V8 - 19, 20, 21, 22, 23, 24
- 6.2L V8 Supercharged - 21, 22, 23, 24
