Rancho 2-Inch Front Level-IT System (07-13 Sierra 1500)

Item S512253
Call a Sierra Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $361.99 You Save 12% ($42.00)
Our Price

$319.99 (kit)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Levels Ride Height and Increases Ground Clearance
      • Provides 2-inch of Front Lift
      • Accommodates Tires up to 35-inch Tall
      • Nine Position Adjustable Damping
      • Tri-Tube Gas Pressurized Struts
      • Direct Bolt-On Replacement
      • Includes (2) RS9000XL Struts and Sway Bar Spacers
      • Must Re-use OE Springs and Top Mounting Components
      • Limited Lifetime Manufactures Warranty
      • Fits 2007-2013 GMC Sierra 1500 Models

      Description

      Level It System. Level out the front of your 2007-2013 Sierra with the Rancho “Level It” system. This kit provides an inexpensive, fast and easy kit to level your Sierra's ride height. This kit features (2) RS9000XL 9-position adjustable series Leveling Struts, (2) sway bar spacers and needed mounting hardware to provide superior on road comfort and off-road performance. The sway bar spacers correct end link angles for roll and sway control of your Sierra. The kit was designed with 35-inch tires in mind, and lifts the front by 2-inches. This kit will allow the reuse of OE Wheels and Tires.

      Nine Position Adjustable Damping. The adjustable option of the included Rancho RS9000XL Front Struts allows you to adjust damping with just a twist of a knob giving you 9 Struts in one. The adjustment knob provides a clear understanding of each tuning level with settings 1-3 = on/off-road flexibility, 4-6 = similar to RS5000 Struts, and 7-9 = performance/towing flexibility. This damping adjustability will elevate the overall handling and performance of your vehicle both on and off-road, giving you the confidence you need to put your Sierra through its paces.

      Quality Construction. Manufactured using a gas pressurized tri-tube design, the included Rancho Struts feature a 18mm nitro-carburized piston rod with a 1-1/4-inch diameter sintered iron piston to provide heightened control. Rancho Struts feature a larger, 2-3/4-inch diameter Strut body that allows for increased fluid capacity to operate cooler with increased vehicle control. The combination of all-weather fluid and low-friction, self-lubricating seals help prolong performance and allow for quicker rebound and smoother compression during the Strut cycle. The Strut is completed in durable, white powder coated finish for impressive good looks and long lasting durability.

      Direct Bolt-on Replacement. Rancho designed their Front Level-IT System to be a direct bolt on replacement for your Sierra’s factory Struts. However, you must re-use the OE Springs and top mounting components for installation. Trimming or modification may be required to provide proper clearance for 35-inch tires. Please note that an alignment, by a qualified shop, is highly recommended after installation.

      Application. This Rancho 2-Inch Front Level-IT System is designed to fit 2007-2013 GMC Sierra 1500 models.

      Fitment: 2007 2008 2009 2010 2011 2012 2013

      Rancho RS66304R9

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

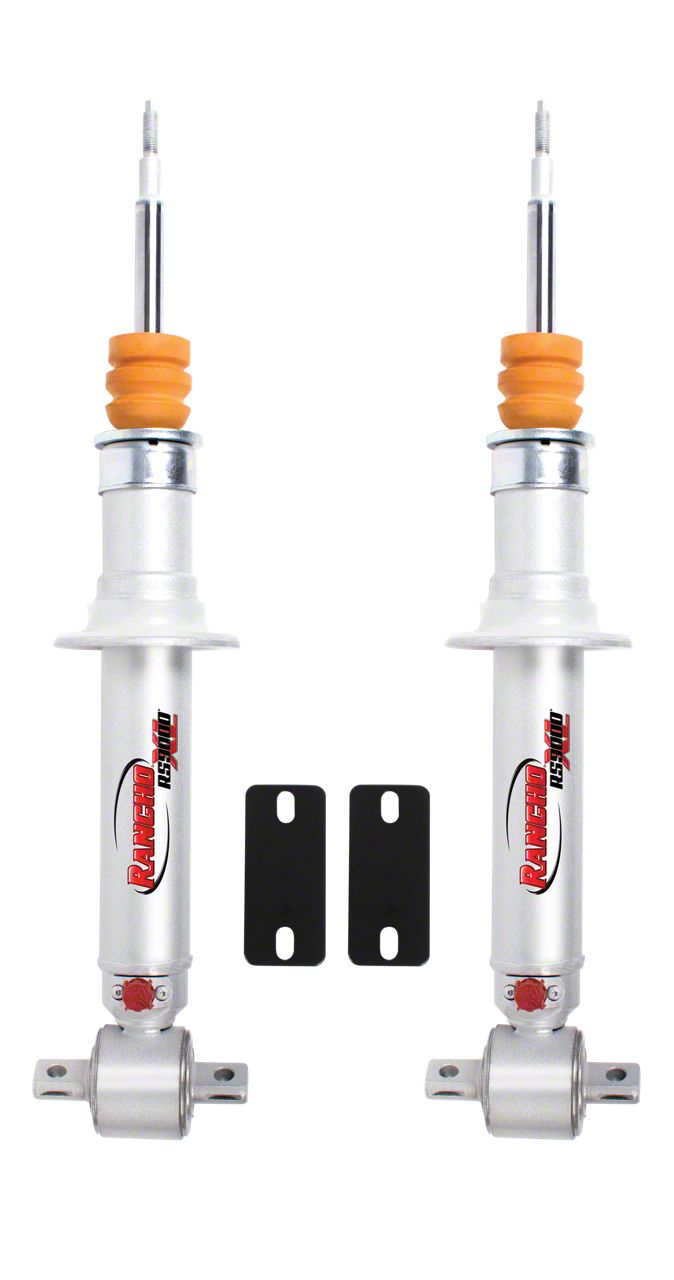

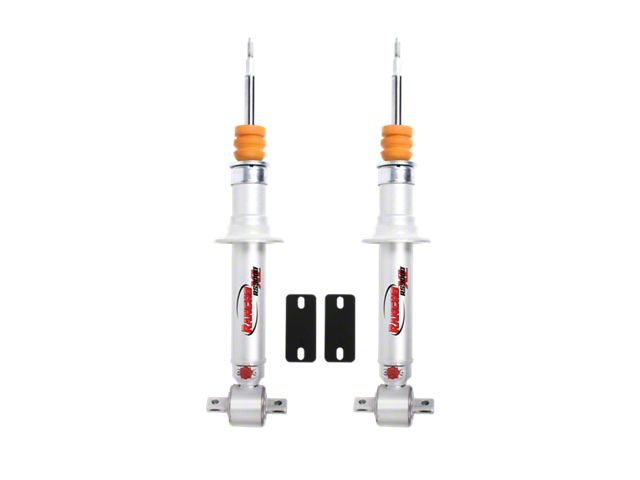

      • (2) RS9000™XL 9-position Adjustable Struts
      • (2) Sway Bar Spacers
      • Mounting Hardware
      • Re-uses OE Springs and Top Mounting Components
