Find Shocks & Struts for your Ram 3500

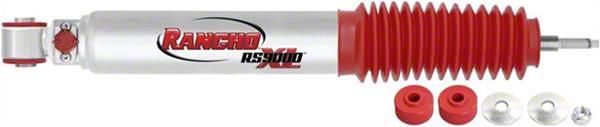

Rancho RS9000XL Front Shock for 4 to 5-Inch Lift (03-09 4WD RAM 3500)Find parts that fit my vehicle

Item SHR27046
Product Image
284 Reviews
Our Price

$158.13

Military, Medical & First Responders $7.91 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • New
      • Silver
      • Telescopic
      • Mounting Hardware Included
      • 24.6 In Extended Length
      • 8.65 In Shock Stroke
      • Loop Bushing And Sleeve Mount - 9/16 Sleeve ID X 1.5/8 Sleeve OAL
      • Stem Mount - 2 5/8 Stem Length X 1/2-13 Thread Pitch
      • Boot Included
      • Gas Charged
      • 2.38 In Body Diameter
      • 15.95 In Compressed Length
      • No Coil Over Springs Included
      • Painted Finish
      • Nitrocarburized Shaft Material
      • Steel Body Material
      • 18 Mm Rod Diameter
      • Steel Cylinder Material
      • 2.38 In Cylinder Outside Diameter
      • Tri Tube Internal Construction Type
      • Performance Grade Type
      • Adjustable Damping
      • Adjustable Rebound
      • Manual Damping Adjustment Type
      • Progressive Valving Type
      • Includes Bump Stop
      • Dust Shield Included
      • Dust Shield Material Rubber
      • Dust Shield Diameter 2.99 In
      • Upper Mount Code S51
      • Lower Mount Code LS47
      • Shock Absorber Rod End Measuring Point Center Of Loop
      • Shock Absorber Body End Measuring Point Base Of Stem
      • Self-Lubricating Seal For Quicker Rebound And Smoother Compression
      • Polyurethane Rebound Bumper And Bushings
      • Nitrogen Gas Pressurized To 120 PSI To Minimize Fade And Foaming
      • Fits 03-09 4WD RAM 3500

      Description

      Adjustable Ride Control. The Rancho RS9000XL Front Shock for 4-Inch Lift features nine-position manual adjustment to optimize damping performance across varied driving conditions. This shock absorber improves handling, comfort, and stability on lifted trucks whether on or off-road.

      Construction and Appearance. Built with a durable steel body using a ternary tri-tube design, the shock includes an 18mm nitrocarburized piston rod for corrosion and wear resistance. It has a painted silver finish and comes with a protective polyvinyl boot, polyurethane rebound bumper, and bushings to enhance longevity and reduce harshness.

      Installation. Installation is straightforward for experienced users, requiring no drilling or frame modifications. It uses included mounting hardware compatible with factory mounts for easy replacement.

      Warranty. This shock absorber is backed by a limited lifetime warranty, providing assurance of quality and durability.

      Application. Specifically engineered to fit the 2003 to 2009 4WD RAM 3500, offering performance tailored to this model without exceptions or exclusions.

      Rancho RS999044

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (284)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 5.7L V8 - 03, 04, 05, 06, 07, 08, 09
      • 5.9L I6 - 03, 04, 05, 06, 07, 08
      • 6.7L I6 - 07, 08, 09
      • 8.0L V10 - 03
