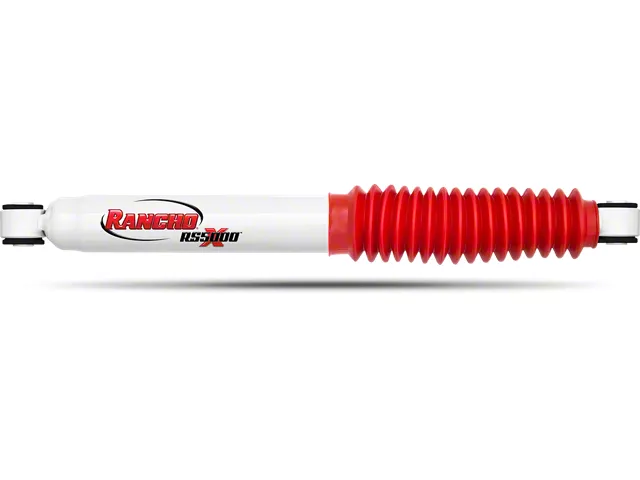

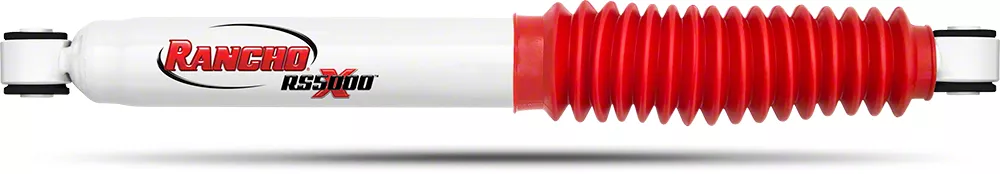

Rancho RS5000X Rear Shock for Stock Height (06-08 4WD RAM 1500)Find parts that fit my vehicle

Item R148366
Product Image
280 Reviews
Our Price

$77.33 each

Military, Medical & First Responders $3.87 Available in AT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $46.40

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Featuring a Unique Exclusive Valving System and Advanced Compression Functionality for Enhanced Handling
        • _x000D_
      • Improved Overall On and Off-Road Handling and Performance
        • _x000D_
      • Cross-Tuned Technology with Exclusive Rebound Valving System
        • _x000D_
      • Minimizes Rough Ride with Progressive Engagement Valving Custom-Tuned for Each Vehicle
        • _x000D_
      • Durable 16mm Nitro-Carburized Piston Rod Resists Scuffs and Corrosion
        • _x000D_
      • Double-Welded Loops at Stress Areas for Added Strength
        • _x000D_
      • 35mm Sintered Iron Piston Enhances Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included to Protect Against Environmental Elements
        • _x000D_
      • Large Twin-Tube Body Filled with All-Weather Fluid for Cooler Operation
        • _x000D_
      • Operates Effectively Within Temperatures from -40°F to 248°F
        • _x000D_
      • Polyurethane Rebound Bumper and Rubber Bushings Absorb Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness to Road Conditions
        • _x000D_
      • Nitrogen Gas Pressurized to 150 PSI to Reduce Damping Fade and Foaming
        • _x000D_
      • Compression Control Valve Custom-Tuned for Shock Motion Control
        • _x000D_
      • Low-Friction Self-Lubricating Seal Retains Gas and Oil for Smooth Performance
        • _x000D_
      • Application-Specific Piston Provides Heightened Control of Shock Motion
        • _x000D_
      • Painted Finish with White Colored Body
        • _x000D_
      • Twin Tube Internal Construction
        • _x000D_
      • Steel Body and Cylinder with Nitro-Carburized Shaft Material
        • _x000D_
      • Loop Bushing and Sleeve Mount with 9/16 Inch Sleeve ID x 1.5/8 Inch Sleeve OAL on Both Ends
        • _x000D_
      • Shock Diameter of 2.25 Inches
        • _x000D_
      • Extended Length 27.59 Inches
        • _x000D_
      • Compressed Length 16.81 Inches
        • _x000D_
      • Shock Stroke 10.78 Inches
        • _x000D_
      • Progressive Valving Type
        • _x000D_
      • Gas Charged Design
        • _x000D_
      • Includes Polyvinyl Boot and Dust Shield
        • _x000D_
      • Does Not Include Mounting Hardware or Coil Over Springs
        • _x000D_
      • Fits 2006-2008 4WD RAM 1500
        • _x000D_

      Description

      Superior Suspension Performance. The Rancho RS5000X Rear Shock for Stock Height delivers enhanced handling and stability both on and off the road. Designed with advanced valving technology, it optimizes rebound and compression to reduce ride harshness and improve overall control, making it ideal for trucks requiring durable and responsive rear suspension.

      _x000D_

      Construction and Appearance. This shock features a twin-tube steel body with a durable painted white finish and a 16mm nitro-carburized piston rod for superior resistance to wear and corrosion. It includes a 35mm sintered iron piston enhancing its structural integrity, plus a polyvinyl protective boot and dust shield to safeguard against environmental elements.

      _x000D_

      Installation. Installation of this shock absorber is straightforward for those with mechanical experience and does not require drilling or special modifications. It mounts using loop bushing and sleeve mounts designed to fit precisely for optimal vehicle compatibility.

      _x000D_

      Warranty. This shock absorber is covered by a limited lifetime warranty, ensuring long-term reliability and customer confidence.

      _x000D_

      Application. Specifically engineered to fit the 2006-2008 4WD RAM 1500 models, this shock is tailored to match the factory rear suspension geometry and performance specifications, ensuring compatibility and optimal ride quality.

      Rancho RS55269

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 45 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Shock Absorber

      4.7

      Customer Reviews (280)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 1500

      • 3.7L V6 - 06, 07, 08
      • 4.7L V8 - 06, 07, 08
      • 5.7L V8 - 06, 07, 08
