Find Shocks & Struts for your Dakota

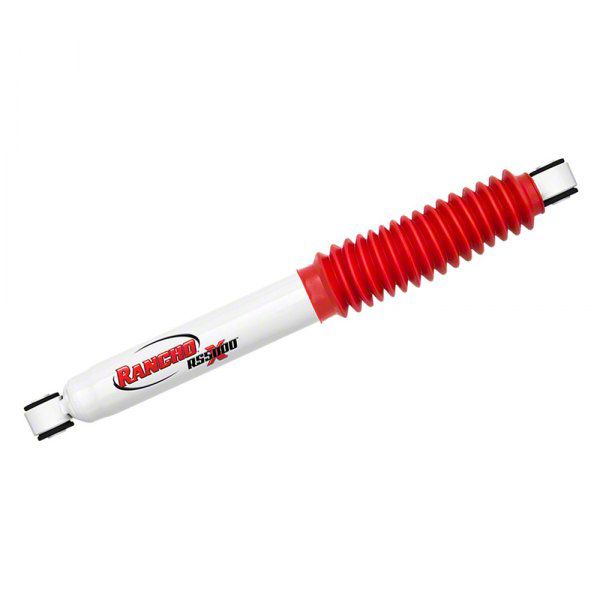

Rancho RS5000X Rear Shock for Stock Height (97-04 4WD Dakota)Find parts that fit my vehicle

Item DD2425
Product Image
$0.00
275 Reviews
Our Price

$66.32

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $3.32 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Packed With Innovative Features That Improve On- And Off-Road Handling And Performance
        • _x000D_
      • Exclusive Cross Tuned Technology Featuring Unique Rebound Valving System And Advanced Compression Phase
        • _x000D_
      • Minimizes Rough Ride With Progressive Engagement Valving Custom-Tuned For Each Vehicle
        • _x000D_
      • Strong And Durable Construction Including 16mm Nitro-Carburized Piston Rod And Double-Welded Stress Areas
        • _x000D_
      • Large Twin-Tube Body Filled With All-Weather Fluid For Cooler Operation And Extreme Temperature Resistance
        • _x000D_
      • Polyurethane Rebound Bumper And Rubber Bushings Absorb Ride Harshness For Smoother Performance
        • _x000D_
      • Nitrogen Gas Pressurized To 150 PSI To Reduce Damping Performance Fade And Foaming
        • _x000D_
      • Custom-Tuned Compression Control Valve Regulates Fluid Transfer To Maintain Shock Motion Control
        • _x000D_
      • Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Quicker Rebound And Smoother Compression
        • _x000D_
      • Includes Progressive Valving Type And White Painted Finish
        • _x000D_
      • Loop Bushing And Sleeve Mount With 12mm Sleeve ID X 1.5/8" Sleeve OAL For Both Upper And Lower Mount
        • _x000D_
      • Shock Stroke Of 9.88 Inches (251 mm) With Extended Length Of 25.24 Inches (641.1 mm)
        • _x000D_
      • Shock Body Diameter Of 2.25 Inches (57.2 mm) And Piston Rod Diameter Of 0.622 Inches (15.8 mm)
        • _x000D_
      • Designed For Passive Suspension With Twin Tube Internal Construction
        • _x000D_
      • Includes Dust Shield, Polyvinyl Protective Boot, And Rubber Dust Shield Material
        • _x000D_
      • Gas Charged, White Body Color, Steel Body And Cylinder Material
        • _x000D_
      • Shock Absorber Rod End And Body End Measuring Points At Center Of Loop
        • _x000D_
      • Does Not Include Coil Over Springs, Adjustable Features, Bearing Plate, Remote Reservoir, Or Hydraulic Lockout
        • _x000D_
      • Fits 97-04 4WD Dakota
        • _x000D_

      Description

      Innovative Suspension Solution. The Rancho RS5000X Rear Shock for Stock Height enhances vehicle handling and comfort by integrating advanced valving technology designed for both on-road and off-road conditions. This shock absorber effectively reduces ride harshness and improves vehicle control by minimizing impact and maintaining smooth suspension travel.

      _x000D__x000D_

      Construction and Appearance. Manufactured with a nitro-carburized steel piston rod and a strong steel body, this shock features a durable twin-tube design filled with all-weather fluid allowing operation in extreme temperatures. The assembly is finished with a white painted coating and includes a polyvinyl protective boot for added longevity and corrosion resistance.

      _x000D__x000D_

      Installation. Installation is straightforward and suitable for experienced DIYers without the need for drilling or cutting, using the existing mounting hardware locations. The loop bushing and sleeve mount help ensure a secure and precise fit.

      _x000D__x000D_

      Warranty. Covered by a limited lifetime warranty, assuring long-term product reliability and customer confidence.

      _x000D__x000D_

      Application. Specifically designed to fit 1997-2004 4WD Dodge Dakota models, this shock absorber meets factory specifications for that vehicle configuration.

      Rancho RS55248

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (275)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Dakota

      • 2.5L I4 - 97, 98, 99, 00, 01, 02
      • 3.7L V6 - 04
      • 3.9L V6 - 97, 98, 99, 00, 01, 02, 03
      • 4.7L V8 - 00, 01, 02, 03, 04
      • 5.2L V8 - 97, 98, 99
      • 5.9L V8 - 00, 01, 02, 03
