Turbocharger Actuator; HE300VG (13-18 6.7L RAM 3500)Find parts that fit my vehicle

Application:
Compatible for Ram 2500/3500/4500/5500, compatible for Cummins 6.7L Diesel HE300VG, 2013-2018

Fits For the Following:

• Compatible for Cummins Holset 6.7 Diesel HE300VG / 6.7L Turbo I6 Diesel
• Compatible for RAM 2500, 2013-2018
• Compatible for RAM 3500, 2013-2018
• Compatible for RAM 4500, 2013-2018
• Compatible for RAM 5500, 2013-2018
• Compatible for Dodge Ram 2500/3500/4500/5500 6.7L L6 Diesel, 2007-2012
• Compatible for Dodge Ram 2500, 3500 Truck with 6.7L ISB, ISB 6.7, ISB 5.9, ISB6, ISB 6.7 Blackbird, ISB EPA 07 Diesel Engine, 2003-2012
• Compatible for Dodge Ram Truck with 6.7L, compatible for Cummins ISM Diesel Engine, 2007-2012
• For Heavy Duty Truck with 6.7L, compatible for Cummins ISB6.7, ISB2010 Diesel Engine, 2008-2010

Part Number:
3787604, 3781632, 5601240NX, 3794756, 3775439, 3787608, 3781633, 3779986, 3798539, 37985, 3794758, 3775427, 3787607, 3781755, 3779987, 5326054, 3781754, 3775426, 3779989, 3784573, 3784574, 68307025AA, 3798575, 5326054, 5326057, 5327046, 532704600, 532704600HX, 5459710RX, 68210648AA, 68212738AA, 68245792AA, 68253983AA, 68295438AA, 68297874AA, 68321377AA, 68445522AA, 5601240NX, 5601240

Specification:

• Turbo Model: H300VG, HE300VG, HE300
• Type: Turbo Electronic Actuator
• Color: Silver
• Material: Metal
• Condition: 100% Brand New
• Warranty: one year for any manufacturing defects

Features:

1. Made of high-quality metal materials, anti-corrosion, with good hardness and toughness, with stronger heat dissipation performance and responsiveness.
2. This turbo actuator kit has a simpler and more convenient fault detector with fewer unnecessary parts.
3. The product undergoes 100% testing before shipment to ensure safety, stability, and durability.
4. If you have actuator codes, under light throttle and some load it drops boost and sounds like the exhaust brake comes on. You need to replace it in time to restore drivability. With the new actuator, the turbo will work better than before – the throttle will be significantly more responsive.

Function of Turbocharger Actuator:

1. Control turbine speed: By adjusting the output pressure and flow rate of the turbocharger, the turbo actuator is able to adjust the speed of the turbine impeller according to the change of engine load in order to achieve the best boosting effect. When the engine load increases, the turbo actuator increases the flow of compressed air to boost the engine output; conversely, when the load decreases, the turbo actuator adjusts accordingly to keep the output of the turbocharger stable.
2. Protecting the turbocharger: The turbo actuator acts as a pressure relief valve, controlling the turbocharging output and diverting excess exhaust gases away from the turbine impeller. This helps to control the speed of the turbine, preventing overspeeding, and regulates the speed of the compressor, protecting the turbocharger from unnecessary wear and tear by limiting the maximum boost pressure to a safe level.

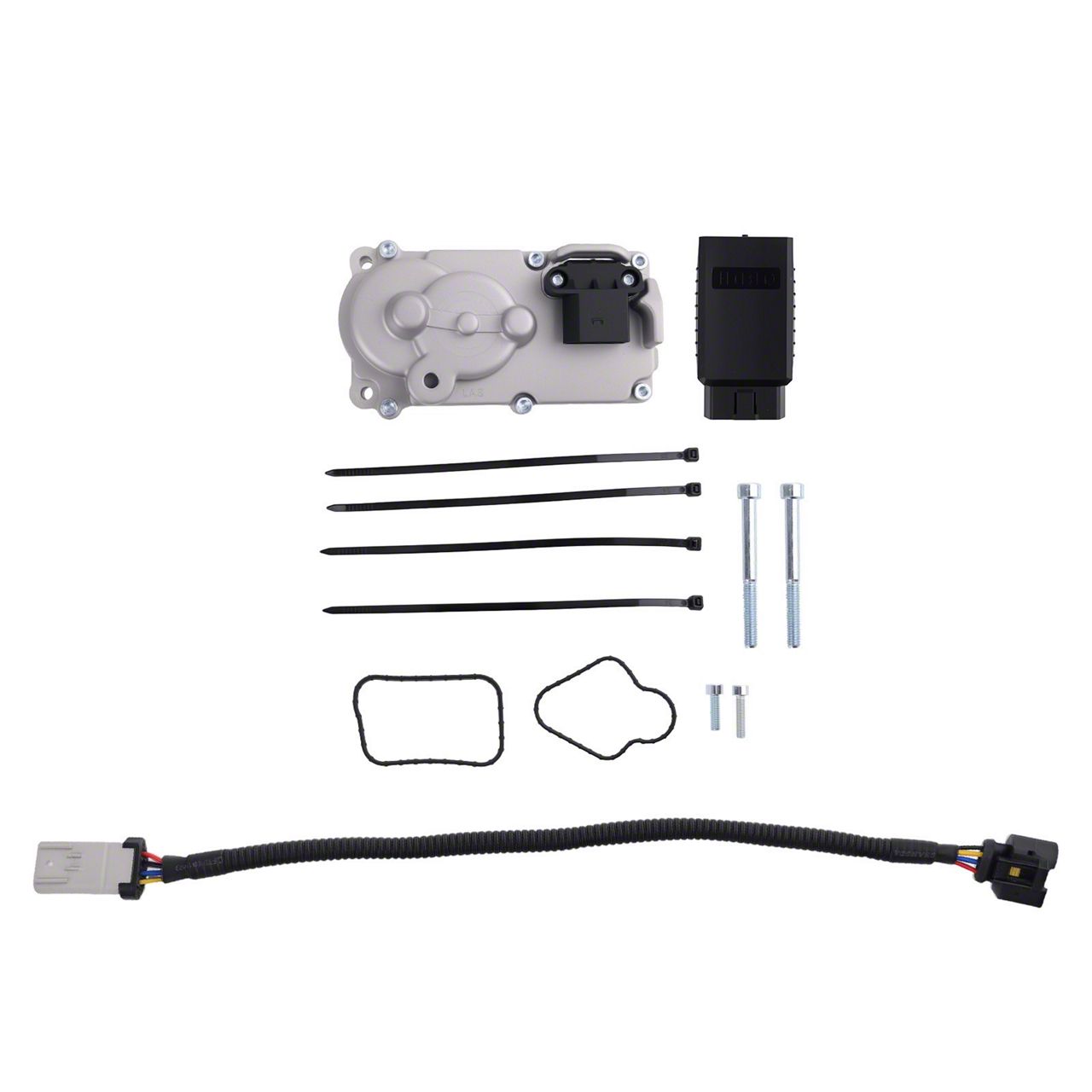

Package Includes:

• 1x Turbo Actuator
• 1x Actuator Harness
• 1x OBDII Fault Detector
• 4x Gasket
• 4x Screw
• 4x Tie
• (Showing as the picture)

Notes:

1. Please stop the engine before installation, and make sure the turbocharger actuator has cooled down. This is the first important step for your smooth installation and calibration.
2. Even if your car is shown in the compatibility list, please also double-check the fitment details and photos before ordering.
3. No instructions included; professional installation is highly recommended.
