Find LED Light Bars for your Ram 3500

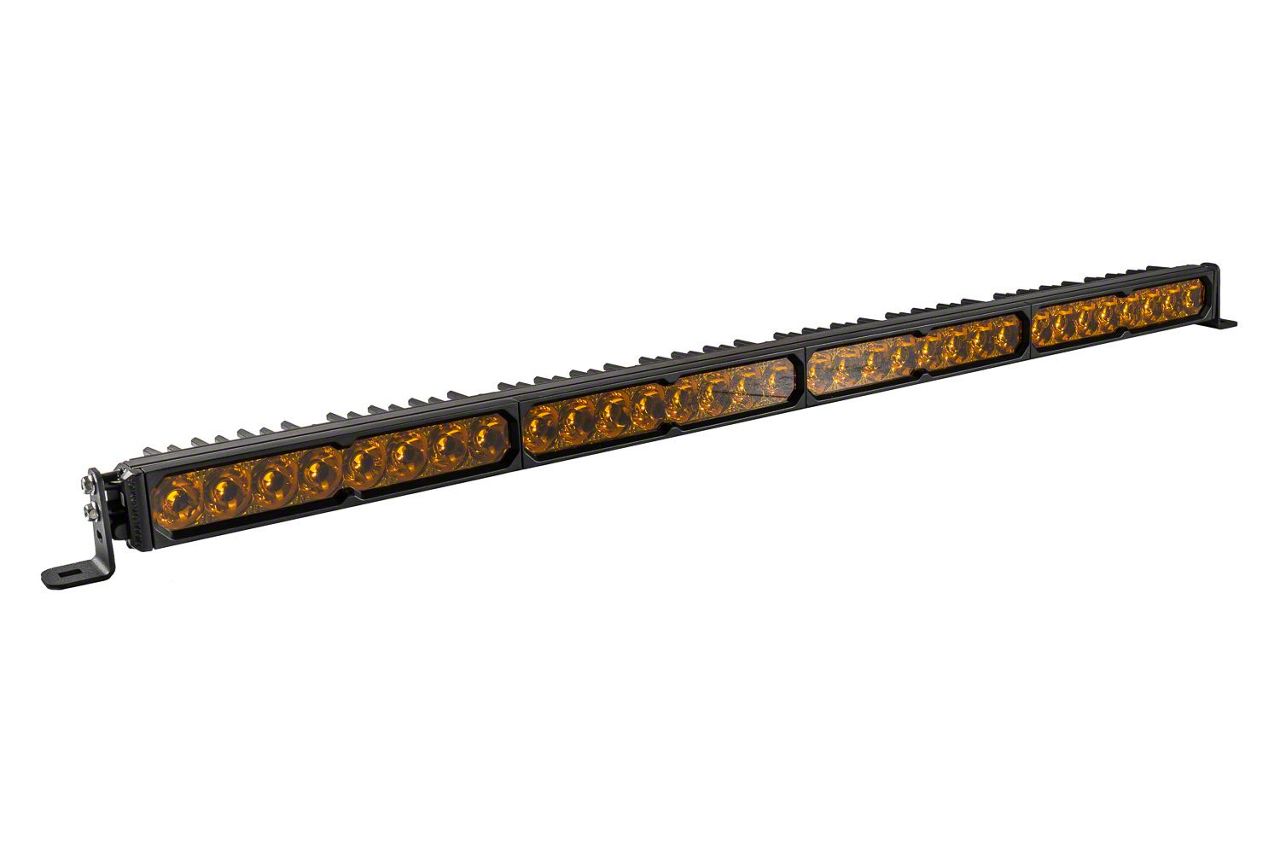

Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item SHR66700
Product Image
Our Price

$799.95

Military, Medical & First Responders $40.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
        • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
        • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting
        • _x000D_
      • Now Available In Sport And Pro Power Levels
        • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
        • _x000D_
      • Built For The Extreme With IP69K Waterproof Rating
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Color Temp (CCT) 3000K
        • _x000D_
      • Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
        • _x000D_
      • Power: Sport 165 Watts, Pro 225 Watts
        • _x000D_
      • Operating Voltage 9-30V
        • _x000D_
      • Current Draw At 12.8V: Sport 12.90 Amps, Pro 17.58 Amps
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature Range -40°C To 85°C (-40°F To 185°F)
        • _x000D_
      • LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
        • _x000D_
      • Connector: Deutsch DT-P Input
        • _x000D_
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
        • _x000D_
      • Cooling Method: Passive Heatsink
        • _x000D_
      • Intrusion Rating: IP69K Waterproof To High Pressure
        • _x000D_
      • Product Dimensions 2.01”x41.63”x2.46”
        • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot is engineered to deliver exceptional illumination with focused yellow spot beam optics. Designed for off-road and harsh weather conditions, this light bar enhances visibility by cutting through fog, rain, and snow while providing a distinctive amber backlight for added style and safety.

      _x000D_

      Construction and Appearance. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat for corrosion resistance and long-lasting durability. It integrates advanced OSRAM and Lumileds automotive-grade LEDs paired with patented TIR optics for optimal light focus and efficiency. The polycarbonate lens and stainless steel brackets further enhance the rugged design, capable of withstanding harsh environments with an IP69K waterproof rating.

      _x000D_

      Installation. Installation is straightforward with a universal bracket set and basic tools. No permanent drilling is typically required, making it suitable for enthusiasts looking for a quick and secure mounting solution.

      _x000D_

      Warranty. This product includes a limited lifetime warranty, ensuring lasting reliability and customer confidence.

      _x000D_

      Application. Fits universal applications with some adaptation possibly needed to accommodate different vehicle configurations or mounting preferences.

      Diode Dynamics DD8391

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
