Find for your Ram 3500

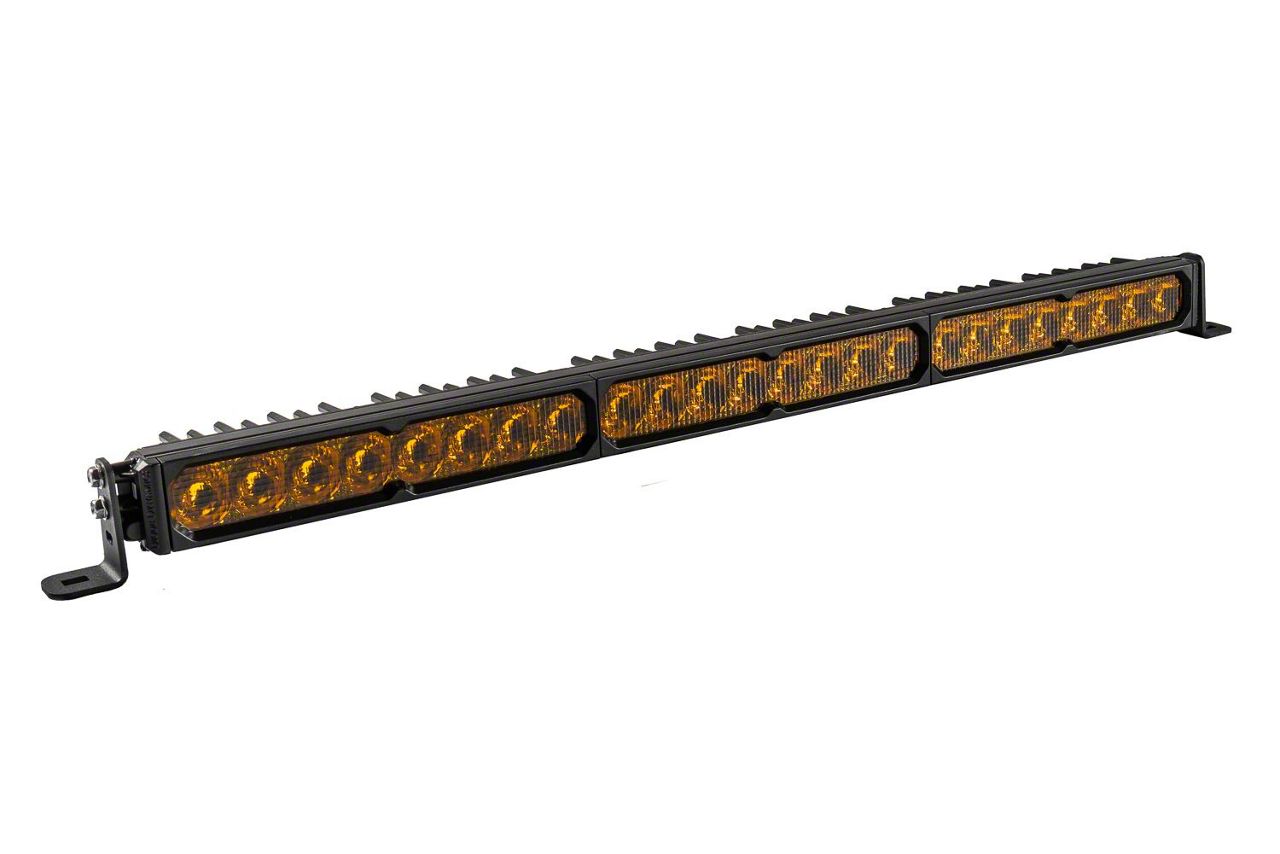

Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)

Item SHR66664
Product Image
Our Price

$599.95

Military, Medical & First Responders $30.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR optics for maximum efficiency and output
      • Upgraded beam patterns engineered for real-world performance
      • True amber backlight provides unique accent lighting
      • Available in Sport and Pro power levels
      • Durable aluminum housing with ASTM-standard powdercoat finish
      • Built for the extreme with IP69K waterproof and high-pressure resistance
      • Limited lifetime warranty
      • Made in USA with global materials
      • Peak beam intensity ranges from 181,000 Cd to 471,000 Cd depending on power level and beam pattern
      • Illuminance ranges from 57 Lux to 4,710 Lux at 10m
      • Raw output ranges from 11,064 lumens to 37,632 lumens
      • Color temperature is 3000K yellow
      • Beam angles: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
      • Power consumption ranges between 120 watts (Sport) and 165 watts (Pro)
      • Operating voltage from 9 to 30 V
      • Current draw ranges from 9.38 A (Sport) to 12.90 A (Pro) at 12.8 V
      • Uses automotive-grade Osram Ostar and Lumileds LED emitters
      • Features Deutsch DT-P connector input
      • Materials include aluminum and copper printed circuit boards, polycarbonate lens, aluminum heatsink, stainless steel brackets
      • Passive cooling via heatsink
      • Operating temperature: -40°C to 85°C (-40°F to 185°F)
      • Product dimensions: 2.01 inches high, 31.63 inches wide, 2.46 inches deep
      • Includes one LED light bar, one wire pigtail, universal bracket set
      • Fits universal; some adaptation may be required

      Description

      HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight delivers superior illumination and precision beam control for off-road and inclement weather conditions. Designed to enhance visibility with patented TIR optics and upgraded beam patterns engineered for real-world performance, it is ideal for a variety of driving applications where reliability and performance are essential.

      CONSTRUCTION AND APPEARANCE. This LED light bar features a durable aluminum housing with an ASTM-standard powdercoat finish offering corrosion resistance and longevity. It incorporates automotive-grade Osram Ostar and Lumileds LED emitters paired with polycarbonate lenses and a heavy-duty aluminum heatsink for passive thermal management, ensuring consistent output in demanding environments.

      INSTALLATION. The installation process is straightforward, typically requiring 30 to 60 minutes with basic hand tools. No drilling is necessary due to the supplied universal brackets that facilitate flexible mounting options.

      WARRANTY. Backed by a limited lifetime warranty, this product guarantees long-term performance and support against manufacturing defects.

      APPLICATION. Fits universal; some adaptation may be required.

      Diode Dynamics DD8254
