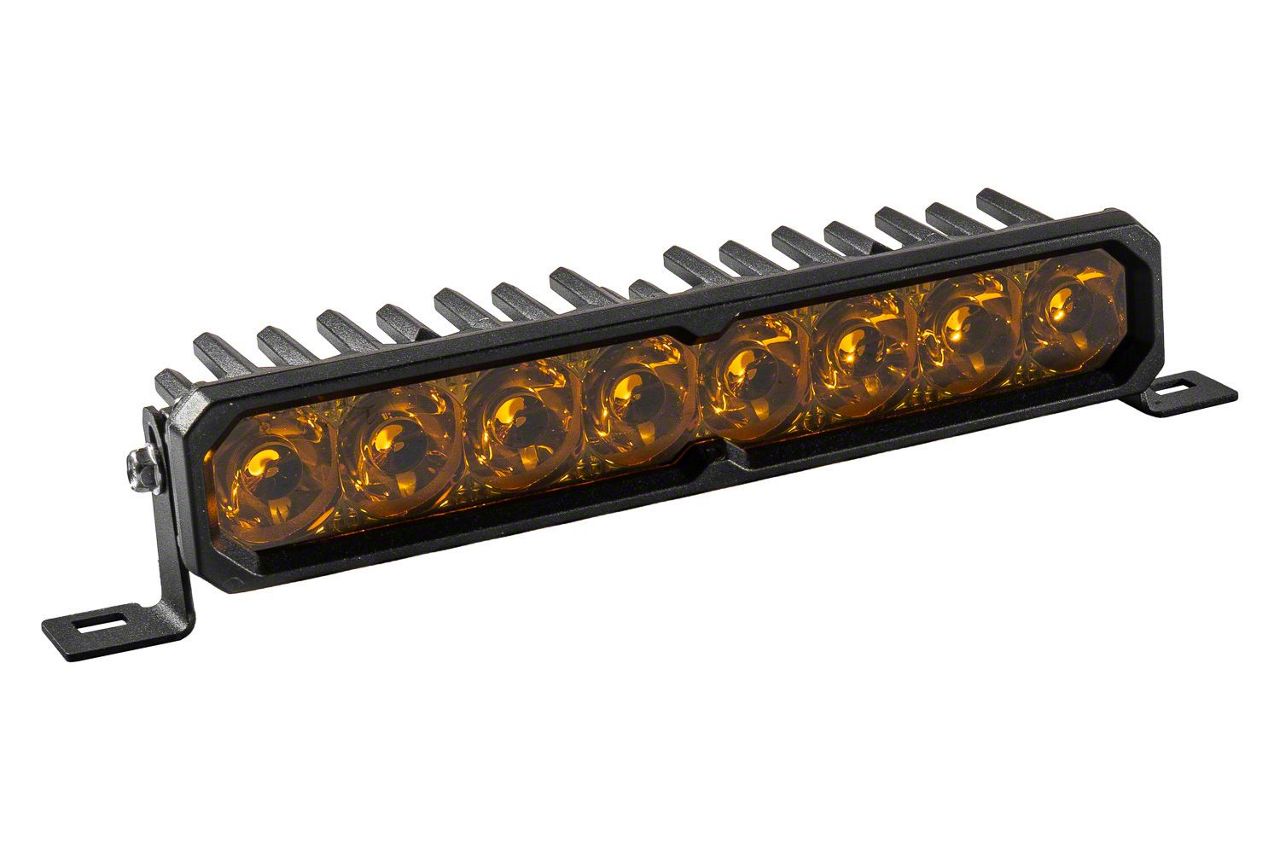

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item SHR66637
Product Image
Our Price

$449.95

Military, Medical & First Responders $22.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics for Maximum Efficiency and Output
        • _x000D_
      • Upgraded Beam Patterns Engineered for Real-World Performance
        • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting
        • _x000D_
      • Available in Sport, Pro, and Max Power Levels
        • _x000D_
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish
        • _x000D_
      • Built for the Extreme with IP69K Waterproof Rating
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made in USA with Global Materials
        • _x000D_
      • Color Temperature 3000K for Improved Visibility in Fog, Rain, and Snow
        • _x000D_
      • Beam Angles: Combo Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
        • _x000D_
      • Power Watts: Sport 40W, Pro 51.5W, Max 61W
        • _x000D_
      • Operating Voltage 9-30V
        • _x000D_
      • Current Amps @ 12.8V: Sport 3.13A, Pro 4.00A, Max 4.77A
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
        • _x000D_
      • Connectors: Deutsch DT Input
        • _x000D_
      • Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
        • _x000D_
      • Cooling: Passive Heatsink
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof with High-Pressure Resistance
        • _x000D_
      • Product Dimensions: 2.01 x 10.24 x 2.37 inches
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Exceptional LED Lighting. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight and Yellow Spot is engineered for superior illumination with high-intensity, focused optics. This light bar enhances visibility in adverse weather conditions, outdoor adventures, or off-road driving, combining powerful output with modern design to improve safety and performance.

      _x000D_

      Construction and Appearance. Built with a durable aluminum housing featuring an ASTM-standard powdercoat finish, this light bar incorporates both aluminum and copper PCBs for efficient thermal management. The lens is polycarbonate, while the heatsink is aluminum with stainless steel brackets for secure mounting. The true amber backlight provides both functional and distinctive accent lighting.

      _x000D_

      Installation. Installation is straightforward, requiring only basic tools and an estimated time of 30-60 minutes. Universal brackets are included, allowing for adaptability in most mounting scenarios without the need for drilling.

      _x000D_

      Warranty. This product includes a limited lifetime warranty, reflecting confidence in its durability and performance.

      _x000D_

      Application. Designed for universal fitment; some adaptation may be necessary depending on the vehicle and mounting specifics.

      Diode Dynamics DD8215
