Wireless Transparent Trailer System (09-18 RAM 1500)Find parts that fit my vehicle
Item R146945
Our Price
$869.99
Military, Medical & First Responders
$43.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features

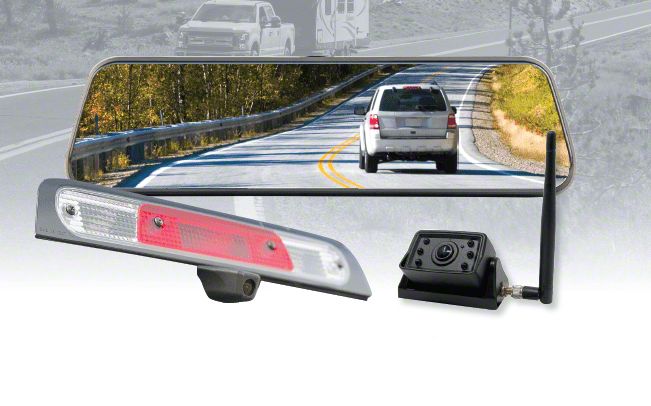

- Wireless Transparent Trailer System Eliminates Blind Spots And Provides Unobstructed Visibility Whether Pulling A Trailer Or Not
- High-Definition Digital Mirror Replaces Traditional Rearview Mirror
- Two Cameras Included: Truck-Specific Third Brake Light Camera And Wireless Camera On Rear Of Trailer
- Switch Between Two Views With The Click Of A Button
- Truck Specific Third Brake Light Camera Bezel
- Wireless IP68 HD Infrared Trailer Camera With 110º Horizontal And 80º Vertical Viewing Angle
- Truck-Specific Bezel Camera With A 170º Horizontal And 130º Vertical Viewing Angle
- Includes Mounting Bracket For Furrion And Voyager Pre-Wired Trailers
- Mirror Working Voltage DC 12V/24V
- Mirror Working Temperature -20°C To 70°C
- Mirror Storage Temperature -30°C To 80°C
- Display Brightness 800cd/m2
- Screen Size 9.66 Inch
- Resolution 1080p
- Camera Connection Type Wired, Max 2 Cameras
- Video Format Input AHD/CVBS
- DVR Not Built-In
- Two Video Trigger Input Triggers
- Truck Camera Working Voltage 6V – 16V
- Truck Camera Rated Voltage/Current Less Than 1W
- Truck Camera Working Temperature -10°C To 60°C
- Truck Camera Storage Temperature -30°C To 70°C
- Truck Camera Wired 4-Pin Aviator Connection
- Truck Camera Mount Location Third Brake Light Bezel
- Truck Camera Mount Type Rear
- Truck Camera Field Of View Horizontal 170°, Vertical 130°
- Truck Camera Low Light Night Vision 0.1 Lux
- Truck Camera Lens Size 18.5mm By 22mm
- Truck Camera Waterproof Rating IP68
- Truck Camera Video Format Output AHD
- Truck Camera Resolution 1080p
- Wireless Camera Working Voltage DC12V & DC24V
- Wireless Camera Working Temperature -20°C To 70°C
- Wireless Camera Storage Temperature -30°C To 80°C
- Wireless Camera Connection Type Wireless
- Wireless Camera Mount Location Rear
- Wireless Camera Mount Type Multiple Bracket Types For Surface Mount
- Wireless Camera Field Of View Horizontal 110º, Vertical 80º
- Wireless Camera Low Light Night Vision 0.2 Lux
- Wireless Camera Lens Size 22.6mm
- Wireless Camera Built-In IRs
- Wireless Camera Waterproof Rating IP68
- Wireless Camera Video Format Output AHD 2.4G
- Wireless Camera Resolution 1936H×1096V
- Fits 09-18 RAM 1500
Description
Advanced Trailer Visibility. The Wireless Transparent Trailer System offers exceptional rearview coverage by replacing your traditional mirror with a high-definition digital display integrating two cameras. Users can easily switch between a truck-mounted third brake light camera and a wireless camera mounted on the trailer, ensuring complete visibility whether towing or driving without a trailer. This system effectively reduces blind spots and enhances safety during towing maneuvers.
Construction and Appearance. Featuring rugged, weather-resistant components including an IP68-rated wireless trailer camera with built-in infrared night vision and a truck-specific wired camera housed in a third brake light bezel, the system combines durability with a sleek digital mirror appearance. The 9.66-inch screen delivers a bright 800cd/m² display in full 1080p resolution that integrates seamlessly into the truck’s interior.
Installation. Installation involves mounting the truck camera in the third brake light bezel and securely attaching the wireless camera to the trailer using the included mounting brackets. The installation requires basic wiring skills, and the truck camera bezel is designed for easy fitment without modifying the vehicle, facilitating a straightforward setup process.
Warranty. This system is backed by a manufacturer warranty to ensure reliability and product support.
Application. Specifically designed to fit the 2009 to 2018 RAM 1500 models.
