Find for your Sierra 1500

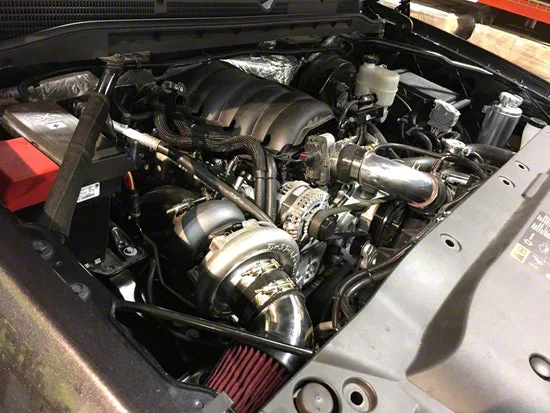

On3 Performance Single Turbo System with 7665 Cast Wheel Ceramic Bearing Turbo (14-18 5.3L Sierra 1500)Find parts that fit my vehicle

Item S600033-B
Product Image
Our Price

$3,259.00 - $3,348.00

Military, Medical & First Responders $162.95 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • On3 Performance Single Turbo System with 7665 Cast Wheel Ceramic Bearing Turbo
      • Complete Bolt-On Single Turbo System
      • Includes On3 76/65 Cast Wheel Ceramic Bearing Turbocharger
      • Increases Power by Approximately 250 Rear Wheel Horsepower
      • Gen 2 Cast Stainless Turbo Manifold (Divided Bank-to-Bank Design)
      • 44mm V-Banded Wastegate (Pre-Installed on T4 Flange)
      • 3.0 to 3.5 Inch Stepped Stainless Steel Downpipe
      • Includes 3.0 Inch 304 Aluminum Cold Side Tubing
      • 5-Ply Silicone Couplers with Stainless T-Bolt Clamps
      • Custom Air-to-Air Intercooler (3.5 Inch Standard Core Included, Race Core Optional)
      • Compatible with Factory 4x4 Transfer Case and Driveshaft
      • Includes All Necessary Hardware for Installation
      • Ceramic Ball Bearing Turbo Recommended for Towing Applications
      • Optional Electric Turbo Oil Drain System Available (No Oil Pan Drilling Required)
      • Hard Installation
      • One-Year Limited Warranty
      • Fits 2014 to 2018 5.3L Sierra 1500

      Description

      Performance-Boosting Turbocharger System. The On3 Performance Single Turbo System with the 7665 Cast Wheel Ceramic Bearing Turbo is the ultimate bolt-on solution for those looking to significantly increase their Sierra 1500's power. This system delivers an estimated increase of 250 rear wheel horsepower, transforming your truck's performance. The included Gen 2 cast stainless turbo manifold, 44mm V-banded wastegate, and high-quality intercooling components make it an ideal choice for both street and towing applications.

      High-Quality Construction and Design. The turbo system is designed for maximum efficiency and durability, featuring a 76/65 cast wheel ceramic ball bearing turbo that provides quicker spool times, reduced turbo lag, and smoother power delivery. The included 3.0 to 3.5-inch stepped stainless steel downpipe, 304 aluminum cold side tubing, and silicone couplers with stainless T-bolt clamps ensure long-lasting performance and a tight, secure fit. The custom air-to-air intercooler helps reduce intake temperatures for consistent power output.

      Installation and Compatibility. This system is designed to be a complete bolt-on installation, but it does require hard installation and is recommended for those with experience in performance builds. It is compatible with the factory 4x4 transfer case and driveshaft, making it a great choice for 4WD applications. The optional electric turbo oil drain system simplifies the oil management without needing to drill the oil pan, offering an easy upgrade for convenience.

      Warranty. The On3 Performance Single Turbo System comes with a one-year limited warranty, ensuring the quality and reliability of the components.

      Application. This turbo system fits 2014 to 2018 GMC Sierra 1500 models with the 5.3L engine.

      On3 Performance 1417-1507

      1417-1506

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 6 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) On3 76/65 Cast Wheel Ceramic Bearing Turbocharger
      • (1) Gen 2 Cast Stainless Turbo Manifold
      • (1) 3.0 to 3.5 Inch Stainless Downpipe
      • (1) Set of 3.0 Inch 304 Aluminum Cold Side Tubing
      • (1) Air-to-Air Intercooler (Standard Core)
      • (1) Set of 5-Ply Silicone Couplers
      • (1) Set of Stainless T-Bolt Clamps
      • (1) 44mm Wastegate
      • (1) Oil Feed and Return Kit
      • (1) Complete Mounting Hardware Set

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 1500

      • 5.3L V8 - 14, 15, 16, 17, 18
