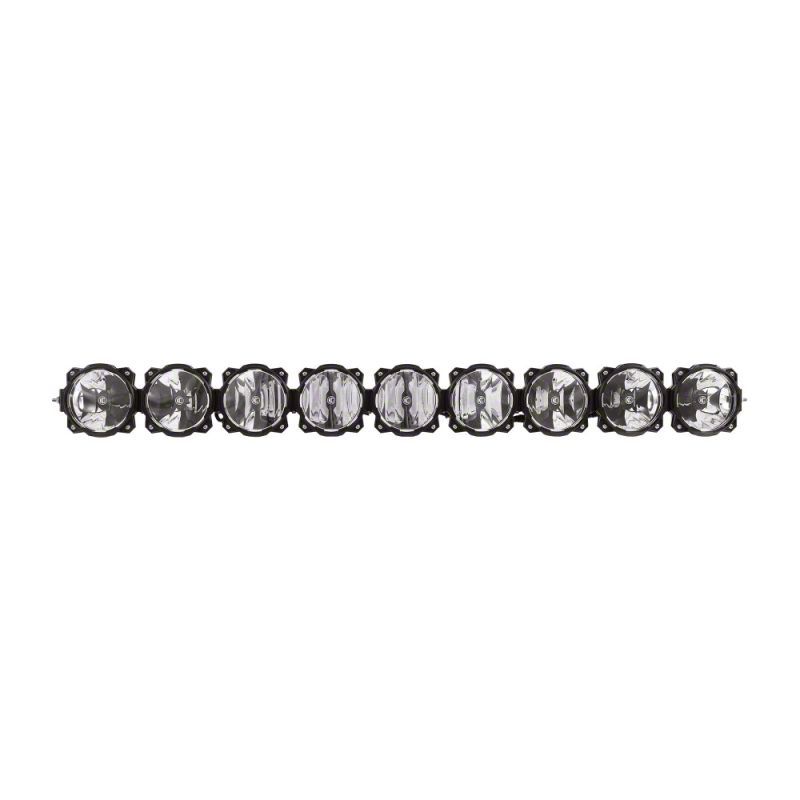

KC HiLiTES 57-Inch Gravity Pro6 LED Light Bar; Combo Beam (Universal; Some Adaptation May Be Required)

Item SHR18808
Product Image
500+ Reviews of KC HiLiTES
Our Price

$2,399.99 set

Military, Medical & First Responders $120.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Powered By Patented And Powerful Gravity® LED G6 Optical Inserts
        • _x000D_
      • Patented Infinity Ring™ System Enables The Conversion Of The Pro6 From Straight To Radius Configurations In Seconds
        • _x000D_
      • Signature KC Modular Design Is Expandable To Different Widths
        • _x000D_
      • High Output, Low Amperage Draw
        • _x000D_
      • Includes Spot And Wide-40 Beam Pattern Lights
        • _x000D_
      • (1) Pro6 LED 9-Light Bar
        • _x000D_
      • (9) Light Covers - Black With Yellow KC Logo
        • _x000D_
      • (1) Plug-N-Play Wiring Harness With 30A LED Switch
        • _x000D_
      • (1) Bumpstop
        • _x000D_
      • (1) Cover Removal Tool
        • _x000D_
      • Complete Hardware
        • _x000D_
      • Weight 30 Pounds
        • _x000D_
      • Wattage Per Light 21.36 Watts
        • _x000D_
      • Total Wattage 192.24 Watts
        • _x000D_
      • Amp Draw Per Light 1.78 Amps
        • _x000D_
      • Total Amp Draw 16.02 Amps
        • _x000D_
      • Voltage 9 Volts To 36 Volts
        • _x000D_
      • Lumens Per Light 2,508 Lumens
        • _x000D_
      • Total Lumens 22,572 Lumens
        • _x000D_
      • Lux Per Light 868 Lux (Spot) / 309 Lux (Wide 40)
        • _x000D_
      • Total Lux 6,692 Lux
        • _x000D_
      • Candela Per Light 86,775 Candela (Spot) / 30,891 Candela (Wide 40)
        • _x000D_
      • Total Candela 669,207 Candela
        • _x000D_
      • Light Temperature 5000 Kelvin
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • LED Color White
        • _x000D_
      • Beam Pattern Combo Beam
        • _x000D_
      • Beam Distance 818 Meters
        • _x000D_
      • Light Technology LED
        • _x000D_
      • Mount Location Bumper, Overhead
        • _x000D_
      • Size Of Products 57 Inches
        • _x000D_
      • Material Aluminum Alloy
        • _x000D_
      • Product Finish Black
        • _x000D_
      • Included Components 57 Inch 9-Light Gravity® LED Pro6 Light Bar, 9 KC Pro6 Light Covers, Plug-N-Play Wiring Harness, Illuminated LED Light Switch
        • _x000D_
      • Product Dimensions Width: 56.625 Inches, Height: 6.06 Inches, Depth: 3.33 Inches
        • _x000D_
      • Tag Line Modular. Linkable. Curvable.
        • _x000D_
      • IP Rating IP68
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHTING. The KC HiLiTES 57-Inch Gravity Pro6 LED Light Bar; Combo Beam offers a powerful and versatile lighting solution designed for both on-road and off-road applications. It provides exceptional long-distance illumination with a precise combo beam pattern, enhancing visibility and safety in a variety of driving conditions. The modular and linkable design allows customization to fit multiple vehicle configurations.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed from durable aluminum alloy, this light bar features a sleek black finish designed to withstand harsh environments. The clear lens complements the bright white 5000K LED light color, housed within a robust modular frame that supports both straight and curved configurations through the patented Infinity Ring™ system.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with the included plug-n-play wiring harness and mounting hardware, designed to fit standard bumper and overhead locations. Minimal adaptation is required for various vehicle setups, and no drilling is typically necessary thanks to the universal end mount system.

      _x000D__x000D_

      WARRANTY. This product is backed by an unlimited lifetime warranty, ensuring long-term reliability and peace of mind for the user. APPLICATION. Fits universal vehicles with some adaptation required to accommodate different mounting points and configurations.

      KC HiLiTES 91315

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 20 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (9) KC Light Covers
      • Performance Wiring Harness and Switch
      • (1) Gravity Pro6 57-Inch 9-Light LED Light Bar
      • Overhead Mounting Bracket Set and Hardware
