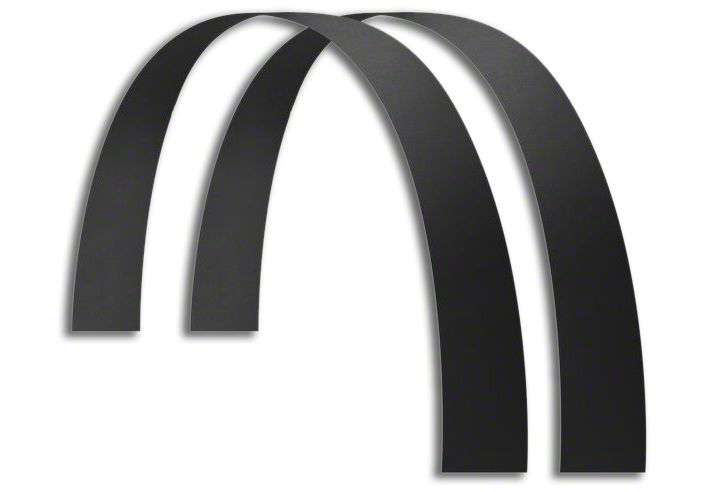

How to Install Husky 6 in. Wide Long John Flares - 65 in. Length (07-18 Sierra 1500) on your GMC Sierra

Installation

Read all directions thoroughly prior to the installation of your Long John Flare.

1. Clean the mounting location on your vehicle and check the location of factory fasteners and factory holes that can be used to fasten the flare. We recommend using the factory locations when possible then use the provided SS self tapping screws for further retention.

2. Align the flare on the fender lip for the
amount of coverage and protection that is needed.

Note: These are general mounting guidelines and the flares can be mounted in many different ways to provide whatever coverage you deem necessary.

3. Transfer the factory hole locations to the flare mounting area. Mark the factory fasteners and other fastening locations with a small ball of clay or similar material.

4. Align the mud flap so the bottom of the flare is parallel to the ground and at your desired height. Press the flare frmly against the fender to transfer the fastening locations.

5. Drill fastening holes at the pre-marked locations in the mud flap to accommodate factory fastener size. If using supplies SS self drilling screws, drilling a small 1/8” pilot hole may help to ease installation.

6. Fasten the flare to the truck with the factory fasteners. Check that the flare is parallel with the ground before tightening.

7. Install the SS self drilling screws at the other pre-drilled locations evenly around the flare.

8. Repeat steps 1- 7 on the opposite side of the vehicle.
