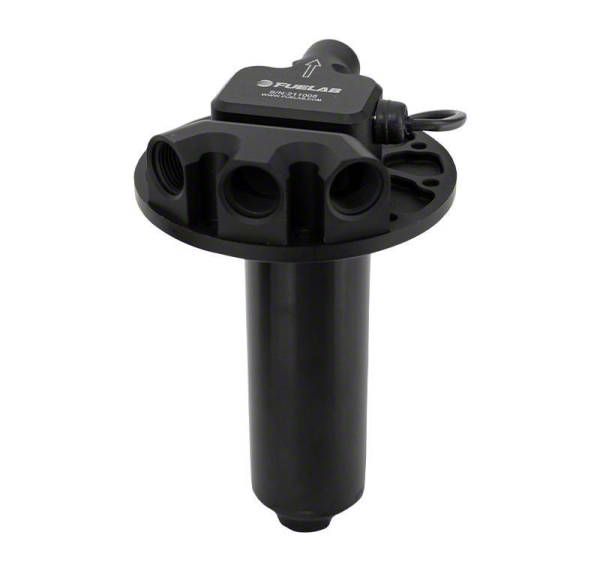

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH (Universal; Some Adaptation May Be Required)
Item S592416
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 550 LPH @ 45 PSI, 125 PSI MAX _x000D_
- 12.5V Rated Up To 1250+ HP _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel, No Problem) _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compact, Lightweight Design: Less Than 2.5 Lbs, Overall Length 8 Inches, Pump Diameter 2 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100Hz To 5000Hz _x000D_
- Backed By A Limited Lifetime Warranty _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump is designed to deliver high flow rates up to 550 liters per hour at 45 PSI, with a maximum pressure of 125 PSI. This pump efficiently supports engines producing over 1250 horsepower, providing reliable fuel delivery essential for high-performance and racing applications. It is compatible with gasoline, diesel, methanol, and ethanol fuels, enhancing versatility across various engine builds.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum finished with anodizing compliant with MIL-A-8625 Type II standards, this pump offers a durable, corrosion-resistant finish. Its compact and lightweight design features a length of 8 inches, a diameter of 2 inches, and a weight of less than 2.5 pounds. The motor employs powerful high flux density Neodymium rare earth magnets in a wet motor design without dynamic shaft seals, ensuring longevity and resilience.
_x000D__x000D_Installation. The pump is flange-mounted using a SAE 10-bolt pattern, allowing straightforward integration into fuel cells or fabricated reservoirs. Installation requires moderate mechanical skill and typically does not involve complex modifications or drilling.
_x000D__x000D_Warranty. This pump is protected by a limited lifetime warranty, offering assurance of its quality and performance.
_x000D__x000D_Application. Fits universal installations; some adaptation may be required to accommodate specific setups or mounting configurations.
Fuelab 93903
