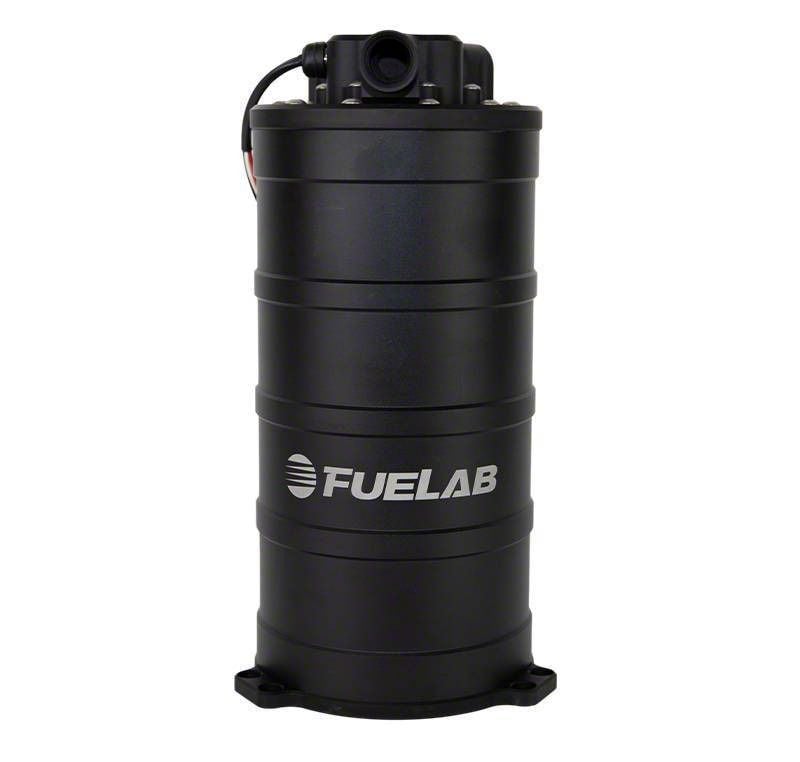

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item S592379
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Allows High Fuel Flow Output With Minimal Modifications To The OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated To Flow 625lph At 45psi, 125psi Max
        • _x000D_
      • Integrated Controller With PWM Speed Control
        • _x000D_
      • Billet Aluminum And O-ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump And Racing Gasoline, And E85
        • _x000D_
      • Return Line Required To Return Excess Fuel Back To The Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed By A Limited Lifetime Warranty
        • _x000D_
      • Compatible With Most Aftermarket ECU's With PWM Output Frequency From 100Hz To 5000Hz Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, Megasquirt
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE FUEL SURGE TANK SYSTEM. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall delivers consistent high fuel flow while minimizing fuel slosh under demanding driving conditions. Designed to provide a steady supply of fuel, it supports vehicles with up to 1500 horsepower by maintaining fuel availability during high-G turns and acceleration. This system is essential for maximizing engine performance and reliability.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed from billet aluminum with precision O-ring sealing, this surge tank offers durability and leak-free reliability. The fuel ports utilize -8AN fittings, and the entire unit features a sleek, machined finish reflecting quality craftsmanship. Its compact 290mm height allows it to fit into various engine bays with minimal space constraints.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with minimal modifications needed to the factory fuel tank or module. While a return line is required, the system does not require drilling, making integration into existing fuel setups easier.

      _x000D__x000D_

      WARRANTY. This fuel surge tank system is backed by a limited lifetime warranty, providing long-term assurance of quality and performance.

      _x000D__x000D_

      APPLICATION. Designed for universal fitment; some adaptation may be required to fit specific vehicles or configurations.

      Fuelab 61714
