Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find for your Ram 3500

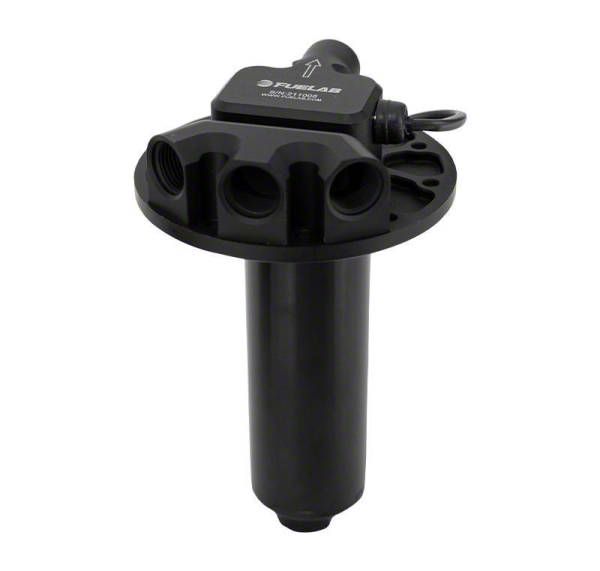

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item SHR59650
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45PSI, 125PSI MAX Operating Pressure _x000D_
- 13.5V Rated Up To 850HP _x000D_
- Compatible With Gasoline, Diesel, Methanol And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals _x000D_
- Compact Lightweight Design, Less Than 2.5lbs _x000D_
- Overall Length 8 Inches, Pump Diameter 2 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Limited Lifetime Warranty Included _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH is engineered to provide reliable fuel flow for high-output engines. It supports up to 850 horsepower, making it ideal for performance vehicles requiring steady and efficient fuel supply. This pump is used in various applications where precise fuel management and durability are essential.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted from billet aluminum with an anodized finish meeting MIL-A-8625 Type II standards, this pump combines strength and corrosion resistance. Its compact and lightweight design, weighing less than 2.5 lbs with dimensions of 8 inches in length and 2 inches in diameter, makes it suitable for in-tank mounting in confined spaces.
_x000D__x000D_INSTALLATION. Installation involves mounting using the SAE 10-bolt flange pattern, facilitating straightforward integration with fuel cells or fabricated reservoirs. The process is user-friendly and typically does not require extensive modifications or drilling.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty for added peace of mind.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required to accommodate specific setups or vehicle configurations.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
