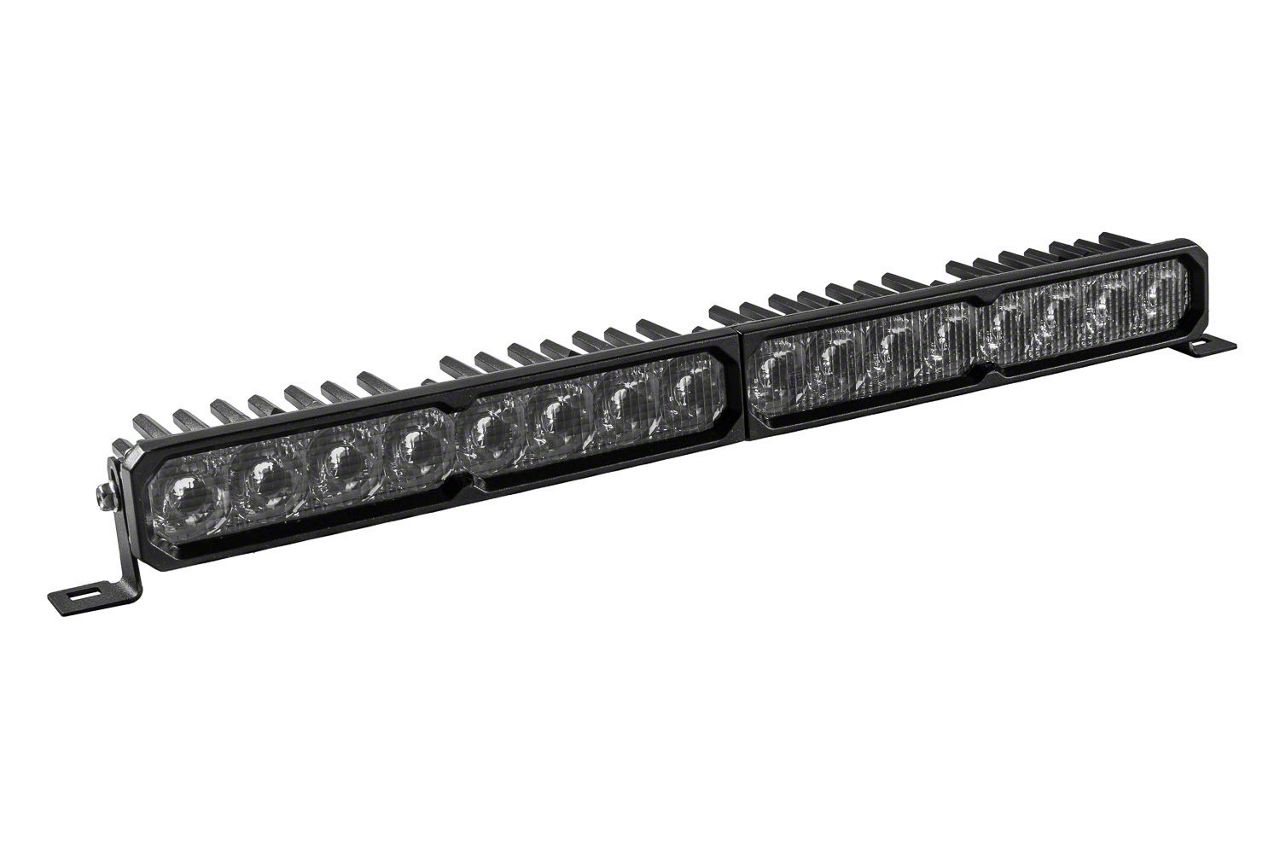

Diode Dynamics SS20 Sport Single Row LED Light Bar with SmartSelect Backlight; White Driving (Universal; Some Adaptation May Be Required)

Item SSD69297
Product Image
Our Price

$449.95

Military, Medical & First Responders $22.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR optics for maximum efficiency and optimized output.
      • Upgraded beam patterns engineered for real-world performance.
      • Modern welcome sequence and selectable backlight with SmartSelect technology.
      • Available in Sport, Pro, and Max power levels.
      • Durable aluminum housing with ASTM-standard powdercoat finish for long-lasting protection.
      • Built for extreme conditions with IP69K waterproof rating and high-pressure resistance.
      • Limited lifetime warranty included for customer confidence.
      • Engineered and manufactured in the USA using global materials.
      • Beam patterns include Combo/Driving (60°x30°), SAE Driving (20°x12°), Flood (100°x80°), and Spot (8°x8°).
      • Color temperature rated at 6000K (Cool White) for crisp illumination.
      • Power consumption: Sport at 76.5 Watts, Pro at 105 Watts.
      • Operating voltage range from 9 to 30 Volts.
      • Current draw at 12.8V: Sport 5.98 Amps, Pro 8.20 Amps.
      • Polarity specific electrical setup for correct installation.
      • Operating temperature range from -40°C to 85°C (-40°F to 185°F).
      • Uses Osram Ostar Projection Compact and Lumileds automotive-grade LED emitters.
      • Features Deutsch DT input connector for secure connections.
      • Materials include aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, and stainless steel brackets.
      • Passive cooling implemented through heatsink design for reliable thermal management.
      • Product dimensions: 2.01 inches x 20.24 inches x 2.37 inches.
      • Includes one LED light bar, one wire pigtail, and a universal bracket set.
      • Fits universal applications; some adaptation may be required depending on vehicle.

      Description

      Innovative Lighting Solution. The Diode Dynamics SS20 Sport Single Row LED Light Bar with SmartSelect Backlight and White Driving delivers superior illumination using high-intensity automotive-grade LEDs combined with advanced optics. Designed for optimized light output and precise beam control, this light bar enhances visibility for off-road and driving situations by providing both distance and wide-area illumination in a compact and durable package, essential for safety and performance.

      Construction and Appearance. This light bar is housed in a tough aluminum casing finished with an ASTM-standard powdercoat for excellent protection against harsh environmental conditions. It incorporates polycarbonate lenses and high-quality aluminum and copper PCBs to ensure efficient heat dissipation, while stainless steel brackets provide sturdy support and a professional, rugged appearance suited for demanding automotive environments.

      Installation. Installation is straightforward using a basic toolset and typically takes between 30 and 60 minutes. The universal bracket system reduces the need for drilling, offering adaptable mounting options to accommodate a wide range of vehicles with possible minor customization.

      Warranty. This product includes a limited lifetime warranty, providing assurance of long-term reliability and confidence in performance.

      Application. Engineered for universal fitment, this LED light bar may require some adaptation depending on the vehicle and mounting location. It offers flexible installation options suitable for a broad array of automotive lighting needs.

      Diode Dynamics DD8217
