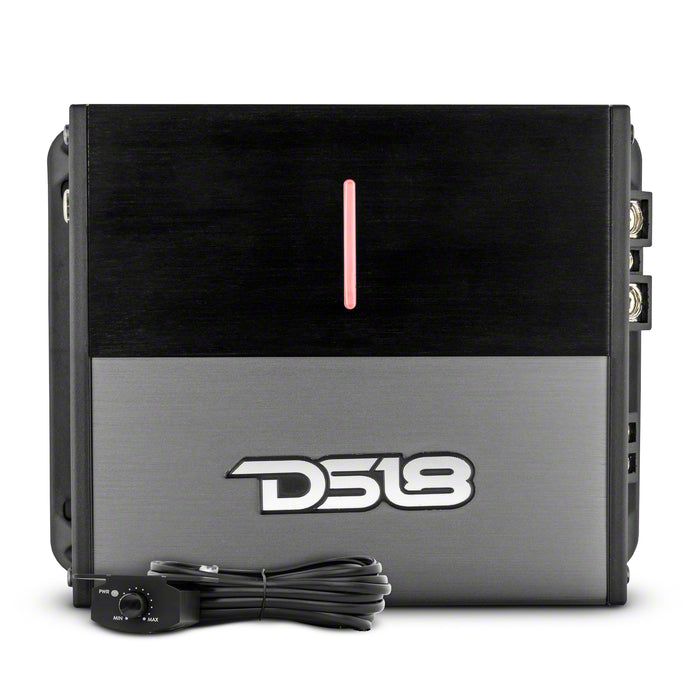

DS18 ION Compact Full Range 1-Channel Amplifier; 600 Watts (Universal; Some Adaptation May Be Required)

Item SSD48308
Our Price

$203.95

Military, Medical & First Responders $10.20 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 1 Channel Full Range
      • _x000D_
      • Class D
      • _x000D_
      • 1 - 4 Ohm Stable
      • _x000D_
      • 1 X 600 Watts @ 1 Ohm
      • _x000D_
      • Power / Clip / Protection Indicator
      • _x000D_
      • Compact
      • _x000D_
      • Total Watts Peak 1800W
      • _x000D_
      • RMS Power @ 4 Ohm 200W
      • _x000D_
      • RMS Power @ 2 Ohm 400W
      • _x000D_
      • RMS Power @ 1 Ohm 600W
      • _x000D_
      • Frequency Response 10Hz-20KHz
      • _x000D_
      • Signal To Noise Ratio >95dB
      • _x000D_
      • Efficiency @ 4 Ohm 88%
      • _x000D_
      • Damping Factor 210
      • _x000D_
      • Input Impedance 27Kohms
      • _x000D_
      • Total Harmonic Distortion 0.01%
      • _x000D_
      • Low Level Input Range 0.2-6V
      • _x000D_
      • High Level Input Yes
      • _x000D_
      • Selectable X-Over Band-Pass
      • _x000D_
      • X-Over Filter Range HP 15Hz-1KHz / LP 40Hz-20KHz
      • _x000D_
      • Bass Boost Range 0~12dB
      • _x000D_
      • Bass Boost Frequency 45Hz
      • _x000D_
      • Amplifier Class Digital
      • _x000D_
      • Amplifier Type Full-Range Monoblock
      • _x000D_
      • Minimum Impedance 1 Ohm
      • _x000D_
      • LED Indicator Power / Protect / Clipping
      • _x000D_
      • Power Input Terminal Size 4 AWG
      • _x000D_
      • Fuse Size 80A external
      • _x000D_
      • Remote Level Control Yes
      • _x000D_
      • Cooling Fan No
      • _x000D_
      • Thermal Protection Yes
      • _x000D_
      • Over-Load Protection Yes
      • _x000D_
      • DC Output Protection Yes
      • _x000D_
      • Short Circuit Output Protection Yes
      • _x000D_
      • Voltage Input Protection Yes
      • _x000D_
      • Clipping Protection Yes
      • _x000D_
      • Body Color Finish Aluminum Black Silver
      • _x000D_
      • Hi-Level Speaker Connector Yes
      • _x000D_
      • Tiffany RCA Terminal Yes
      • _x000D_
      • LED Clip Indicator Yes
      • _x000D_
      • High Efficiency Micro Digital Design Yes
      • _x000D_
      • Overall Length 6.14 inches 156mm
      • _x000D_
      • Overall Width 4.72 inches 120mm
      • _x000D_
      • Overall Height 2 inches 52mm
      • _x000D_
      • Heatsink Length 4.84 inches 123mm
      • _x000D_
      • Gross Single Unit Weight 0.7Kg
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High-Power Amplification. The DS18 ION Compact Full Range 1-Channel Amplifier, delivering 600 Watts, is engineered to provide powerful and efficient amplification for automotive audio systems. It ensures precise sound reproduction, improving audio clarity through its full-range capabilities and stable performance across 1 to 4 ohm loads. This amplifier is suitable for driving subwoofers or full-range speakers with clean and robust sound output.

      _x000D__x000D_

      Construction and Appearance. Built with a durable aluminum body finished in sleek black and silver, this amplifier balances robust materials with a compact form factor. The internal components have a protective PCB coating to resist moisture corrosion and vibration, ensuring consistent reliability in challenging conditions.

      _x000D__x000D_

      Installation. Installation is simple and requires no drilling, aided by its compact size and user-friendly terminal layout. Included are remote level control and LED indicators for power, clipping, and protection, facilitating easy setup and monitoring of amplifier status.

      _x000D__x000D_

      Warranty. This amplifier comes with a 2-year warranty, offering confidence in product quality and support.

      _x000D__x000D_

      Application. Compatible with universal applications; some adaptation may be necessary to integrate it into specific vehicle audio systems.

      DS18 ION600.1D
