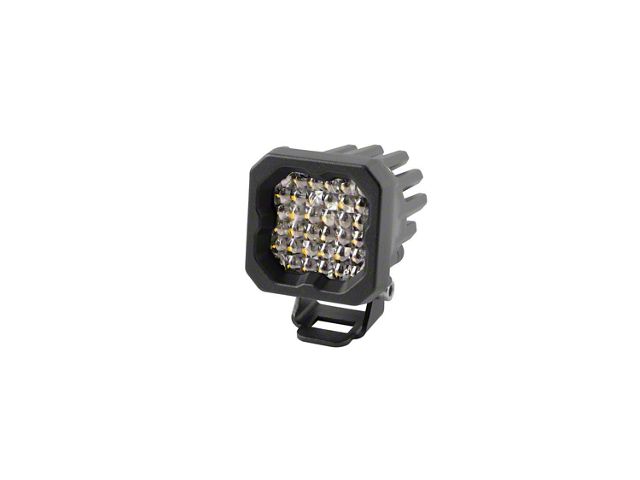

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item S543267
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Ultra-Compact, Single-LED Form Factor
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Independent Low-Power Red Accent Light
- Pin-Fin Heatsink Design for Superior Thermal Dissipation
- Integrated Deutsch-Style Connector with 4-Pin Deutsch DT Connector and 4-Wire Pigtail for Simple Wiring
- Designed, Torture-Tested, and Assembled in USA
- Custom-Engineered TIR Optics for Efficient Light Direction Without Glare
- Functional Beam Patterns with Flood Option Providing Uniform 50x50 Degree Illumination
- Mount Anywhere Capability with Multiple Mounting Kit Options Including Standard, Flush, and GoPro-Style
- Interchangeable Lens for Changing Beam Pattern or Color
- Extensively Tested for Reliability Including Temperature, Vibration, Moisture, and Corrosion Resistance
- Snap-On Covers Available to Protect Pods from Dirt and Damage
- Raw Lumens: 1450 lm
- Color Temperature: 6000K
- Flood Beam Angle: 50x50 Degrees
- Power Consumption: 15 Watts
- Operating Voltage Range: 9-16V
- Polarity Specific
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive with Pin-Fin Heatsink
- Compliance: SAE J575 Durability Test
- Intrusion Rating: IP69K Waterproof, High Pressure Resistant
- Weight: 0.4 lbs Shipped
- Fits Universal; Some Adaptation May Be Required
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood provides a compact, multi-functional lighting solution ideal for automotive, motorcycle, and UTV applications. It delivers high-power white and red beams alongside an independent low-power red accent light, suitable for reverse, running, and auxiliary lighting needs. This versatility allows it to be mounted in tight spaces where larger LED pods may not fit.
Construction and Appearance. Constructed with durable polycarbonate lenses and an aluminum casting body, the pod features a pin-fin heatsink design to ensure efficient passive cooling. It incorporates a rugged rubber gasket for protection against the elements and is finished to withstand harsh conditions, meeting SAE durability tests and IP69K waterproof standards for high-pressure water resistance.
Installation. Installation requires basic tools and generally takes between 30 to 60 minutes. The pod includes a universal mounting bracket and hardware, allowing straightforward mounting without drilling in most cases.
Warranty. The product comes with a limited lifetime warranty, providing long-term assurances of quality and reliability.
Application. Fits universal; some adaptation may be required depending on mounting preferences and vehicle configurations.
