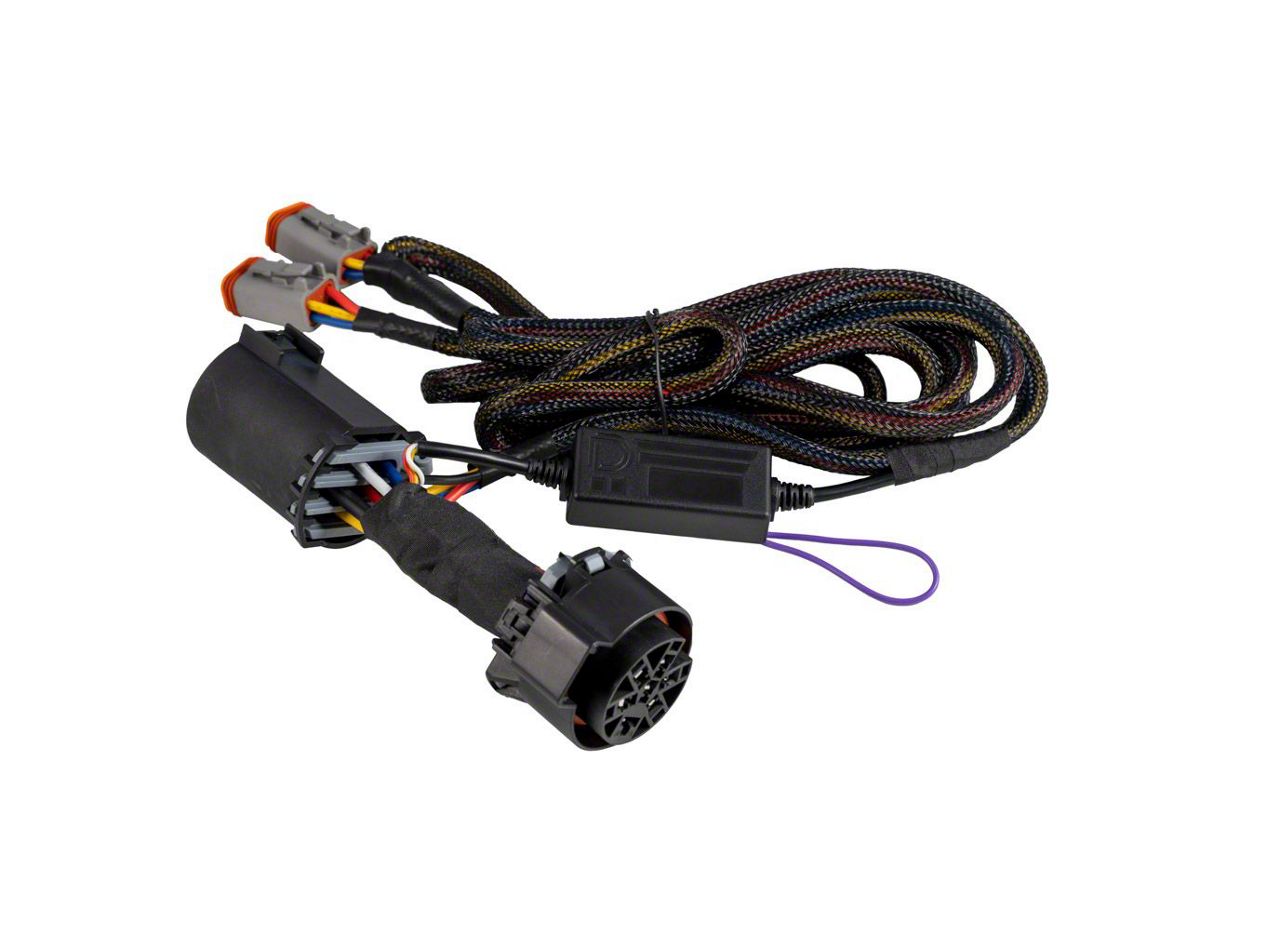

Diode Dynamics Stage Series C1R 7-pin Dual-Output Trailer Wiring Harness

Item S543264
Product Image
10 Reviews of Diode Dynamics
Our Price

$79.95 each

Military, Medical & First Responders $4.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Powers Diode Dynamics C1R LED Pods
      • High Capacity 10AWG Wiring
      • Connects Directly to Trailer Hitch Wiring for Simple, Everyday Operation of LED Pods
      • Dual Deutsch DT Output Connectors
      • Easy Operation with Factory Tail Lights, Acting as Additional Red Running Light, Fourth Brake Light, and High-Power Backup Light in Reverse
      • Supports SafetyStrobe Feature of C1R LED Pods
      • Length of 99.5 Inches
      • Operating Voltage Ranges from 9 to 16V
      • Operating Temperature -40°C to 85°C (-40°F to 185°F)
      • Input Connector Is Deutsch DT
      • Unit Weight and Product Weight Are 0.68 lbs
      • Shipped Weight Is 0.7 lbs
      • Fits Vehicles with a Round 7-Pin Trailer Style Connector That Disconnects from the Rear of the Bumper

      Description

      Versatile Lighting Harness. The Diode Dynamics Stage Series C1R 7-pin Dual-Output Trailer Wiring Harness is designed to integrate seamlessly with C1R LED pods, allowing drivers to enhance their vehicle lighting with added running, brake, and reverse lights through a single connection. It simplifies the wiring process by connecting directly to the factory trailer wiring and automatically manages different light outputs for improved vehicle visibility and safety.

      Construction and Appearance. This harness features a high-capacity 10AWG wiring setup with durable components built to withstand temperatures from -40°C to 85°C (-40°F to 185°F). It utilizes Deutsch DT connectors for reliable and secure connections. The harness is coated and constructed for longevity and consistent performance in demanding automotive environments.

      Installation. Installation is straightforward and requires no additional tools or modifications, typically completed within 10 to 20 minutes. It is designed to fit most vehicles equipped with a compatible 7-pin round trailer connector, making it accessible for daily users and professionals alike.

      Warranty. Includes a 3-year replacement limited warranty ensuring product reliability and customer peace of mind.

      Application. Fits vehicles that have a round 7-pin trailer style connector that disconnects from the rear bumper.

      Diode Dynamics DD4136

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 20 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Trailer Wiring Harness
