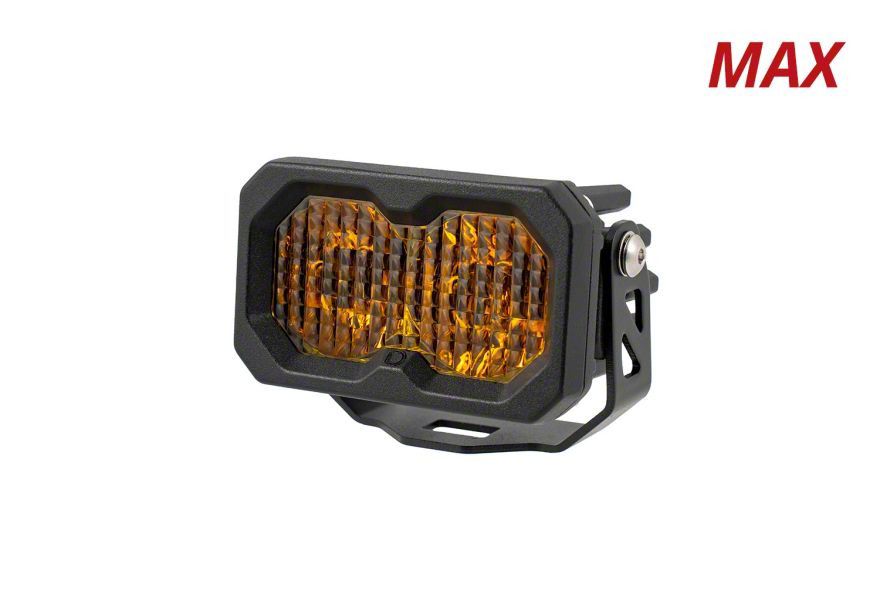

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item S596239
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design for Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics for Maximum Output
        • _x000D_
      • Up to 95% More Power Than C2 1.0
        • _x000D_
      • Available in Sport, Pro, and New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting to Dial In Your Setup
        • _x000D_
      • Link Multiple Pods with CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made in USA with Global Materials
        • _x000D_
      • Raw Lumens of 3,960 Lm
        • _x000D_
      • Color Temperature of 3000K
        • _x000D_
      • Power Consumption: Main Beam 30 Watts, Backlight 0.38 Watts
        • _x000D_
      • Operating Voltage Range from 9 to 30V
        • _x000D_
      • Current Draw: Main Beam 2.3 Amps at 12.8V, Backlight 0.03 Amps
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature from -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • LED Emitter Uses Osram Boost HX
        • _x000D_
      • Deutsch DT Input Connector
        • _x000D_
      • Constant Current Driver Features
        • _x000D_
      • Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials
        • _x000D_
      • Passive Cooling with Pin-Fin Heatsink
        • _x000D_
      • SAE J575 Durability Compliance
        • _x000D_
      • IP69K Waterproof and High-Pressure Intrusion Ratings
        • _x000D_
      • Product Dimensions: 2 x 3.3 x 2.4 Inches
        • _x000D_
      • Unit Weight of 0.55 Pounds, Product Weight of 1.4 Pounds
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow Spot delivers intense, focused illumination ideal for various automotive lighting needs. Designed to mount in tight spaces, it enhances visibility and safety with advanced optics and high power output.

      _x000D_

      Construction and Appearance. This LED pod features a durable aluminum housing with a powder-coated finish to optimize heat dissipation. The lens is made from impact-resistant polycarbonate, with an engineered rubber gasket for waterproof sealing, ensuring reliable operation in harsh conditions.

      _x000D_

      Installation. Installation requires a basic toolset and typically takes 30 to 60 minutes. Drilling is usually not necessary due to the customizable mounting bracket system.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty for long-term assurance.

      _x000D_

      Application. Fits universal; some adaptation may be required.

      Diode Dynamics DD8119S
