Find Light Bars & Off-Road Lighting for your Sierra 1500

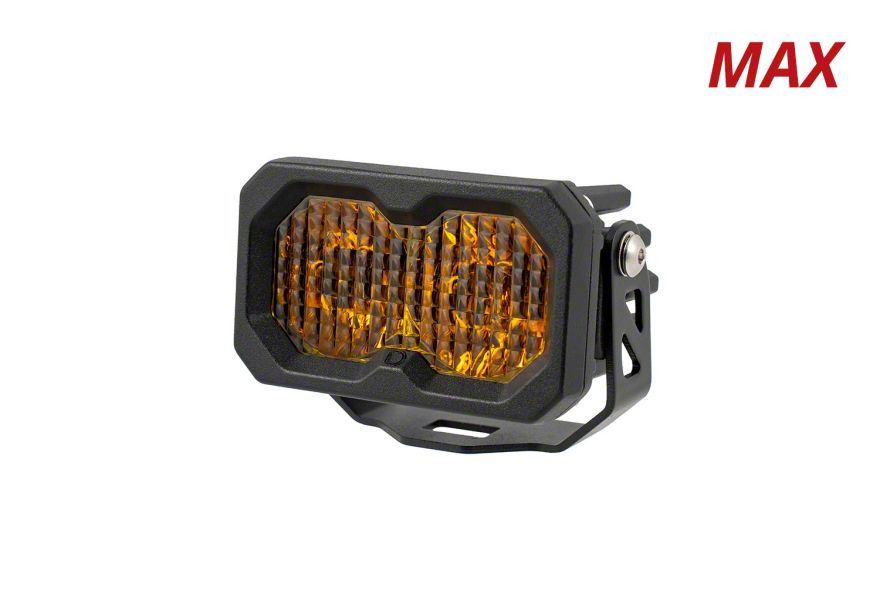

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item S596229
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output and Reduced Glare _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Compact High-Power Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving delivers intense, focused illumination in a small, versatile 2-inch package. Designed for tight mounting locations such as roof racks and bumpers, it provides exceptional brightness for both off-road and on-road applications. The amber backlight fully illuminates the TIR optic, offering a modern aesthetic paired with added visibility.
_x000D__x000D_Construction and Appearance. Built with a durable powder-coated aluminum housing and polycarbonate lens, this LED pod is engineered for long-lasting performance and effective thermal management via a copper-core circuit board and pin-fin heatsink. The amber backlight not only enhances styling but also increases visibility by fully illuminating the optics.
_x000D__x000D_Installation. Installation typically takes 30 to 60 minutes using basic automotive tools. The pod’s mounting bracket allows for adjustable angles and height without requiring drilling in most applications, providing flexible and secure mounting options.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring quality and reliability for the life of the pod.
_x000D__x000D_Application. Designed as a universal fit, this LED pod accommodates many vehicle types and mounting locations, though some adaptation may be necessary depending on the specific setup.
