Find for your Sierra 1500

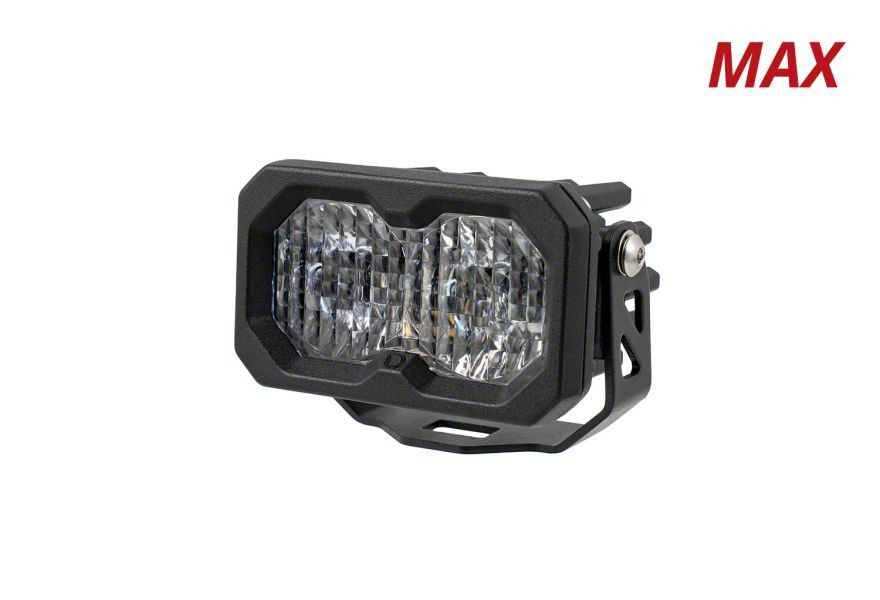

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)
Item S596225
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design Suitable For Tight Mounting Spots _x000D_
- Patented Tir Optics For Maximum Output Efficiency _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting Brackets For Precise Setup Adjustment _x000D_
- Link Multiple Pods Using CrossLink Technology _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In Usa With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (Cct): 6000K _x000D_
- Power Consumption (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage Range: 9-30V _x000D_
- Current Draw (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific Design _x000D_
- Operating Temperature Range: -40°C To 85°C (-40°F To 185°F) _x000D_
- Led Emitter: Osram Boost Hx _x000D_
- Connector Type: Deutsch Dt Input _x000D_
- Driver Features: Constant Current Driver _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling Method: Passive Cooling With Pin-Fin Heatsink _x000D_
- Compliance Ratings: Sae J575 Durability Tested _x000D_
- Intrusion Ratings: Ip69k Waterproof And High-Pressure Wash Resistant _x000D_
- Product Dimensions (Inches): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Pounds): 0.55 _x000D_
- Package Weight (Pounds): 1.4 _x000D_
- Designed For Universal Fit; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Compact Powerful Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Combo/Driving beam delivers exceptional brightness and precision illumination in a compact two-inch pod. Designed for versatile mounting locations such as roof racks, bumpers, and A-pillars, this LED pod enhances visibility with a highly focused amber backlight accent and a powerful white combo/driving beam.
_x000D__x000D_Construction and Appearance. Crafted with a durable aluminum casting and equipped with a polycarbonate lens, the pod features advanced TIR optics for optimal light control. The powder-coated finish provides corrosion resistance, while the innovative copper-core circuit board and passive pin-fin heatsink ensure superior thermal management and reliability.
_x000D__x000D_Installation. Installation is straightforward, requiring basic tools and minimal time without extensive drilling. Customizable mounting brackets allow precise aiming and adjustment to suit different vehicle setups.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, providing long-term confidence and support.
_x000D__x000D_Application. This LED pod is designed for universal fitment and may require some adaptation depending on mounting location and vehicle configuration.
Diode Dynamics DD8112S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Questions & Answers
No questions about this product yet.
Ask the First Question
