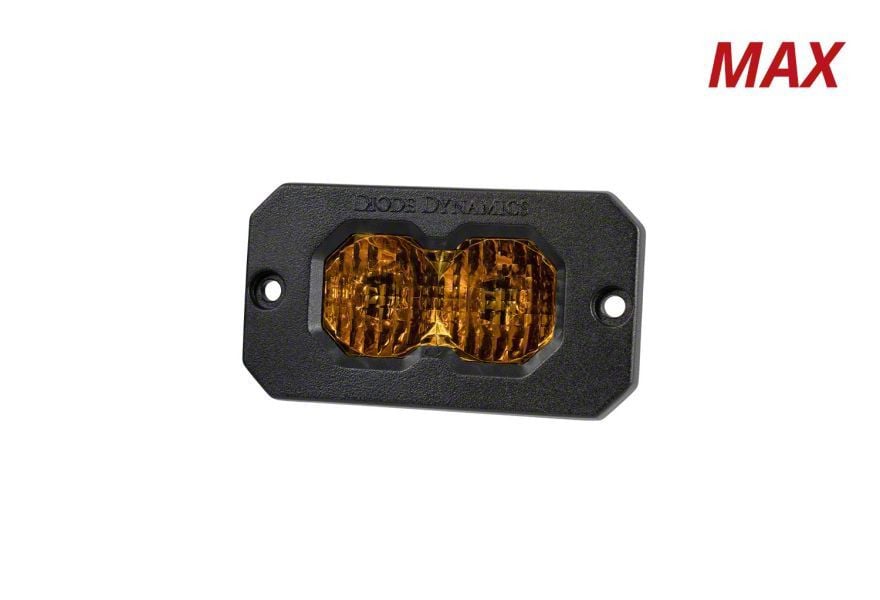

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item S596263
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and Max Power Levels (Max at 3,960 Lumens) _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature: 3000K Yellow _x000D_
- Power: Main Beam 30 Watts, Backlight 0.38 Watts _x000D_
- Operating Voltage: 9-30V _x000D_
- Current: Main Beam 2.3 Amps @ 13.2V, Backlight 0.03 Amps _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions: 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight: 0.55 Pounds _x000D_
- Product Weight: 1.4 Pounds _x000D_
- Includes One Stage Series C2 2.0 LED Pod _x000D_
- Includes One Deutsch-Style Wire Pigtail _x000D_
- Includes One Mounting Bracket and Hardware _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight and Yellow Combo/Driving beam delivers powerful, focused lighting with a compact design ideal for tight mounting spaces. It enhances visibility and safety for various on- and off-road applications, providing superior illumination with precision and intensity.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable aluminum casting with a powder-coated finish for optimal heat dissipation and corrosion resistance. It includes a polycarbonate lens sealed with a rubber gasket for reliable waterproofing and protection. The copper-core circuit board bonded to Osram Boost HX LED emitters ensures excellent thermal management and long-lasting performance.
_x000D__x000D_INSTALLATION. Installation is straightforward, typically requiring 30 to 60 minutes with basic hand tools. The included flush mount bracket enables secure, low-profile mounting on flat surfaces without the need for complex drilling or modifications.
_x000D__x000D_WARRANTY. Backed by a limited lifetime warranty, this product ensures long-term reliability and customer support.
_x000D__x000D_APPLICATION. Designed for universal fitment, this pod may require some adaptation based on the mounting surface and vehicle configuration.
